How to Deploy JavaScript QR Code Generator to Google App Engine

This article aims to share how to use the QR code plugin to implement a free online app with Google App Engine.

qr code

How to Implement QR Code Generator

<script src="js/jquery.min.js"></script>
<script src="js/jquery.qrcode.min.js"></script>
<script src="js/utf-8.js"></script>
  • Create a text input, a button, and an area for QR code display.
<input type="text" id="text" placeholder="www.dynamsoft.com">
<button onclick="generate()">Try it</button>
<div id="output"></div>
  • Add JS code for button event.
function generate()
{
	jQuery(function(){
		var canvas = document.querySelector("canvas");
		if (canvas != null && canvas.parentNode) {
			canvas.parentNode.removeChild(canvas);
		}
		var text = document.getElementById("text");
		jQuery('#output').qrcode(Utf8.encode(text.value));
		text.value = "";
	})
}
  • You can run it now.

How to Deploy the App to Google App Engine

  • Visit Google App Engine Dev Center.

  • There are four programming languages supported. I would like to pick PHP.

  • Download and install PHP SDK.

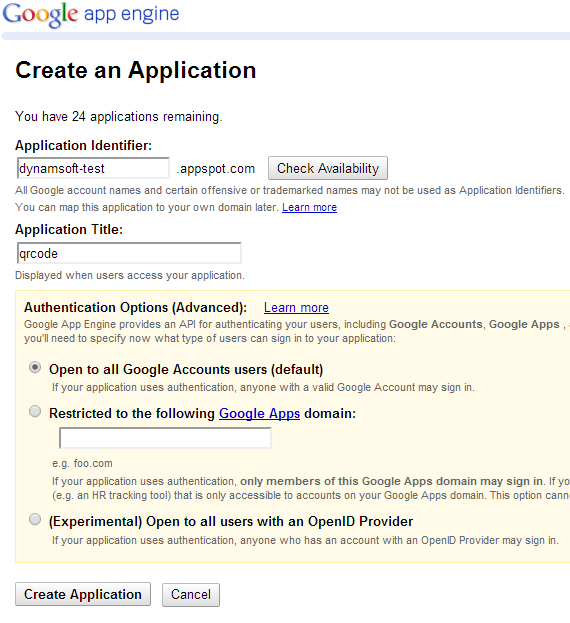

  • Create a new application on Google App Engine.

application

  • Change the qrcode.html to qrcode.php.
  • Create a configuration file named app.yaml with the following contents:
application: dynamsoft-test
version: 1
runtime: php
api_version: 1

handlers:
- url: /stylesheets
  static_dir: stylesheets

- url: /js
  static_dir: js

- url: /.*
  script: qrcode.php
  • Modify the source code for loading css and scripts:
<link type="text/css" rel="stylesheet" href="/stylesheets/main.css" />
<script src="/js/jquery.min.js"></script>
<script src="/js/jquery.qrcode.min.js"></script>
<script src="/js/utf-8.js"></script>
  • In the command line tool, type in python google_appengine/dev_appserver.py qrcode/
  • Visit http://localhost:8080/ to check your app.
  • If there is no error, you can upload the project to Google App Engine by the command appcfg.py update qrcode/

Now, you can visit the app domain to have fun.
