How to Use JavaScript to Save Canvas Data in Chrome

In HTML5, there is a new tag <canvas>, which is used to draw graphics via JavaScript. In this tutorial, I would like to share how to draw images on canvas, and how to save the canvas data to local disk by clicking button.

Dynamsoft Barcode Reader SDK
Ads Powered by Dynamsoft

Draw Images on Canvas

To develop web application, I prefer using Aptana Studio which contains a built-in web server.

Now, let’s create a basic web project which includes only a default index.html file.

aptana studio

Open index.html and add a <img> tag in <body>.

<img src="dynamsoft_logo_black.png" id="img" width="73" height="73" alt="dynamsoft"/>

Below the image, add a <canvas>.

<canvas width="73" height="73" id="canvas">canvas</canvas>

Create a button to trigger click event.

<button type="button" onclick="saveImage()">save image</button>

Draw the canvas when the page is finished loading.

<script type="text/javascript">
			window.onload = function() {
				var canvas = document.getElementById("canvas");
				var ctx = canvas.getContext("2d");
				var img = document.getElementById("img");
				ctx.drawImage(img, 0, 0);
			}
</script>

Run the project to see what we have done so far.

 GUI

Save Canvas Data to Local Disk

Finally, we can use following code to popup a dialog for saving the canvas data.

var canvas = document.getElementById("canvas");
document.location.href = canvas.toDataURL("image/png").replace("image/png", "image/octet-stream");

Both Chrome and Firefox support the method, whereas they behave differently.

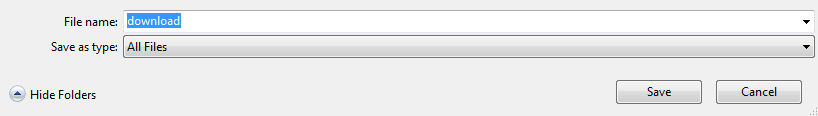

Chrome

Chrome

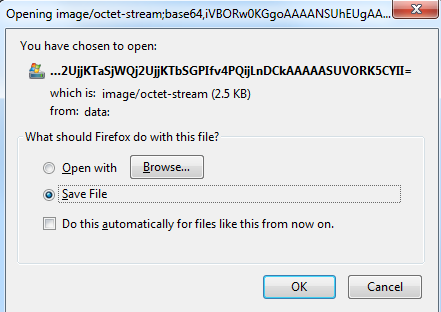

Firefox

Firefox

The problem is that we cannot programmatically set the file name and type.

Fortunately, there is an alternative in Chrome.

var link = document.createElement('a');
link.download = "test.png";
link.href = canvas.toDataURL("image/png").replace("image/png", "image/octet-stream");;
link.click();

Full code:

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
"http://www.w3.org/TR/html4/loose.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
	<head>
		<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
		<title>Save Image</title>
	</head>
	<body>
		<h1>Save Image</h1>
		<img src="dynamsoft_logo_black.png" id="img" width="73" height="73" alt="dynamsoft"/>
		<canvas width="73" height="73" id="canvas">canvas</canvas>
		<script type="text/javascript">
			window.onload = function() {
				var canvas = document.getElementById("canvas");
				var ctx = canvas.getContext("2d");
				var img = document.getElementById("img");
				ctx.drawImage(img, 0, 0);
			}
		</script>

		<button type="button" onclick="saveImage()">save image</button>
		<script type="text/javascript">
			function saveImage() {
				var ua = window.navigator.userAgent;

				if (ua.indexOf("Chrome") > 0) {
					// save image without file type
					var canvas = document.getElementById("canvas");
					document.location.href = canvas.toDataURL("image/png").replace("image/png", "image/octet-stream");

					// save image as png
					var link = document.createElement('a');
    				link.download = "test.png";
    				link.href = canvas.toDataURL("image/png").replace("image/png", "image/octet-stream");;
    				link.click();
				}
				else {
					alert("Please use Chrome");
				}
			}
		</script>
	</body>
</html>

You can download the source code – SaveImage. If you have any questions, please feel free to contact me at {Desmond at Dynamsoft dot com}.

7 thoughts on “How to Use JavaScript to Save Canvas Data in Chrome

  1. The other day, while I was at work, my cousin stole my iphone and tested to see
    if it can survive a 30 foot drop, just so she can be a youtube sensation. My apple ipad is now destroyed and
    she has 83 views. I know this is completely off topic but I had
    to share it with someone!

  2. I had this problem on chrome only and the problem was the filesize not “toDataURL” If so, you will need to workaround this….perhaps using a toBlob.

  3. On big canvas i only get “Failed – Network error”. what can i use there instead of “toDataURL”?
