Making Android Smart Phone a Remote IP Camera

When you are going to purchase a new smartphone like iPhone 6 or Galaxy S5, don’t just throw your old devices away. Via socket connection, we can build a remote monitoring system with obsolete mobile devices instead of purchasing expensive Webcams or wireless cameras. In this article, I’d like to share how to connect an Android camera app to a remote server by socket, as well as how to display the camera preview frames of my mobile device on the server Window.

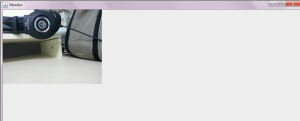

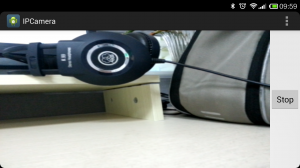

ip camera androidip camera pc


The following points helped me figure out the solution:

  1. Create a customized Android camera application, and capture preview data from Android camera.
  2. Send the preview data to a remote server frame by frame through Socket.
  3. Convert the preview data format from NV21 to RGB on the server.
  4. Draw and display RGB data in Swing component.

Android Camera – Socket Connection – Remote Monitor

To quickly build up a custom Android camera application, we don’t need to spend too much time. Google has already provided us an online tutorial Camera. Based on the source code, we just need to make a few improvements.

Create a preview callback to receive copies of preview frames:

private Camera.PreviewCallback mPreviewCallback = new PreviewCallback() {

        public void onPreviewFrame(byte[] data, Camera camera) {
            // TODO Auto-generated method stub
        	synchronized (mQueue) {
    			if (mQueue.size() == MAX_BUFFER) {

Register preview callback before starting the camera preview:

try {

        } catch (Exception e){
            Log.d(TAG, "Error starting camera preview: " + e.getMessage());

Do not forget to remove preview callback before stopping the camera:

public void onPause() {
    	if (mCamera != null) {

Use AlertDialog to initialize the IP address and port number:

private void setting() {
		LayoutInflater factory = LayoutInflater.from(this);
        final View textEntryView = factory.inflate(R.layout.server_setting, null);
        AlertDialog dialog =  new AlertDialog.Builder(IPCamera.this)
            .setPositiveButton(R.string.ok, new DialogInterface.OnClickListener() {
                public void onClick(DialogInterface dialog, int whichButton) {

                	EditText ipEdit = (EditText)textEntryView.findViewById(;
                	EditText portEdit = (EditText)textEntryView.findViewById(;
                	mIP = ipEdit.getText().toString();
                	mPort = Integer.parseInt(portEdit.getText().toString());

                	Toast.makeText(IPCamera.this, "New address: " + mIP + ":" + mPort, Toast.LENGTH_LONG).show();
            .setNegativeButton(R.string.cancel, new DialogInterface.OnClickListener() {
                public void onClick(DialogInterface dialog, int whichButton) {

                    /* User clicked cancel so do some stuff */

When clicking the start button, a socket connection will be triggered in a worker thread. We can wrap type, length, width and height in a JSON message for communication. Once the server receives the message, it will make an initialization and allocate memory for preview frames. The worker thread won’t stop sending preview frames until the stop button is pressed:

	    mSocket = new Socket();
	    mSocket.connect(new InetSocketAddress(mIP, mPort), 10000);
	    BufferedOutputStream outputStream = new BufferedOutputStream(mSocket.getOutputStream());
	    BufferedInputStream inputStream = new BufferedInputStream(mSocket.getInputStream());

	    JsonObject jsonObj = new JsonObject();
            jsonObj.addProperty("type", "data");
            jsonObj.addProperty("length", mCameraPreview.getPreviewLength());
            jsonObj.addProperty("width", mCameraPreview.getPreviewWidth());
            jsonObj.addProperty("height", mCameraPreview.getPreviewHeight());

			byte[] buff = new byte[256];
			int len = 0;
            String msg = null;

            while ((len = != -1) {
                msg = new String(buff, 0, len);

                // JSON analysis
                JsonParser parser = new JsonParser();
                boolean isJSON = true;
                JsonElement element = null;
                try {
                    element =  parser.parse(msg);
                catch (JsonParseException e) {
                    Log.e(TAG, "exception: " + e);
                    isJSON = false;
                if (isJSON && element != null) {
                    JsonObject obj = element.getAsJsonObject();
                    element = obj.get("state");
                    if (element != null && element.getAsString().equals("ok")) {
                        // send data
                        while (true) {

                            if (Thread.currentThread().isInterrupted())

                else {


On the server side, use a buffer queue to cache incoming data:

public int fillBuffer(byte[] data, int off, int len, LinkedList<byte[]> YUVQueue) {
        mTotalLength += len;
        mByteArrayOutputStream.write(data, off, len);

        if (mTotalLength == mFrameLength) {

            synchronized (YUVQueue) {

            mTotalLength = 0;
            System.out.println("received file");

        return 0;

Referring to StackOverflow, we can use the following code to decode the NV21 data:

public static int[] convertYUVtoRGB(byte[] yuv, int width, int height)
            throws NullPointerException, IllegalArgumentException {
        int[] out = new int[width * height];
        int sz = width * height;

        int i, j;
        int Y, Cr = 0, Cb = 0;
        for (j = 0; j < height; j++) {
            int pixPtr = j * width;
            final int jDiv2 = j >> 1;
            for (i = 0; i < width; i++) {
                Y = yuv[pixPtr];
                if (Y < 0)
                    Y += 255;
                if ((i & 0x1) != 1) {
                    final int cOff = sz + jDiv2 * width + (i >> 1) * 2;
                    Cb = yuv[cOff];
                    if (Cb < 0)
                        Cb += 127;
                        Cb -= 128;
                    Cr = yuv[cOff + 1];
                    if (Cr < 0)
                        Cr += 127;
                        Cr -= 128;
                int R = Y + Cr + (Cr >> 2) + (Cr >> 3) + (Cr >> 5);
                if (R < 0)
                    R = 0;
                else if (R > 255)
                    R = 255;
                int G = Y - (Cb >> 2) + (Cb >> 4) + (Cb >> 5) - (Cr >> 1)
                        + (Cr >> 3) + (Cr >> 4) + (Cr >> 5);
                if (G < 0)
                    G = 0;
                else if (G > 255)
                    G = 255;
                int B = Y + Cb + (Cb >> 1) + (Cb >> 2) + (Cb >> 6);
                if (B < 0)
                    B = 0;
                else if (B > 255)
                    B = 255;
                out[pixPtr++] = 0xff000000 + (B << 16) + (G << 8) + R;

        return out;

Create BufferedImage for rendering in Swing component:

BufferedImage bufferedImage = null;
int[] rgbArray = Utils.convertYUVtoRGB(data, mWidth, mHeight);
bufferedImage = new BufferedImage(mWidth, mHeight, BufferedImage.TYPE_USHORT_565_RGB);
bufferedImage.setRGB(0, 0, mWidth, mHeight, rgbArray, 0, mWidth);
public void paint(Graphics g) {
        synchronized (mQueue) {
        	if (mQueue.size() > 0) {
        		mLastFrame = mQueue.poll();
        if (mLastFrame != null) {
        	g.drawImage(mLastFrame, 0, 0, null);
        else if (mImage != null) {
            g.drawImage(mImage, 0, 0, null);

Source Code
