Linking and Loading *.dylib Files in Go Barcode Reader Modules on macOS

Mar 18, 2024

 Barcode

•  GO
•  GOLANG
•  MAC
•  BARCODE
•  QR CODE
•  DYLIB

In previous articles, we developed a Go barcode reader module integrating the Dynamsoft Barcode Reader C/C++ SDK for Windows and Linux. In this article, we will extend the module to support macOS.

This article is Part 3 in a 4-Part Series.

• Part 1 - Building a Go Module with C API of Dynamsoft Barcode SDK v9.x
• Part 2 - Integrating Dynamsoft's C++ Barcode SDK v10 into Go Module with a C Wrapper
• Part 3 - Linking and Loading *.dylib Files in Go Barcode Reader Modules on macOS
• Part 4 - Developing a Web Application for Reading Multiple Barcodes with Go and HTML5

Development Environment

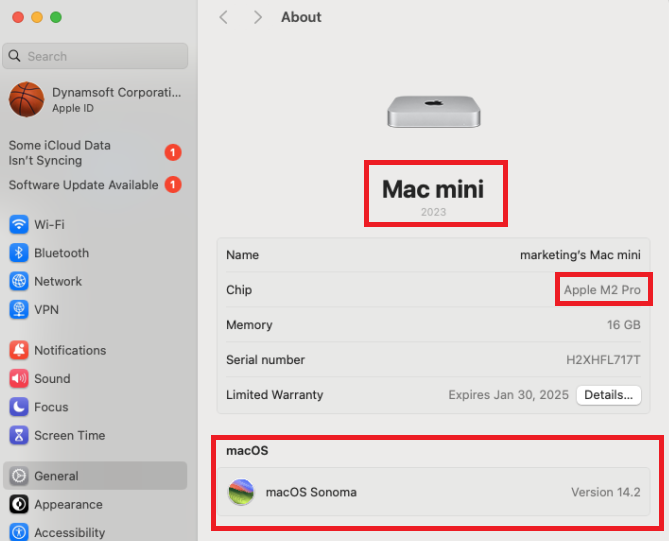

• Mac mini (M2, 2023)
• macOS Sonoma 14.2

Prerequisites

• Xcode Command Line Tools

    xcode-select --install


• Go Environment
• Dynamsoft Barcode Reader v9.x License Key

• Dynamic libraries (*.dylib) of Dynamsoft Barcode Reader v9.x for macOS.

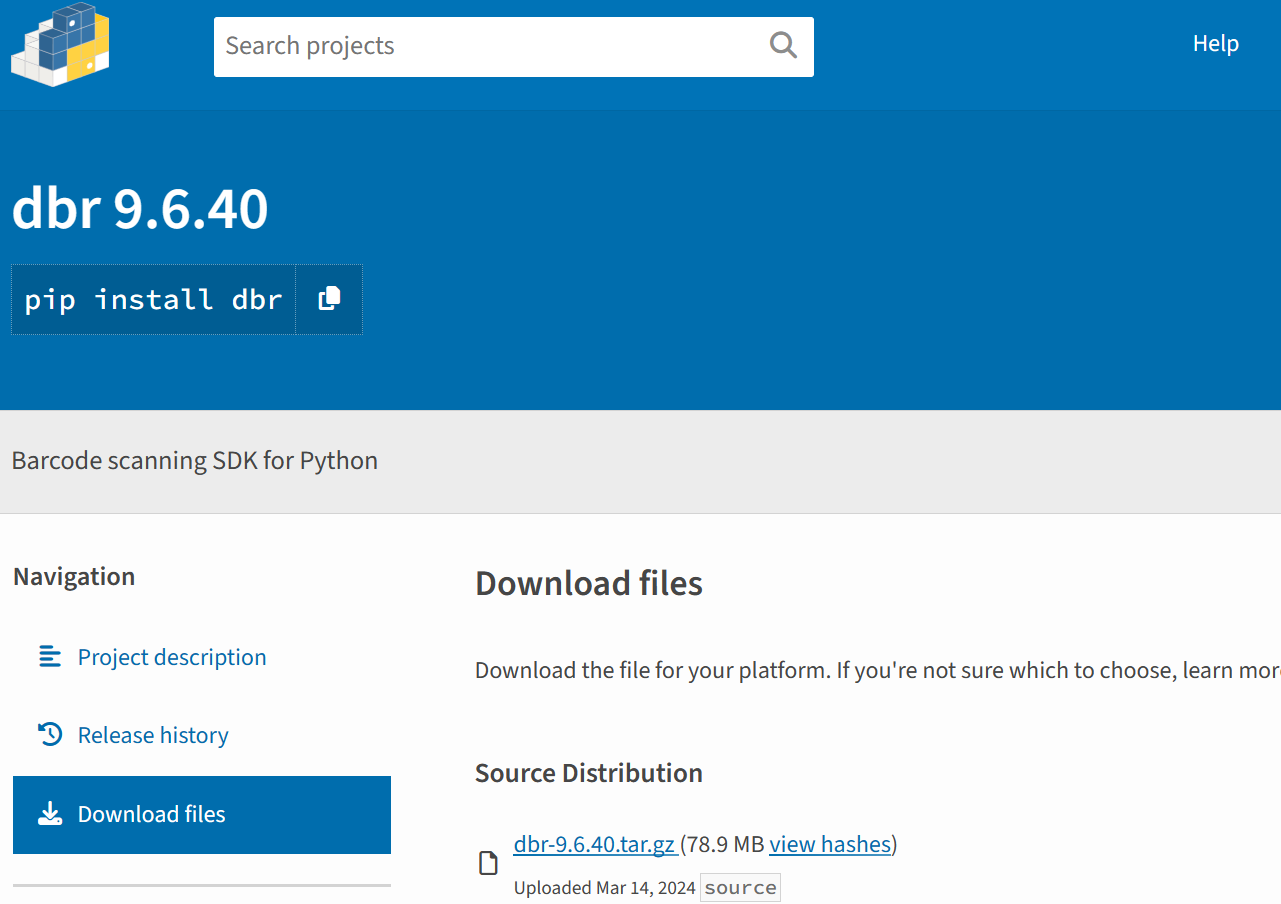

  If you download the C++ SDK package from the official website, you might notice that the macOS libraries are missing. However, there’s no need to worry. Dynamsoft’s top-tier desktop barcode SDK for Python includes all C++ dynamic libraries built for various ABIs (arm32, x86, x64, and arm64) and platforms (Windows, Linux and macOS), and these can be found in the official Python Barcode SDK.



  First, download the tar.gz file and extract it.

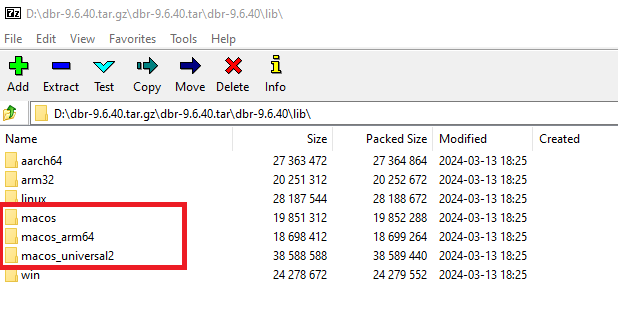

  Inside, you’ll discover three folders designated for macOS: macos, macos_arm64 and macos_universal2. The macos folder is for Intel-based Macs, macos_arm64 for Apple Silicon Macs, and macos_universal2 contains universal dynamic libraries compatible with both Intel-based and Apple Silicon Macs. To ensure our Go module works seamlessly across all Mac platforms, we will utilize the universal dynamic libraries.

Step 1: Adding *.dylib Files to the Go Module

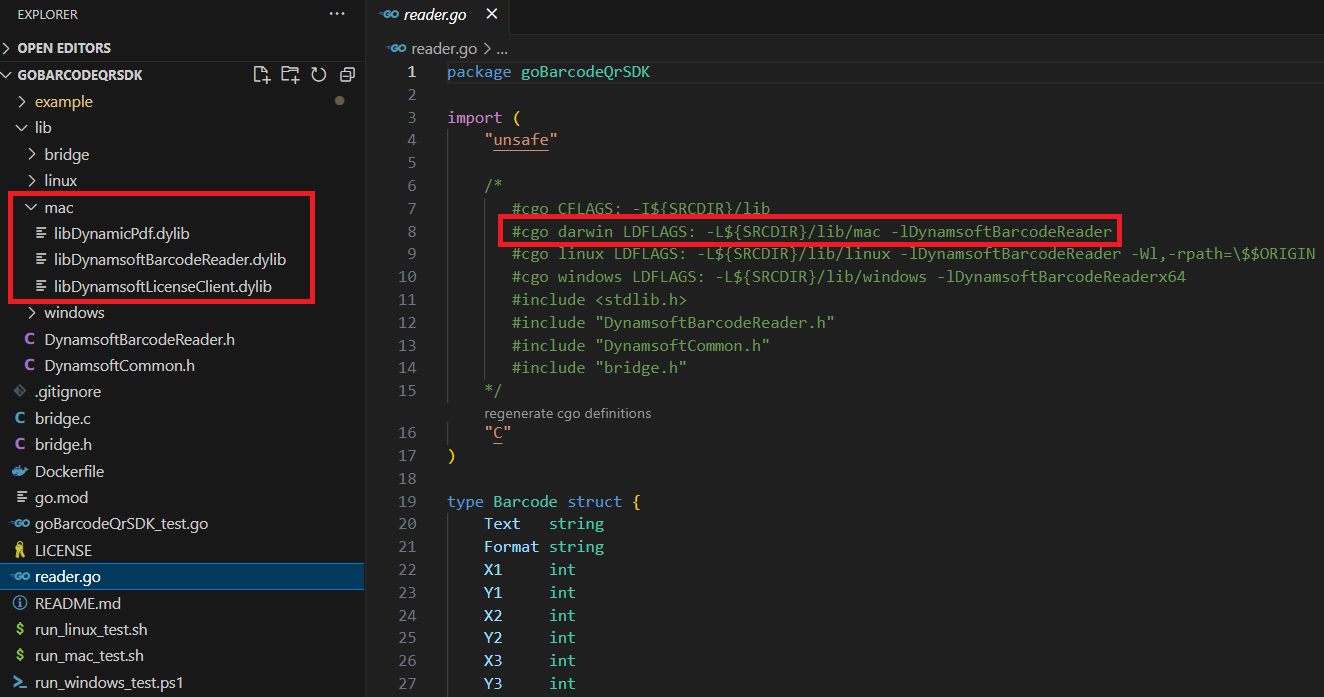

1. In the lib directory of your Go module, create a new subfolder named mac. Then, transfer libDynamicPdf.dylib, libDynamsoftBarcodeReader.dylib, and libDynamsoftLicenseClient.dylib from the macos_universal2 directory into the mac folder.



2. In the reader.go file, define macOS-specific LDFLAGS using cgo. Use darwin as the Go build tag to target macOS environments.

    package barcode

    import (
    	"unsafe"

    	/*
    	   #cgo darwin LDFLAGS: -L${SRCDIR}/lib/mac -lDynamsoftBarcodeReader
           ...
    	*/
    	"C"
    )


With these steps, your Go barcode reader module is now set up for macOS compatibility. Integrating this module into a Go application may require additional steps.

Step 2: Ensuring Go Tests Pass on macOS

As with Windows and Linux, it’s crucial to pass the Go tests to verify the functionality of the Go barcode reader module on macOS.

Running Go Tests on macOS

Execute go test in the terminal to initiate the tests.

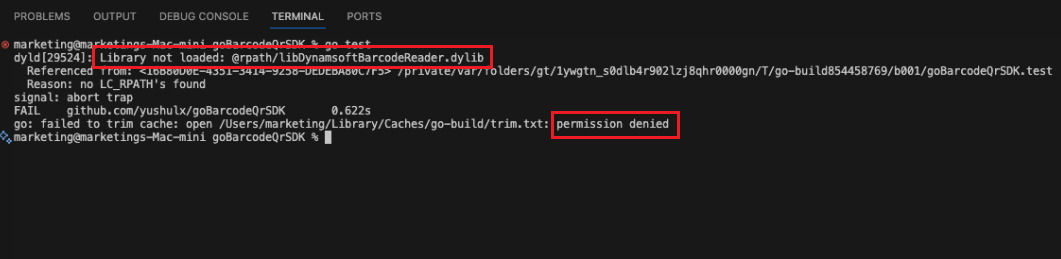

During testing, we may encounter issues such as:

• permission denied
• dyld: Library not loaded: libDynamsoftBarcodeReader.dylib

Resolving the Issues

1. Permission Denied: This issue can often be resolved by running the test with sudo:

    sudo go test


2. Dynamic Library Not Loaded: This error indicates that the dynamic linker cannot find libDynamsoftBarcodeReader.dylib. To resolve this, ensure the library path is correctly specified. Here are some potential solutions:

   • Copy the libDynamsoftBarcodeReader.dylib file into either /usr/local/lib or /usr/lib.

     ✖ Not recommended due to the requirement for root permissions to copy files into system library directories.

   • Set the DYLD_LIBRARY_PATH environment variable, similar to the approach on the Linux platform.

     ✖ Ineffective on macOS Sonoma 14.2.

   • Utilize the install_name_tool command to append the library search path to the executable.

     ✔ A viable option. We need to determine how to generate the executable file for Go testing.

What Does the go test Command Do?

When you execute go test, the Go toolchain compiles the test files (*_test.go) alongside the package under test into a temporary executable designed exclusively for running tests. Once the test binary is compiled, go test immediately executes it. Typically, this executable is deleted after the tests have completed.

However, you can manually generate and execute the test binary with the following commands:

go test -c -o testapp

./testapp

Adding Rpath to the Go Test Binary

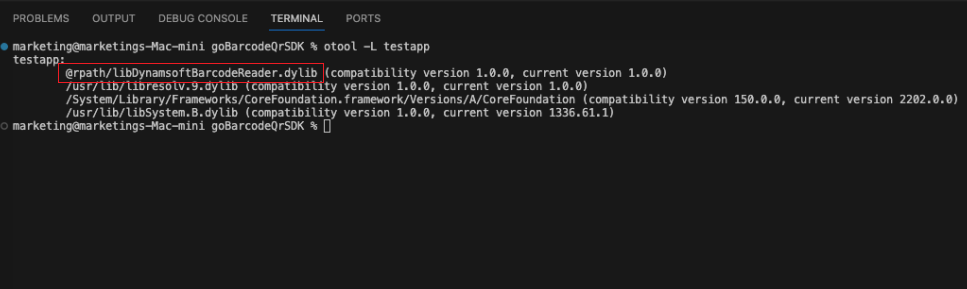

1. Utilize the otool command to inspect the library search path of the Go test binary.

    otool -L testapp

    testapp:
        @rpath/libDynamsoftBarcodeReader.dylib
        ...




   Here, @rpath acts as a placeholder that the dynamic linker (dyld) resolves at runtime, based on the actual rpath entries embedded in the executable.

2. Employ the install_name_tool command to append the library search path to the Go test binary.

    install_name_tool -add_rpath ./lib/mac testapp


   To verify whether the rpath was added successfully, execute the otool command once more.

    otool -l testapp | grep -A2 LC_RPATH


Writing a Script to Build and Run a Go Test

Create a Shell script named run_mac_test.sh to compile and execute the Go test binary as follows:

#!/bin/bash

RPATH="./lib/mac"
TARGET="testapp"

go test -c -o $TARGET

if ! otool -l $TARGET | grep -q $RPATH; then
    echo "Adding rpath $RPATH to $TARGET"
    install_name_tool -add_rpath $RPATH $TARGET
else
    echo "RPATH $RPATH already exists in $TARGET"
fi

./$TARGET

rm ./$TARGET

This script first compiles the Go test into a binary named testapp. It then checks whether the specified RPATH is already present in the binary. If not, it adds the RPATH using install_name_tool. After running the test binary, the script cleans up by removing it.

To ensure the script can be executed directly, it must be given execute permissions:

chmod +x run_mac_test.sh

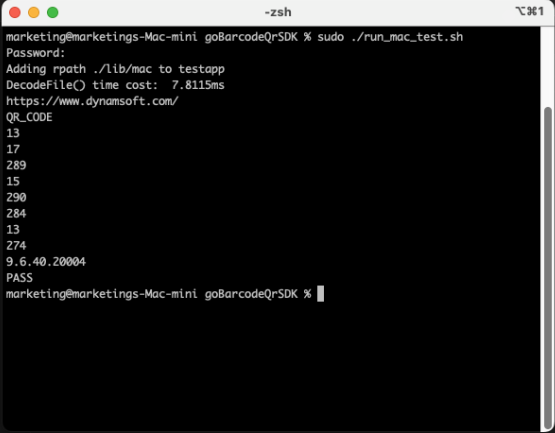

sudo ./run_mac_test.sh

Step 3: Running Go Barcode Reader Application on macOS

Using the Shell script run_mac_test.sh as a reference, we can create a new script named run_mac.sh to compile and execute the Go barcode reader application found in the example directory.

#!/bin/bash

# Save the original PATH
originalPath=$LD_LIBRARY_PATH

# Get the GOPATH
GOPATH=$(go env GOPATH)

# Find the path to the shared libraries
PACKAGE_PATH=$(find "$GOPATH/pkg/mod/github.com/yushulx" -mindepth 1 -maxdepth 1 -type d | sort -r | head -n 1)
echo "PACKAGE_PATH set to $PACKAGE_PATH"
RPATH="$PACKAGE_PATH/lib/mac"

echo "LIBRARY_PATH set to $LIBRARY_PATH"

TARGET="testapp"

go build -o $TARGET

if ! otool -l $TARGET | grep -q $RPATH; then
    echo "Adding rpath $RPATH to $TARGET"
    install_name_tool -add_rpath $RPATH $TARGET
else
    echo "RPATH $RPATH already exists in $TARGET"
fi

./$TARGET test.png

rm ./$TARGET

The RPATH is configured using the GOPATH and the package path of the latest Go barcode reader module. We utilize the go build command to compile the Go barcode reader application. Subsequently, the install_name_tool command is employed to append the library search path to the executable.

Source Code

https://github.com/yushulx/goBarcodeQrSDK
