CheckboxStyle

Syntax

interface CheckboxStyle {
	visibility?: string;
	width?: string;
	height?: string;
	border?: string;
	borderRadius?: string;
	background?: string;
	opacity?: number;
	checkMarkColor?: string;
	checkMarkLineWidth?: string;
	left?: string;
	top?: string;
	right?: string;
	bottom?: string;
	translateX?: string;
	translateY?: string;
}

Attributes

visibility

Specify whether to show the checkbox.

Supported value: hidden, visible

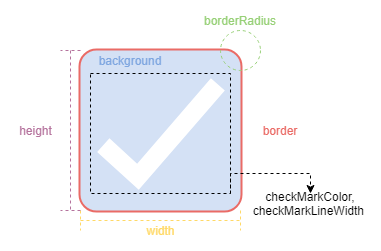

width

The width of checkbox. Supports unit px or %, for example, "10px" or "10%".

height

The height of checkbox. Supports unit px or %, for example, "10px" or "10%".

border

The border style of checkbox. It contains three parts, borderWidth, borderStyle and borderColor.

Only takes effect when set borderWidth, borderStyle and borderColor at the same time.

borderWidth only supports px unit.

borderStyle only supports dashed, solid.

Example

border: "2px dashed red",

borderRadius

The border radius of checkbox. Supports unit px or %, for example, "10px" or "10%".

background

The background style.

Example

background: "rgba(255,255,255,0)",

opacity

The opacity of the whole checkbox. The value range is [0,1], value which is greater than 1 will default to 1.

checkMarkColor

The color of check mark.

checkMarkLineWidth

The width of check mark. For example, "1px".

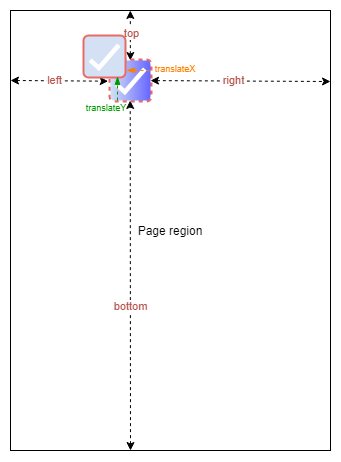

left, top, right, bottom

Position the checkbox. Supports unit px or %, for example, "10px" or "10%".

Remark

• To position a checkbox, one of left and right and one of top and bottom must be set, with the remaining positioning attributes should be set to empty strings. For example,

    left: "10%",
    top: "10%",
    right: "",
    bottom: "",


  OR

    left: "",
    top: "",
    right: "10px",
    bottom: "10px",


  OR

    left: "10px",
    top: "",
    right: "",
    bottom: "10px",


  OR

    left: "",
    top: "10%",
    right: "10%",
    bottom: "",


• If both left and right are set, only left takes effect. If both top and bottom are set, only top takes effect.

translateX

Reposition the checkbox horizontally. Supports unit px or %, for example, "10px" or "10%".

translateY

Reposition the checkbox vertically. Supports unit px or %, for example, "10px" or "10%".
