Update UI dynamically after creating the viewer

Sometimes, dynamically changing the layout is required, such as hiding specified elements or modifying the available status of elements under certain conditions. getUiConfig() and updateUiConfig() can help to achieve these requirements.

Use case

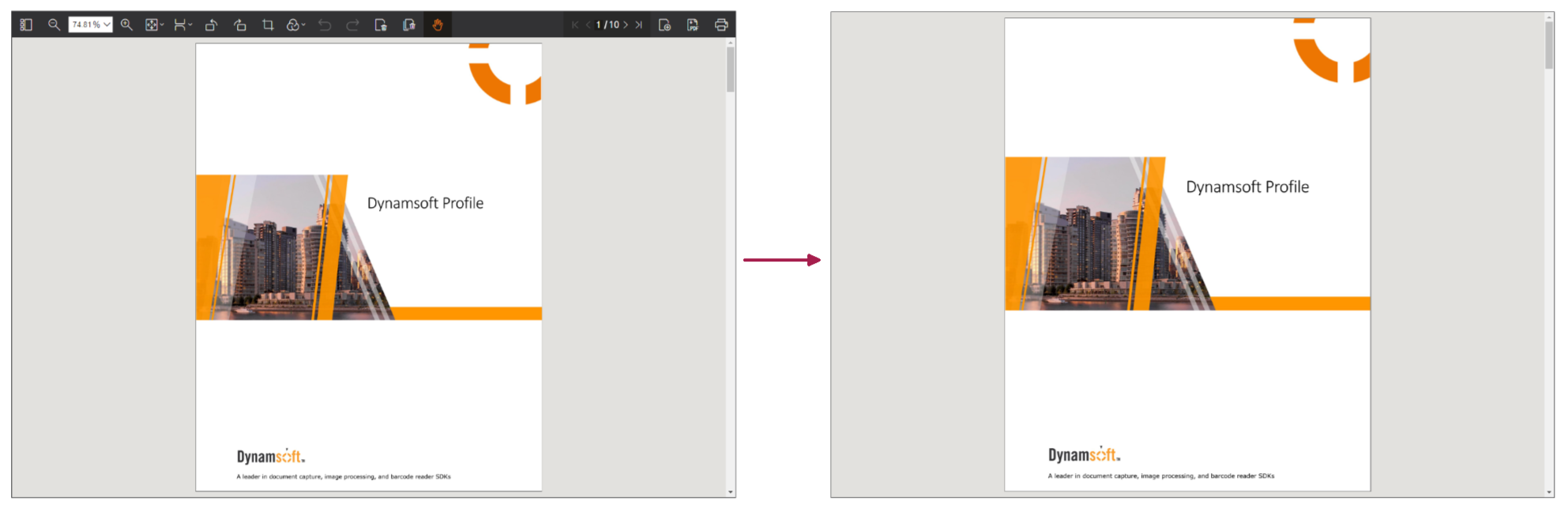

Hide the header dynamically.

• Step one: Get current UiConfig by using method getUiConfig().

    const editViewer = new Dynamsoft.DDV.EditViewer({
        container: "viewer",
    });
    const uiConfig = editViewer.getUiConfig();


• Step two: Remove the header from current UiConfig.

    uiConfig.children.splice(0,1);


• Step three: Update the revised UiConfig by using method updateUiConfig().

    editViewer.updateUiConfig(uiConfig);


Related API

• getDefaultUiConfig()
• getUiConfig() in
  • EditViewer Class
  • CaptureViewer Class
  • PerspectiveViewer Class
  • BrowseViewer Class
  • CustomViewer Class
• updateUiConfig() in
  • EditViewer Class
  • CaptureViewer Class
  • PerspectiveViewer Class
  • BrowseViewer Class
  • CustomViewer Class
