Barcode format specification

If you want to configure parameters for a certain barcode type, you can use the FormatSpecification. If the FormatSpecification configuration conflicts with the global Image Parameter, the configuration of the FormatSpecification has a higher priority. In this guide, we will introduce the following parameters and their applicable scenarios:

• BarcodeFormatIds,BarcodeFormatIds_2

  Specifies the barcode type to which the current FormatSpecification configuration applies

• MirrorMode

  Specifies the image processing mode for decoding

• RequireStartStopChars

  Specifies whether the start and end characters are required for decoding

• AllModuleDeviation

  Specifies The deviation of the specified bar size from the standard bar size

• HeadModuleRati,TailModuleRatio

  Specifies the number and size of customized bars at the head and tail of non-standard 1D barcode

• StandardFormat

  Specifies a standard barcode format for non-standard 1D character set

• AustralianPostEncodingTable

  Specifies the decoding table used by the Customer Information Field in the AustralianPost Code

• MinQuietZoneWidth

  Specifies the minimum width of the barcode quiet zone

• ModuleSizeRangeArray

  Specifies the size range of the module size to search for barcode

• Others

BarcodeFormatIds,BarcodeFormatIds_2

This parameter specifies the code type of the current FormatSpecification setting.

MirrorMode

This parameter specifies the mirroring mode for decoding. Sometimes the image and the real scene happen to be mirror images of each other. For 2D barcodes, mirroring may cause the decoding to fail. In this case, we could configure the MirrorMode to correct the situation. The default value of MirrorMode is MM_BOTH for QRCode, DataMatrix, PDF417, AZTEC, Micro QR Code, Micro PDF417, DotCode and Pharmacode Two-Track, and MM_NORMAL for other barcode types.

Below are two sample diagrams of normal and mirror QR

Normal QR

Mirror QR

Here is an JSON template where we configure the QR code type for mirroring

{
    "ImageParameter": {
        "Name": "ImageParameter1",
        "Description": "This is mirror mode demonstrate",
        "FormatSpecificationNameArray": ["FP_1"]
    },
    "FormatSpecificationArray": [
        {
            "Name": "FP_1",
            "BarcodeFormatIds": ["BF_QR_CODE"],
            "MirrorMode":"MM_MIRROR"
        }
    ],
    "Version": "3.0"
}

RequireStartStopChars

1D barcodes usually have fixed start and end characters. Normally, DBR can only decode a barcode properly if it finds the start and end characters. However, in some cases, the actual situation may be missing the start and end characters. RequireStartStopChars is designed to read these non-standard barcodes and is used to specify whether the start and end characters need to be found during 1D decoding. This parameter can be set to 0 or 1. 0 means no start and end characters are needed; 1 represents the need for a start and end.

The figure below shows a standard Code39 with start and end characters

Below is a Code39 with the same code value but no start and end characters

Here is an JSON template where we don’t need a start and end character to decode Code39

{
    "ImageParameter": {
        "Name": "ImageParameter1",
        "Description": "This is RequireStartStopChars demonstrate",
        "FormatSpecificationNameArray": ["FP_1"]
    },
    "FormatSpecificationArray": [
        {
            "Name": "FP_1",
            "BarcodeFormatIds": ["BF_CODE_39"],
            "RequireStartStopChars":0
        }
    ],
    "Version": "3.0"
}

AllModuleDeviation

This parameter specifies the width deviation value of a non-standard 1D barcode type, in moduleSize, with the default value of 0.

In some cases, it is possible for the real 1D barcode width to have an X moduleSize deviation relative to the standard barcode width. By default, DBR will not be able to handle these non-standard cases. Thus, you need to set the AllModuleDeviation to a certain deviation value when facing a non-standard barcode.

When this parameter is used, the following parameters should be used together

• FormatSpecification.BarcodeFormatIds_2
  You need to set FormatSpecification.BarcodeFormatIds_2 to NON_STANDARD_BARCODE, which indicates that you will now define a new non-standard barcode format.
• FormatSpecification.StandardFormat
  You need to set StandardFormat to a certain standard 1D barcode format, which specifics barcode format you are currently referring to as a non-standard character standard, such as BF_CODE128
• ImageParameter.BarcodeFormatIds_2
  You need to set ImageParameter.BarcodeFormatIds_2 to NON_STANDARD_BARCODE, which means you will deal with just defined non-standard barcode.

To illustrate this with a practical example, below is a standard Code128, moduleSize 2px

Next is a non-standard Code128, each bar of which is 4px (2 module size) larger than the standard bar

We can set AllModuleDeviation to 2, so that the deviation value of 2 moduleSize will be used during decoding, as a result, the barcode value will be correctly extracted. The following Json template demonstrates the complete configuration.

{
    "ImageParameter": {
        "Name": "ImageParameter1",
        "Description": "This is deviation demonstrate",
        "FormatSpecificationNameArray": ["FP_1"],
        "BarcodeFormatIds_2": ["BF2_NONSTANDARD_BARCODE"]
    },
    "FormatSpecificationArray": [
        {
            "Name": "FP_1",
            "BarcodeFormatIds_2": ["BF2_NONSTANDARD_BARCODE"],
            "StandardFormat": "BF_CODE_128",
            "AllModuleDeviation":2

        }
    ],
    "Version": "3.0"
}

HeadModuleRatio, TailModuleRatio

Normally, the start and stop characters of 1D barcodes have a standard fixed proportion, but in reality, there may also be situations where the proportion is not standard.

In this situation, If there is a fixed deviation between standard proportion and the non-standard proportion, we could try to set the value of AllModuleDeviation to customize the proportion; If there is an irregular deviation, you can customize the proportion using HeadModuleRatio and TailModuleRatio.

The following parameters are also needed to customize the head-tail proportion

• FormatSpecification.BarcodeFormatIds_2
  You need to set FormatSpecification.BarcodeFormatIds_2 to NON_STANDARD_BARCODE, which indicates that you will now define a new non-standard barcode format.
• FormatSpecification.StandardFormat
  You need to set StandardFormat to a certain standard 1D barcode format, which specifies the barcode format you are currently referring to as a non-standard character standard. In the case that BF_CODE128 is set, subset (A, B and C) needs to specify in Code128Subset.
• ImageParameter.BarcodeFormatIds_2
  You need to set ImageParameter.BarcodeFormatIds_2 to NON_STANDARD_BARCODE, which means you will deal with just defined non-standard barcode.

Here we use a non-standard Code128 for illustration. As shown in the figure below, The start character proportion is 2:1:1:3:3:1, which does not conform to the proportion of start characters as defined in the Code128 standard, and its stop character proportion is 2:3:3:2:2:2:2:3, which also does not conform to the stop character proportion.

Standard code128 with the same value is shown below

By default, DBR will not be able to read the above code128. In this case, in order to read the above non-standard code128, you could set HeadModuleRatio and TailModuleRatio as "211331" and "2332223" respectively. And set Code128Subset to "C". The complete JSON configuration is as follows

{
    "ImageParameter": {
        "Name": "ImageParameter1",
        "Description": "This is HeadModuleRatio and TailModuleRatio demonstrate",
        "FormatSpecificationNameArray": ["FP_1"],
        "BarcodeFormatIds_2": ["BF2_NONSTANDARD_BARCODE"]
    },
    "FormatSpecificationArray": [
        {
            "Name": "FP_1",
            "BarcodeFormatIds_2": [
                "BF2_NONSTANDARD_BARCODE"
            ],
            "StandardFormat":"BF_CODE_128",
            "HeadModuleRatio": "211331",
            "TailModuleRatio": "2332223",
            "Code128Subset": "C"
        }
    ],
    "Version": "3.0"
}

StandardFormat

This parameter specifies the character set of the standard barcode type referenced by the non-standard 1D character set. It should be used together with AllModuleDeviation, HeadModuleRatio, TailModuleRatio, we will not explain this parameter in detail here.

AustralianPostEncodingTable

The AustralianPost Code has a section of customer information area, which can be decoded using two standard defined decoding tables (N table, C table). This parameter can be set to specify either N table or C table for decoding. Please refer to the AustralianPostcode standard documentation for specific definitions of these two code tables.

This parameter can be set to “C” or “N” and the default value is “C”.

You also need to set FormatSpecification.BarcodeFormatIds_2 to BF2_AUSTRALIANPOST.

MinQuietZoneWidth

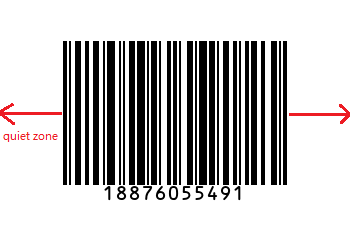

There should be enough white space on both sides of the standard barcode as a quiet area. But in reality, there may not be enough white space. In this case, we can use the MinQuietZoneWidth to set the minimum quiet area size, in ModuleSize, with a default value of 4.

Here is a sample image with a very narrow quiet zone

We can set MinQuietZoneWidth to 1 or less, as a result, the above sample image can be properly decoded.

{
    "ImageParameter": {
        "Name": "ImageParameter1",
        "Description": "This is quiet zone demonstrate",
        "FormatSpecificationNameArray":["FP_1"],
        "DeblurLevel": 1
    },
    "FormatSpecificationArray": [
        {
            "Name": "FP_1",
            "BarcodeFormatIds": ["BF_CODE_128"],
            "MinQuietZoneWidth":3
        }
    ],
    "Version": "3.0"
}

ModuleSizeRangeArray

This parameter specifies a certain modulesize range for barcode searching, barcodes which do not meet the criteria will not be decoded,

The default value is null, meaning that the moduleSize of the barcode is not limited

You can set the range to [0,0x7fffffff] in pixels.

JSON template

{
    "ImageParameter": {
        "Name": "ImageParameter1",
        "Description": "This is template demonstrate",
        "FormatSpecificationNameArray":["FP_1"]
    },
    "FormatSpecificationArray": [
        {
            "Name": "FP_1",
            "BarcodeFormatIds": [
                "BF_CODE_39"
            ],
            "ModuleSizeRangeArray":[
                {
                  "MaxValue":100,
                  "MinValue":10
                }
            ]
        }
    ],
    "Version": "3.0"
}

Others

The usage of the other parameters in FormatSpecification will be covered in more detail in other related documentation than we will expand on in this article.

• BarcodeAngleRangeArray, BarcodeBytesLengthRangeArray, BarcodeHeightRangeArray, BarcodeTextLengthRangeArray, BarcodeWidthRangeArray, BarcodeTextRegExPattern, MinResultConfidence.

Please refer to Barcode Results
