TextBoxAnnotationOptions

Syntax

interface TextBoxAnnotationOptions {
    x?: number;
    y?: number;
    width?: number;
    height?: number;
    textAlign?: string;
    textContents?: TextContent[];
    borderWidth?: number;
    borderColor?: string;
    background?: string;
    opacity?: number;
    lineDash?: number[];
    flags?: Flags;
    rotation?: number;
}

Attributes

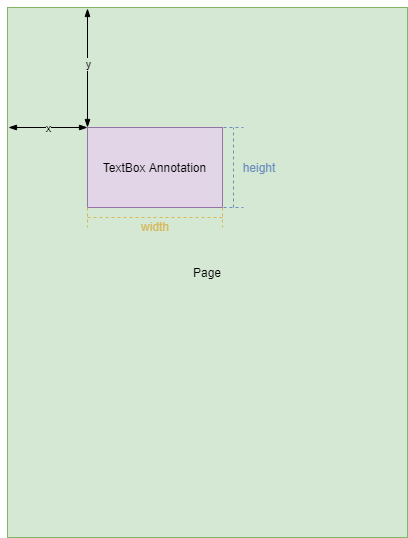

x

The x-coordinate of the upper-left corner of the text box annotation to draw. The unit is point.

Default value: 10

y

The y-coordinate of the upper-left corner of the text box annotation to draw. The unit is point.

Default value: 10

width

The width of the text box annotation to draw. The unit is point.

Default value: 150

height

The height of the text box annotation to draw. The unit is point.

Default value: 80

textAlign

The text alignment.

Supported values: left, right, center, justify

Default value: left

textContents

The text contents of the text box annotation. Please refer to TextContent.

Default value: [{content: "Insert text here",}]

borderWidth

The border width of annotation. The unit is point.

Default value: 1

borderColor

The border color of annotation.

Default value: rgb(0,0,0)

Remark

Supported string value of borderColor and background:

• Named color, for example, red, green, etc.
• HEX(#RRGGBB), for example, #ff0000, #008000, etc.
• RGB(rgb(red, green, blue)), for example, rgb(255, 0, 0), rgb(0, 128, 0), etc.
• HSL(hsl(Hue, Saturation, Lightness)), for example, hsl(0, 100%, 50%), hsl(120, 100%, 25%) ,etc.

background

The backgroud style of annotation.

Default value: '', it means no fill.

Example

background: "rgb(255,255,255)",

Remark

Supported string value of borderColor and background:

• Named color, for example, red, green, etc.
• HEX(#RRGGBB), for example, #ff0000, #008000, etc.
• RGB(rgb(red, green, blue)), for example, rgb(255, 0, 0), rgb(0, 128, 0), etc.
• HSL(hsl(Hue, Saturation, Lightness)), for example, hsl(0, 100%, 50%), hsl(120, 100%, 25%) ,etc.

If set to '', it means no fill.

opacity

The opacity of the whole annotation. The value range is [0,1], value which is greater than 1 will default to 1.

Default value: 1

lineDash

The style of text box annotation border. The unit is point.

Default value: [0, 0]

Example

lineDash: [10, 10],

flags

The flags of annotation.

Please refer to Flags.

rotation

The rotation angle of annotation.

Default value: 0

Remark

• Positive value means clockwise rotation, negative value means counterclockwise rotation.
