Configure MRZ Scanner

When developing with MRZScannerViewController, you can add configurations via the MRZScannerConfig class. This page will guide you on how to configure the settings.

Scan Document Type

Set the document type via APIs

Specifies the type of document to scan, such as ID cards or passports. It also improves the processing speed and the accuracy.

• Objective-C
• Swift

1. DSMRZScannerConfig *config = [[DSMRZScannerConfig alloc] init];
   config.documentType = DSDocumentTypePassport;


2. let config = MRZScannerConfig()
   config.documentType = [.passport]


Setup a customized template file

A template file is a JSON file that includes a series of algorithm parameter settings. It is always used to customize the performance for different usage scenarios. Contact us to get a customized template for your scanner.

1. Create a DynamsoftResources folder in the finder. Under the DynamsoftResources folder create a new folder, Templates.

2. Put your customized template json file under the Templates folder.

3. Rename the DynamsoftResources folder’s extension name to .bundle and drag the DynamsoftResources.bundle into your project on Xcode. Select Create groups for the Added folders option.

4. Specify the template file via templateFile property

   • Objective-C
   • Swift

   1. DSMRZScannerConfig *config = [[DSMRZScannerConfig alloc] init];
      config.templateFile = @"CustomizedTemplate.json";


   2. let config = MRZScannerConfig()
      config.templateFile = "CustomizedTemplate.json"


You can also use a JSON string as the template file.

Related APIs

• documentType
• templateFile

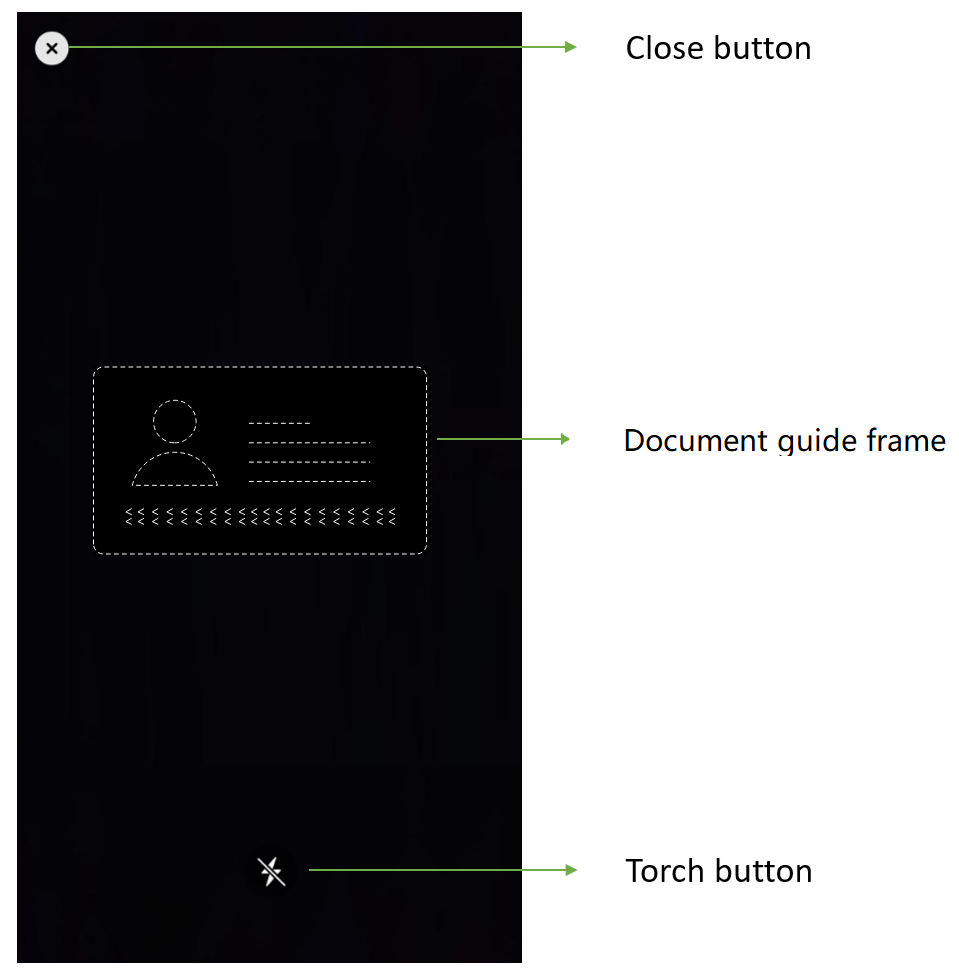

Configure the UI Elements

• Close button: Stop MRZ scanning and go back to the previous activity.
• Torch button: A clickable button that can turn on/off the torch.

• Objective-C
• Swift

1. DSMRZScannerConfig *config = [[DSMRZScannerConfig alloc] init];
   config.isCloseButtonVisible = false;
   config.isGuideFrameVisible = false;
   config.isTorchButtonVisible = false;


2. let config = MRZScannerConfig()
   config.isCloseButtonVisible = false
   config.isGuideFrameVisible = false
   config.isTorchButtonVisible = false


Related APIs

• torchButtonVisible
• closeButtonVisible

Beep

Let the app to trigger a beep sound when a MRZ is scanned successfully.

• Objective-C
• Swift

1. DSMRZScannerConfig *config = [[DSMRZScannerConfig alloc] init];
   config.isBeepEnabled = true;


2. let config = MRZScannerConfig()
   config.isBeepEnabled = true


Related API

• beepEnabled

Further Customization

If you have other customization requirements on the MRZScanner component, you can modify it with the open source code on GitHub.
