LocalizationResult

interface LocalizationResult

  • transformationMatrix: *Array*

    A transformation matrix that can transform the coordinates of the four resultPoints so that they show up correctly on the displayed image.

  • angle: number

    The angle of a barcode. Values range from 0 to 360.

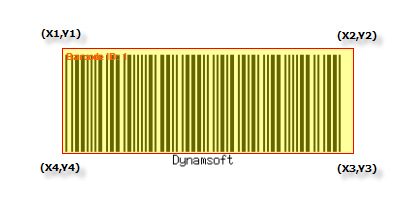

  • x1: number

    The X coordinate of the left-most point.

  • x2: number

    The X coordinate of the second point in a clockwise direction.

  • x3: number

    The X coordinate of the third point in a clockwise direction.

  • x4: number

    The X coordinate of the fourth point in a clockwise direction.

  • y1: number

    The Y coordinate of the left-most point.

  • y2: number

    The Y coordinate of the second point in a clockwise direction.

  • y3: number

    The Y coordinate of the third point in a clockwise direction.

  • y4: number

    The Y coordinate of the fourth point in a clockwise direction.

  • confidence: number

    The confidence, or accuracy, of the localization result.

  • resultCoordinateType: number

    Determines whether the coordinates of a located barcode (x1,x2,x3,etc.) are shared as pixel coordinates or as percentages of the total dimensions of the image or frame. To learn more, please refer to EnumResultCoordinateType.

localizationresult

This page is compatible for:

Version 7.5.0
