TextLineSpecification Object

Set the CharacterModel, TextLineRecModel, ImageProcessing parameters and other configurations for the specified text lines. This is the parameter that defines how the algorithm extract characters from each text lines of a LabelRecognizer task. You can leave this area empty to use the default character recognizing settings.

Parameters Summary

Example

{
    "Name" : "tls_default",
    "CharacterModelName" : "NumberLetterCharRecognition",
    "ApplicableTextLineNumbers" : "1-3",
    "CharHeightRange" : [20, 1000, 1],
    "StringLengthRange" : [3, 50],
    "StringRegExPattern" : "",
    "BinarizationModes" : [
        {
            "Mode" : "BM_LOCAL_BLOCK",
            "BlockSizeX" : 11,
            "BlockSizeY" : 11,
            "ThresholdCompensation" : 10
        }
    ],
    "GrayscaleEnhancementModes" : [
        {
            "Mode" : "GEM_GENERAL",
            "Sensitivity" : 5
        }
    ],
    "CharacterNormalizationModes" : [
        {
            "Mode" : "CNM_AUTO",
            "MorphOperation" : "Close",
            "MorphArgument" : "3"
        }
    ],
    "OutputResults" : 1
}

For a complete list of all available parameters and their detailed descriptions, see the Parameters Summary table above.

Usage Instructions

Parameter Configurations

Select CharacterModel

Select one of the CharacterModel for the text line(s) by specifying the name of the model. View CaptureVisionModel page for how to configure the models.

Select TextLineRecModel

Select one of the TextLineRecModel for the text line(s) by specifying the name of the model. View TextLineRecModel page for how to configure the models.

Set Targeting Text Lines

Parameter ApplicableTextLineNumbers defines which text lines shall apply the settings of this TextLineSpecification object.

• If ApplicableTextLineNumbers is null, all the text lines will use the default settings.
• If ApplicableTextLineNumbers is not applied to all the text lines, the remaining text lines will use the default settings.

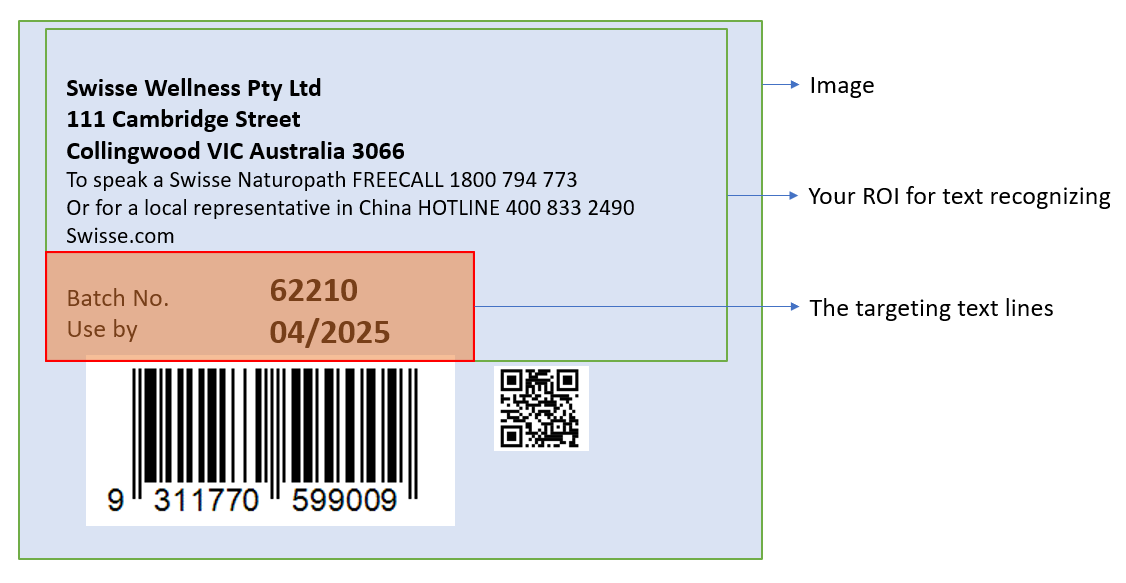

You can also specify the location of the targeting text lines with 4 point coordinates. The targeting text line is filtered based on the combination of ApplicableTextLineNumbers and area definition. For example:

You can use the following parameters to process the above image:

{
    "ApplicableTextLineNumbers" : "7,8",
    "FirstPoint" : [ 0, 60 ],
    "SecondPoint" : [ 70, 60 ],
    "ThirdPoint" : [ 70, 100 ],
    "FourthPoint" : [ 0, 100 ]
}

If your set the ApplicableTextLineNumbers as “1-8”, the text line from 1 to 6 are not recognized because they are not in the specified area.

Configure ImageProcessing Modes

GrayscaleEnhancementModes enhance the quality of the grayscale image.

BinarizationModes configurations finally reflect in the quality of the binary image. It determines how the characters are presented on the text areas before they recognized by the library. The higher quality of the binary image, the higher read rate and accuracy of the character recognition result.

CharacterNormalizationModes are additional settings that further improve the quality of characters. Generally, they are morphological transformations. You can view more about them from Image-Processing in OpenCV - Morphological Transformations.

Quick Settings

Based on a existing TextLineSpecification object, you can use BaseTextLineSpecificationName with other minor changes to configure a new TextLineSpecification object. For example；

{
    "Name":"LS_0",
    "CharacterModelName" : "NumberLetterCharRecognition",
    "ApplicableTextLineNumbers":"1-3",
    "BinarizationModes" : [
        {
            "Mode": "BM_LOCAL_BLOCK",
            "BlockSizeX": 5,
            "BlockSizeY": 5,
        }
    ],
    "CharacterNormalizationModes" : [
        {
            "Mode": "CNM_MORPH",
            "MorphOperation": "Close",
            "MorphArgument": "3",
        }
    ],
    "StringLengthRange" : [44,44],
    "StringRegExPattern" : "Dynamsoft",
    "CharHeightRange" : [ 800, 1000, 1 ]
},
{
    "Name":"LS_1",
    "BaseTextLineSpecificationName" : "LS_0", // Use the same settings with LS_0 but add some changes.
    "ApplicableTextLineNumbers":"4-7",
    "CharHeightRange" : [ 600, 800, 1 ]
}

Result Concatenation

When multiple text lines need to be combined into a single result, use the following parameters:

• ConcatResults: Set to 1 to enable concatenation of multiple text line results into a single output.
• ConcatSeparator: Defines the separator string used between concatenated text lines (e.g., “\n” for newline).
• ConcatStringLengthRange: Specifies the valid length range [min, max] for the concatenated result.
• ConcatStringRegExPattern: Regular expression pattern that the concatenated result must match.

Grouping and Filtering

• ExpectedGroupsCount: Specifies the expected number of text line groups to be recognized.
• ReferenceGroupName: References another group for relative positioning or filtering.
• SubGroups: Defines sub-groups within the text line specification for hierarchical organization.
• TextLinesCount: Specifies the expected number of text lines to be processed.

Output Control

• OutputResults: Set to 1 to include this text line’s results in the final output, or 0 to process internally without outputting.

Character Correction

• ConfusableCharactersCorrection: Configuration for correcting commonly confused characters (e.g., 0 vs O, 1 vs I).
