Default User Interface

It can be seen from Viewers part, DDV provides the default UI design for the edit viewer, capture viewer and perspective viewer. They basically contain the main features of each type of viewer.

The default UI varies depending on the screen size (desktop or mobile). You can get the default UI by using getDefaultUiConfig().

Edit viewer

Mobile

Default UiConfig:

{
    type: Dynamsoft.DDV.Elements.Layout,
    flexDirection: "column",
    className: "ddv-edit-viewer-mobile",
    children: [
        {
            type: Dynamsoft.DDV.Elements.Layout,
            className: "ddv-edit-viewer-header-mobile",
            children: [
                Dynamsoft.DDV.Elements.RedactionSet,
                Dynamsoft.DDV.Elements.AnnotationSet,
                Dynamsoft.DDV.Elements.Pagination,
                Dynamsoft.DDV.Elements.Download,
                Dynamsoft.DDV.Elements.TextSearchPanelSwitch
            ]
        },
        {
        type: Dynamsoft.DDV.Elements.Layout,
        flexDirection:"column",
        children:[
            Dynamsoft.DDV.Elements.MainView,
            {
                type: Dynamsoft.DDV.Elements.TextSearchPanel,
                className: "ddv-edit-viewer-search-mobile"
            }
        ]
        },
        {
            type: Dynamsoft.DDV.Elements.Layout,
            className: "ddv-edit-viewer-footer-mobile",
            children: [
                Dynamsoft.DDV.Elements.DisplayMode,
                Dynamsoft.DDV.Elements.RotateLeft,
                Dynamsoft.DDV.Elements.Crop,
                Dynamsoft.DDV.Elements.Undo,
                Dynamsoft.DDV.Elements.Delete,
                Dynamsoft.DDV.Elements.Load
            ]
        }
    ]
}

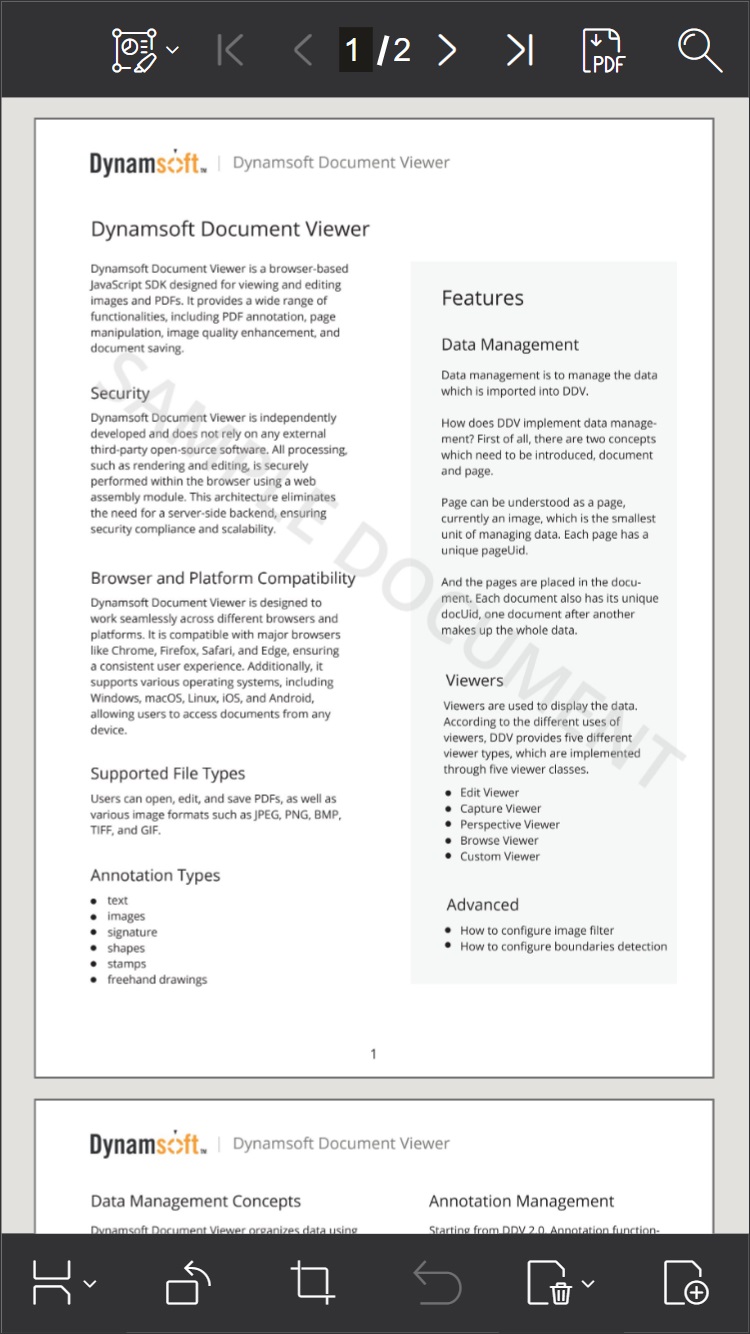

Default mobile EditViewer UI

Desktop

Default UiConfig:

{
    type: Dynamsoft.DDV.Elements.Layout,
    flexDirection: "column",
    className: "ddv-edit-viewer-desktop",
    children: [
        {
            type: Dynamsoft.DDV.Elements.Layout,
            className: "ddv-edit-viewer-header-desktop",
            children: [{
                    type: Dynamsoft.DDV.Elements.Layout,
                    enableScroll:true,
                    children: [
                        Dynamsoft.DDV.Elements.ThumbnailSwitch,
                        Dynamsoft.DDV.Elements.Zoom,
                        Dynamsoft.DDV.Elements.FitMode,
                        Dynamsoft.DDV.Elements.DisplayMode,
                        Dynamsoft.DDV.Elements.RotateLeft,
                        Dynamsoft.DDV.Elements.RotateRight,
                        Dynamsoft.DDV.Elements.Crop,
                        Dynamsoft.DDV.Elements.Undo,
                        Dynamsoft.DDV.Elements.Redo,
                        Dynamsoft.DDV.Elements.DeleteCurrent,
                        Dynamsoft.DDV.Elements.DeleteAll,
                        Dynamsoft.DDV.Elements.Pan,
                        Dynamsoft.DDV.Elements.TextSelectionMode,
                        Dynamsoft.DDV.Elements.SeparatorLine,
                        Dynamsoft.DDV.Elements.AnnotationSet,
                        Dynamsoft.DDV.Elements.RedactionSet
                    ]
                },
                {
                    type: Dynamsoft.DDV.Elements.Layout,
                    children: [
                        {
                            type: Dynamsoft.DDV.Elements.Pagination,
                            className: "ddv-edit-viewer-pagination-desktop",
                        },
                        Dynamsoft.DDV.Elements.Load,
                        Dynamsoft.DDV.Elements.Download,
                        Dynamsoft.DDV.Elements.Print,
                        Dynamsoft.DDV.Elements.TextSearchPanelSwitch
                    ]
                }
            ]
        },
        {
            type:Dynamsoft.DDV.Elements.Layout,
            flexDirection:"row",
            children:[
                Dynamsoft.DDV.Elements.MainView,
                Dynamsoft.DDV.Elements.TextSearchPanel
            ]
        }
    ]
}

Default desktop EditViewer UI

Capture viewer

Mobile

Default UiConfig:

{
    type: Dynamsoft.DDV.Elements.Layout,
    flexDirection: "column",
    children: [
        {
            type: Dynamsoft.DDV.Elements.Layout,
            className: "ddv-capture-viewer-header-mobile",
            children: [
                {
                    type: Dynamsoft.DDV.Elements.CameraResolution,
                    className: "ddv-capture-viewer-resolution",
                },
                Dynamsoft.DDV.Elements.Flashlight,
            ],
        },
        Dynamsoft.DDV.Elements.MainView,
        {
            type: Dynamsoft.DDV.Elements.Layout,
            className: "ddv-capture-viewer-footer-mobile",
            children: [
                Dynamsoft.DDV.Elements.AutoDetect,
                Dynamsoft.DDV.Elements.AutoCapture,
                {
                    type: Dynamsoft.DDV.Elements.Capture,
                    className: "ddv-capture-viewer-captureButton",
                },
                Dynamsoft.DDV.Elements.ImagePreview,
                Dynamsoft.DDV.Elements.CameraConvert,
            ],
        },
    ],
};

Default mobile CaptureViewer UI

Desktop

Default UiConfig:

{
    type: Dynamsoft.DDV.Elements.Layout,
    flexDirection: "column",
    className: "ddv-capture-viewer-desktop",
    children: [
        {
            type: Dynamsoft.DDV.Elements.Layout,
            className: "ddv-capture-viewer-header-desktop",
            children: [
                {
                    type: Dynamsoft.DDV.Elements.CameraResolution,
                    className: "ddv-capture-viewer-resolution-desktop",
                },
                Dynamsoft.DDV.Elements.AutoDetect,
                {
                    type: Dynamsoft.DDV.Elements.Capture,
                    className: "ddv-capture-viewer-capture-desktop",
                },
                Dynamsoft.DDV.Elements.AutoCapture,
            ],
        },
        Dynamsoft.DDV.Elements.MainView,
        {
            type: Dynamsoft.DDV.Elements.ImagePreview,
            className: "ddv-capture-viewer-image-preview-desktop",
        },
    ],
};

Default desktop CaptureViewer UI

Perspective viewer

Mobile

Default UiConfig:

{
    type: Dynamsoft.DDV.Elements.Layout,
    flexDirection: "column",
    children: [
        {
            type: Dynamsoft.DDV.Elements.Layout,
            className: "ddv-perspective-viewer-header-mobile",
            children: [
                Dynamsoft.DDV.Elements.Blank,
                Dynamsoft.DDV.Elements.Pagination,
                Dynamsoft.DDV.Elements.PerspectiveAll,
            ],
        },
        Dynamsoft.DDV.Elements.MainView,
        {
            type: Dynamsoft.DDV.Elements.Layout,
            className: "ddv-perspective-viewer-footer-mobile",
            children: [
                Dynamsoft.DDV.Elements.FullQuad,
                Dynamsoft.DDV.Elements.RotateLeft,
                Dynamsoft.DDV.Elements.RotateRight,
                Dynamsoft.DDV.Elements.DeleteCurrent,
                Dynamsoft.DDV.Elements.DeleteAll,
            ],
        },
    ],
};

Default mobile PerspectiveViewer UI

Desktop

Default UiConfig:

{
    type: Dynamsoft.DDV.Elements.Layout,
    flexDirection: "column",
    children: [
        {
            type: Dynamsoft.DDV.Elements.Layout,
            className: "ddv-perspective-viewer-header-desktop",
            children: [
                Dynamsoft.DDV.Elements.FullQuad,
                Dynamsoft.DDV.Elements.RotateLeft,
                Dynamsoft.DDV.Elements.RotateRight,
                Dynamsoft.DDV.Elements.DeleteCurrent,
                Dynamsoft.DDV.Elements.DeleteAll,
                {
                    type: Dynamsoft.DDV.Elements.Pagination,
                    className: "ddv-perspective-viewer-pagination-desktop",
                },
                {
                    type: Dynamsoft.DDV.Elements.PerspectiveAll,
                    className: "ddv-perspective-viewer-perspective-desktop",
                },
            ],
        },
        Dynamsoft.DDV.Elements.MainView,
    ],
};

Default desktop PerspectiveViewer UI

Browse viewer

Default UiConfig:

{
    type: Dynamsoft.DDV.Elements.Layout,
    children: [
        Dynamsoft.Dynamsoft.DDV.Elements.MainView,
    ],
};
