How to Improve C++ MRZ Scanner Accuracy with Deep Learning Models

Mar 18, 2026

 cpp mrz

•  MRZ
•  CPP
•  DCV
•  DLR

The font used in the Machine Readable Zone (MRZ) is called OCR-B, which is standardized and globally unified. In the latest version of the Capture Vision SDK, Dynamsoft has released a new deep learning model for MRZ recognition. The model has been trained on a large dataset of MRZ samples and offers significantly higher accuracy in MRZ text recognition. In this article, we will demonstrate how to build a desktop MRZ scanner using C++ and Dynamsoft’s fine-tuned deep learning models.

What you’ll build: A real-time C++ desktop MRZ scanner that reads passport and ID card Machine Readable Zones using Dynamsoft’s new deep learning model, achieving up to 95% recognition accuracy on the OCR-B character set.

Key Takeaways

• Dynamsoft’s new deep learning MRZ model improves recognition accuracy from 65% to 95% over the previous rule-based approach on a standardized OCR-B dataset.
• The CCaptureVisionRouter API manages the full MRZ detection pipeline — from live camera input through text line recognition to structured field parsing.
• Model files are under 2 MB and deploy on Windows, macOS, and Linux with no runtime dependency changes.
• This approach suits passport scanning kiosks, border control systems, and any real-time identity verification workflow where high MRZ accuracy is required.

Common Developer Questions

• How do I improve MRZ reading accuracy in C++ using deep learning?
• How do I parse passport and ID card MRZ fields (name, date of birth, document number) in C++?
• How do I integrate the Dynamsoft Capture Vision SDK with a live camera stream in C++?

C++ MRZ Scanner Demo Video

Prerequisites

• C++ compiler
• CMake
• Get a 30-day free trial license for Dynamsoft Capture Vision
• Dynamsoft Capture Vision C++ SDK

How the New Deep Learning Models Improve MRZ Recognition Accuracy

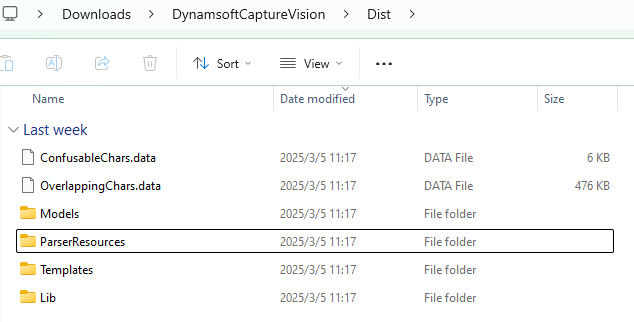

After extracting the SDK zip package, you can find the model files in the DynamsoftCaptureVision\Dist\Models folder. The model files are less than 2MB in size.

Compared to the previous version, the new model improves the recognition accuracy of Dynamsoft’s MRZ dataset from 65% to 95%, marking a significant leap in performance.

How to Configure the CMakeLists.txt File

The MRZ scanner application requires camera access. We use litecam to capture video frames.

In the CMakeLists.txt file:

1. Compile the source code file and link the litecam and Dynamsoft Capture Vision libraries. Use CMAKE_BUILD_TYPE to determine the runtime library and link directories for Windows.

    cmake_minimum_required(VERSION 3.15)
    project(MRZScanner)

    if(WIN32)
        if (CMAKE_BUILD_TYPE STREQUAL "Debug")
            set(CMAKE_MSVC_RUNTIME_LIBRARY "MultiThreadedDebug")
        else()
            set(CMAKE_MSVC_RUNTIME_LIBRARY "MultiThreaded")
        endif()

        if(CMAKE_BUILD_TYPE STREQUAL "Release")
            link_directories(${CMAKE_CURRENT_SOURCE_DIR}/../../dist/lib/windows/release ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/win/lib)
        else()
            link_directories(${CMAKE_CURRENT_SOURCE_DIR}/../../dist/lib/windows/debug ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/win/lib)
        endif()

        set(DBR_LIBS "DynamsoftCorex64" "DynamsoftLicensex64" "DynamsoftCaptureVisionRouterx64" "DynamsoftUtilityx64")

    elseif(APPLE)
        set(CMAKE_CXX_FLAGS "-std=c++11 -O3 -Wl,-rpath,@executable_path")
        set(CMAKE_INSTALL_RPATH "@executable_path")

        link_directories(
            ${CMAKE_CURRENT_SOURCE_DIR}/../../dist/lib/macos
            ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/macos
        )

        set(DBR_LIBS
            "DynamsoftCore"
            "DynamsoftLicense"
            "DynamsoftCaptureVisionRouter"
            "DynamsoftUtility"
            "pthread"
        )
    elseif(UNIX)
        SET(CMAKE_CXX_FLAGS "-std=c++11 -O3 -Wl,-rpath=$ORIGIN")
        SET(CMAKE_INSTALL_RPATH "$ORIGIN")
        link_directories(${CMAKE_CURRENT_SOURCE_DIR}/../../dist/lib/linux ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/linux)
        set(DBR_LIBS "DynamsoftCore" "DynamsoftLicense" "DynamsoftCaptureVisionRouter" "DynamsoftUtility" pthread)
    endif()

    add_executable(${PROJECT_NAME} main.cpp)
    target_include_directories(${PROJECT_NAME} PUBLIC ${CMAKE_CURRENT_SOURCE_DIR}/../../dist/include ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/include)
    target_link_libraries(${PROJECT_NAME} litecam ${DBR_LIBS})


2. Copy resources, including templates, models, and shared libraries, to the output directory. Ensure that resource names and structures remain consistent with the Dynamsoft Capture Vision SDK.

    if(WIN32)
        if(CMAKE_BUILD_TYPE STREQUAL "Release")
            add_custom_command(TARGET ${PROJECT_NAME} POST_BUILD
            COMMAND ${CMAKE_COMMAND} -E copy_directory
            ${CMAKE_CURRENT_SOURCE_DIR}/../../dist/lib/windows/release
            $<TARGET_FILE_DIR:${PROJECT_NAME}>)
        else()
            add_custom_command(TARGET ${PROJECT_NAME} POST_BUILD
            COMMAND ${CMAKE_COMMAND} -E copy_directory
            ${CMAKE_CURRENT_SOURCE_DIR}/../../dist/lib/windows/debug
            $<TARGET_FILE_DIR:${PROJECT_NAME}>)
        endif()

        add_custom_command(TARGET ${PROJECT_NAME} POST_BUILD
        COMMAND ${CMAKE_COMMAND} -E copy_directory
        ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/win/bin/
        $<TARGET_FILE_DIR:${PROJECT_NAME}>)
    elseif(APPLE)
        add_custom_command(TARGET ${PROJECT_NAME} POST_BUILD
            COMMAND ${CMAKE_COMMAND} -E copy_directory
            ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/macos
            $<TARGET_FILE_DIR:${PROJECT_NAME}>
        )
    elseif(UNIX)
        add_custom_command(TARGET ${PROJECT_NAME} POST_BUILD
        COMMAND ${CMAKE_COMMAND} -E copy_directory
        ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/linux/
        $<TARGET_FILE_DIR:${PROJECT_NAME}>)
    endif()


    add_custom_command(TARGET ${PROJECT_NAME} POST_BUILD
    COMMAND ${CMAKE_COMMAND} -E make_directory $<TARGET_FILE_DIR:${PROJECT_NAME}>/Templates
    COMMAND ${CMAKE_COMMAND} -E copy_directory
    ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/Templates
    $<TARGET_FILE_DIR:${PROJECT_NAME}>/Templates)

    add_custom_command(TARGET ${PROJECT_NAME} POST_BUILD
    COMMAND ${CMAKE_COMMAND} -E make_directory $<TARGET_FILE_DIR:${PROJECT_NAME}>/Models
    COMMAND ${CMAKE_COMMAND} -E copy_directory
    ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/Models
    $<TARGET_FILE_DIR:${PROJECT_NAME}>/Models)

    add_custom_command(TARGET ${PROJECT_NAME} POST_BUILD
    COMMAND ${CMAKE_COMMAND} -E make_directory $<TARGET_FILE_DIR:${PROJECT_NAME}>/ParserResources
    COMMAND ${CMAKE_COMMAND} -E copy_directory
    ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/ParserResources
    $<TARGET_FILE_DIR:${PROJECT_NAME}>/ParserResources)

    add_custom_command(TARGET ${PROJECT_NAME} POST_BUILD
    COMMAND ${CMAKE_COMMAND} -E copy
    ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/ConfusableChars.data
    $<TARGET_FILE_DIR:${PROJECT_NAME}>/ConfusableChars.data)

    add_custom_command(TARGET ${PROJECT_NAME} POST_BUILD
    COMMAND ${CMAKE_COMMAND} -E copy
    ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/OverlappingChars.data
    $<TARGET_FILE_DIR:${PROJECT_NAME}>/OverlappingChars.data)




Steps to Implement the MRZ Scanner in C++

In the following steps, we will gradually complete the main.cpp file to implement the MRZ scanner.

Step 1: Include Header Files

#include <iostream>
#include <deque>
#include <vector>
#include <mutex>
#include <string>
#include "DynamsoftCaptureVisionRouter.h"
#include "DynamsoftUtility.h"
#include "Camera.h"
#include "CameraPreview.h"

using namespace std;
using namespace dynamsoft::license;
using namespace dynamsoft::dlr;
using namespace dynamsoft::cvr;
using namespace dynamsoft::utility;
using namespace dynamsoft::basic_structures;
using namespace dynamsoft::dcp;

Step 2: Initialize the Image Processing Engine

1. Set the license key with your own.

    int iRet = -1;
    char szErrorMsg[256];
    iRet = CLicenseManager::InitLicense("LICENSE-KEY", szErrorMsg, 256);
    if (iRet != EC_OK)
    {
        std::cout << szErrorMsg << std::endl;
    }


2. Instantiate CCaptureVisionRouter, MyVideoFetcher, and CCapturedResultReceiver. CCaptureVisionRouter manages the workflow of image processing. MyVideoFetcher is a subclass of CImageSourceAdapter and is used to fetch video frames. CCapturedResultReceiver is a subclass of CCapturedResultReceiver and is used to receive MRZ recognition results.

    class MyCapturedResultReceiver : public CCapturedResultReceiver
    {
    public:
        virtual void OnCapturedResultReceived(CCapturedResult *capturedResult) override
        {
            // TODO: process the MRZ text
        }
    };

    class MyVideoFetcher : public CImageSourceAdapter
    {
    public:
        MyVideoFetcher() {}
        ~MyVideoFetcher() {}

        bool HasNextImageToFetch() const override
        {
            return true;
        }

        void MyAddImageToBuffer(const CImageData *img, bool bClone = true)
        {
            AddImageToBuffer(img, bClone);
        }
    };

    int main()
    {
        int errorCode = 0;
        char errorMsg[512] = {0};
        CCaptureVisionRouter *cvr = new CCaptureVisionRouter;

        MyVideoFetcher *fetcher = new MyVideoFetcher();
        fetcher->SetMaxImageCount(4);
        fetcher->SetBufferOverflowProtectionMode(BOPM_UPDATE);
        fetcher->SetColourChannelUsageType(CCUT_AUTO);
        cvr->SetInput(fetcher);

        CCapturedResultReceiver *capturedReceiver = new MyCapturedResultReceiver;
        cvr->AddResultReceiver(capturedReceiver);

        errorCode = cvr->StartCapturing("ReadPassportAndId", false, errorMsg, 512);
        if (errorCode != EC_OK)
        {
            std::cout << "error:" << errorMsg << std::endl;
            return -1;
        }
    }


Step 3: Set Up the Camera Stream and Capture Frames

1. Create a Camera object and capture video frames in a loop.

    Camera camera;

    if (camera.Open(0))
    {
        CameraWindow window(camera.frameWidth, camera.frameHeight, "Camera Stream");
        if (!window.Create())
        {
            std::cerr << "Failed to create window." << std::endl;
            return -1;
        }
        window.Show();

        CameraWindow::Color textColor = {255, 0, 0};
        while (window.WaitKey('q'))
        {
            FrameData frame = camera.CaptureFrame();
            if (frame.rgbData)
            {
                window.ShowFrame(frame.rgbData, frame.width, frame.height);
                // Process the frame
                ReleaseFrame(frame);
            }
        }

        camera.Release();
    }


2. Append the frames to the MyVideoFetcher object for MRZ recognition.

    if (frame.rgbData)
    {
        window.ShowFrame(frame.rgbData, frame.width, frame.height);

        CImageData data(frame.size,
                        frame.rgbData,
                        frame.width,
                        frame.height,
                        frame.width * 3,
                        IPF_RGB_888,
                        0, 0);

        fetcher->MyAddImageToBuffer(&data);
    }


Step 4: Process MRZ Recognition Results in the Callback

1. The OnCapturedResultReceived callback function is triggered when the MRZ recognition process is completed. The MRZ text is stored in the CCapturedResult object.


    class Point
    {

    public:
        int x;
        int y;
        Point(int x, int y) : x(x), y(y) {}
    };

    struct TextResult
    {
        int id;
        MRZResult info;
        std::vector<Point> textLinePoints;
    };

    std::vector<TextResult> textResults;
    std::mutex textResultsMutex;

    class MyCapturedResultReceiver : public CCapturedResultReceiver
    {
    public:
        virtual void OnCapturedResultReceived(CCapturedResult *capturedResult) override
        {
            std::lock_guard<std::mutex> lock(textResultsMutex);
            textResults.clear();

            CRecognizedTextLinesResult *textLineResult = capturedResult->GetRecognizedTextLinesResult();
            if (textLineResult == nullptr)
            {
                return;
            }

            int lCount = textLineResult->GetItemsCount();
            for (int li = 0; li < lCount; ++li)
            {
                TextResult textResult;

                const CTextLineResultItem *textLine = textLineResult->GetItem(li);
                CPoint *points = textLine->GetLocation().points;
                textResult.textLinePoints.push_back(Point(points[0][0], points[0][1]));
                textResult.textLinePoints.push_back(Point(points[1][0], points[1][1]));
                textResult.textLinePoints.push_back(Point(points[2][0], points[2][1]));
                textResult.textLinePoints.push_back(Point(points[3][0], points[3][1]));

                const CParsedResultItem *item = capturedResult->GetParsedResult()->GetItem(li);
                MRZResult mrzResult;
                mrzResult.FromParsedResultItem(item);

                textResult.info = mrzResult;

                textResults.push_back(textResult);
            }
        }
    };



2. The FromParsedResultItem() function extracts standardized information such as document type, issuing country, document number, name, nationality, date of birth, gender, and expiry date from the MRZ text.

    class MRZResult
    {
    public:
        string docId;
        string docType;
        string nationality;
        string issuer;
        string dateOfBirth;
        string dateOfExpiry;
        string gender;
        string surname;
        string givenname;

        vector<string> rawText;

        MRZResult FromParsedResultItem(const CParsedResultItem *item)
        {
            docType = item->GetCodeType();

            if (docType == "MRTD_TD3_PASSPORT")
            {
                if (item->GetFieldValidationStatus("passportNumber") != VS_FAILED && item->GetFieldValue("passportNumber") != NULL)
                {
                    docId = item->GetFieldValue("passportNumber");
                }
            }
            else if (item->GetFieldValidationStatus("documentNumber") != VS_FAILED && item->GetFieldValue("documentNumber") != NULL)
            {
                docId = item->GetFieldValue("documentNumber");
            }

            string line;
            if (docType == "MRTD_TD1_ID")
            {
                if (item->GetFieldValue("line1") != NULL)
                {
                    line = item->GetFieldValue("line1");
                    if (item->GetFieldValidationStatus("line1") == VS_FAILED)
                    {
                        line += ", Validation Failed";
                    }
                    rawText.push_back(line);
                }

                if (item->GetFieldValue("line2") != NULL)
                {
                    line = item->GetFieldValue("line2");
                    if (item->GetFieldValidationStatus("line2") == VS_FAILED)
                    {
                        line += ", Validation Failed";
                    }
                    rawText.push_back(line);
                }

                if (item->GetFieldValue("line3") != NULL)
                {
                    line = item->GetFieldValue("line3");
                    if (item->GetFieldValidationStatus("line3") == VS_FAILED)
                    {
                        line += ", Validation Failed";
                    }
                    rawText.push_back(line);
                }
            }
            else
            {
                if (item->GetFieldValue("line1") != NULL)
                {
                    line = item->GetFieldValue("line1");
                    if (item->GetFieldValidationStatus("line1") == VS_FAILED)
                    {
                        line += ", Validation Failed";
                    }
                    rawText.push_back(line);
                }

                if (item->GetFieldValue("line2") != NULL)
                {
                    line = item->GetFieldValue("line2");
                    if (item->GetFieldValidationStatus("line2") == VS_FAILED)
                    {
                        line += ", Validation Failed";
                    }
                    rawText.push_back(line);
                }
            }

            if (item->GetFieldValidationStatus("nationality") != VS_FAILED && item->GetFieldValue("nationality") != NULL)
            {
                nationality = item->GetFieldValue("nationality");
            }
            if (item->GetFieldValidationStatus("issuingState") != VS_FAILED && item->GetFieldValue("issuingState") != NULL)
            {
                issuer = item->GetFieldValue("issuingState");
            }
            if (item->GetFieldValidationStatus("dateOfBirth") != VS_FAILED && item->GetFieldValue("dateOfBirth") != NULL)
            {
                dateOfBirth = item->GetFieldValue("dateOfBirth");
            }
            if (item->GetFieldValidationStatus("dateOfExpiry") != VS_FAILED && item->GetFieldValue("dateOfExpiry") != NULL)
            {
                dateOfExpiry = item->GetFieldValue("dateOfExpiry");
            }
            if (item->GetFieldValidationStatus("sex") != VS_FAILED && item->GetFieldValue("sex") != NULL)
            {
                gender = item->GetFieldValue("sex");
            }
            if (item->GetFieldValidationStatus("primaryIdentifier") != VS_FAILED && item->GetFieldValue("primaryIdentifier") != NULL)
            {
                surname = item->GetFieldValue("primaryIdentifier");
            }
            if (item->GetFieldValidationStatus("secondaryIdentifier") != VS_FAILED && item->GetFieldValue("secondaryIdentifier") != NULL)
            {
                givenname = item->GetFieldValue("secondaryIdentifier");
            }

            return *this;
        }

        string ToString()
        {
            string msg = "Raw Text:\n";
            for (size_t idx = 0; idx < rawText.size(); ++idx)
            {
                msg += "\tLine " + to_string(idx + 1) + ": " + rawText[idx] + "\n";
            }
            msg += "Parsed Information:\n";
            msg += "\tDocument Type: " + docType + "\n";
            msg += "\tDocument ID: " + docId + "\n";
            msg += "\tSurname: " + surname + "\n";
            msg += "\tGiven Name: " + givenname + "\n";
            msg += "\tNationality: " + nationality + "\n";
            msg += "\tIssuing Country or Organization: " + issuer + "\n";
            msg += "\tGender: " + gender + "\n";
            msg += "\tDate of Birth(YYMMDD): " + dateOfBirth + "\n";
            msg += "\tExpiration Date(YYMMDD): " + dateOfExpiry + "\n";

            return msg;
        }
    };


Step 5: Overlay MRZ Detection Results on the Camera Preview

{
    std::lock_guard<std::mutex> lock(textResultsMutex);
    for (const auto &result : textResults)
    {
        if (!result.textLinePoints.empty())
        {
            std::vector<std::pair<int, int>> corners = {{result.textLinePoints[0].x, result.textLinePoints[0].y},
                                                        {result.textLinePoints[1].x, result.textLinePoints[1].y},
                                                        {result.textLinePoints[2].x, result.textLinePoints[2].y},
                                                        {result.textLinePoints[3].x, result.textLinePoints[3].y}};
            window.DrawContour(corners);

            int x = 20;
            int y = 40;

            MRZResult mrzResult = result.info;
            string msg = "Document Type: " + mrzResult.docType;
            window.DrawText(msg, x, y, 24, textColor);
            y += 20;
            msg = "Document ID: " + mrzResult.docId;
            window.DrawText(msg, x, y, 24, textColor);
            y += 20;
            msg = "Surname: " + mrzResult.surname;
            window.DrawText(msg, x, y, 24, textColor);
            y += 20;
            msg = "Given Name: " + mrzResult.givenname;
            window.DrawText(msg, x, y, 24, textColor);
            y += 20;
            msg = "Nationality: " + mrzResult.nationality;
            window.DrawText(msg, x, y, 24, textColor);
            y += 20;
            msg = "Issuing Country or Organization: " + mrzResult.issuer;
            window.DrawText(msg, x, y, 24, textColor);
            y += 20;
            msg = "Gender: " + mrzResult.gender;
            window.DrawText(msg, x, y, 24, textColor);
            y += 20;
            msg = "Date of Birth(YYMMDD): " + mrzResult.dateOfBirth;
            window.DrawText(msg, x, y, 24, textColor);
            y += 20;
            msg = "Expiration Date(YYMMDD): " + mrzResult.dateOfExpiry;
        }
    }
}

Step 6: Build and Run the MRZ Scanner

1. Create a build directory:

    mkdir build
    cd build


2. Configure with CMake and build:

    cmake ..
    cmake --build .




Common Issues & Edge Cases

• License initialization fails at startup: Ensure CLicenseManager::InitLicense is called before any CCaptureVisionRouter method. On Linux, verify that the shared libraries in the platforms/linux directory are on the loader path (set LD_LIBRARY_PATH or use the $ORIGIN rpath configured in the CMakeLists).
• MRZ not detected on worn or laminated documents: The deep learning model handles OCR-B degradation well, but extreme physical damage may still cause missed detections. Increase frame rate or add a retry prompt asking the user to reposition the document.
• Parsed fields return empty strings: Field extraction via GetFieldValue only succeeds when GetFieldValidationStatus does not return VS_FAILED. If a field is consistently empty, check that the correct template (ReadPassportAndId) is active and that the ParserResources directory was copied to the output folder as part of the CMake post-build step.

Source Code

https://github.com/yushulx/cmake-cpp-barcode-qrcode-mrz/tree/main/litecam/examples/mrz
