How to Create a Document Scanning Web Part for SharePoint

SharePoint is a web-based collaboration and document management platform developed by Microsoft. It is commonly used by organizations to create internal websites (often called “intranets”), store and share files, and manage content and business processes. SharePoint pages are made up of Web Parts — reusable components you can add without coding (like document libraries, calendars, news feeds, or custom forms). Developers can also build custom web parts using frameworks like SPFx (SharePoint Framework).

In this article, we are going to create a SharePoint Web Part to use Dynamic Web TWAIN to access physical document scanners.

Prerequisites

  1. A SharePoint environment. If you don’t have one, you can apply the Microsoft 365 developer plan to have your own SharePoint online environment: https://developer.microsoft.com/en-us/microsoft-365/
  2. Node.js (22 LTS is used when the blog is written)

  3. Toolchain installed with the following command:

    npm install @rushstack/heft yo @microsoft/generator-sharepoint --global

Create a New Web Part Project

Let’s follow the official guide: Build your first SharePoint client-side web part (Hello World part 1)

  1. Create a new project by running the Yeoman SharePoint Generator from within the new directory you created:

    yo @microsoft/sharepoint

    Console output:


     _-----_     ╭──────────────────────────╮
    |       |    │ Welcome to the Microsoft │
    |--(o)--|    │      365 SPFx Yeoman     │
   `---------´   │     Generator@1.22.2     │
    ( _´U`_ )    ╰──────────────────────────╯
    /___A___\   /
     |  ~  |
   __'.___.'__
 ´   `  |° ´ Y `

See https://aka.ms/spfx-yeoman-info for more information on how to use this generator.
Let's create a new Microsoft 365 solution.
√ What is your solution name? dynamic-web-twain
`list` prompt is deprecated. Use `select` prompt instead.
√ Which type of client-side component to create? WebPart
Add new Web part to solution dynamic-web-twain.
√ What is your Web part name? DynamicWebTWAIN
`list` prompt is deprecated. Use `select` prompt instead.
√ Which template would you like to use? No framework

  2. Start the project and view it in your SharePoint:

    heft start

Write a Document Scanning Page

Since SharePoint is a restricted environment, we can not load arbitrary libraries in it. We need to create a web page first and then embed it with iframe.

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Dynamic Web TWAIN Scanner</title>
  <style>
    * { box-sizing: border-box; margin: 0; padding: 0; }
    body {
      font-family: "Segoe UI", "Segoe UI Web (West European)", -apple-system, BlinkMacSystemFont, Roboto, "Helvetica Neue", sans-serif;
      overflow: hidden;
      padding: 1em;
      background: #fff;
      color: #323130;
    }
    .controls {
      margin-bottom: 10px;
      display: flex;
      flex-wrap: wrap;
      gap: 8px;
    }
    .btn {
      padding: 6px 14px;
      border: 1px solid #edebe9;
      background: #fff;
      color: #323130;
      cursor: pointer;
      font-size: 14px;
      border-radius: 2px;
      font-family: inherit;
    }
    .btn:hover:not(:disabled) {
      background: #f3f2f1;
    }
    .btn:disabled {
      opacity: 0.5;
      cursor: not-allowed;
    }
    .status {
      margin-bottom: 8px;
      font-size: 13px;
      color: #605e5c;
      min-height: 18px;
    }
    .container {
      width: 100%;
      height: calc(100vh - 80px);
      min-height: 400px;
    }
  </style>
</head>
<body>
  <div class="status" id="status">Initializing scanner...</div>
  <div class="controls">
    <button class="btn" id="scanBtn" disabled>Scan</button>
    <button class="btn" id="uploadBtn" disabled>Upload</button>
    <button class="btn" id="binarizeBtn" disabled>Convert to binary image</button>
    <button class="btn" id="rotateCWBtn" disabled>Rotate clockwise</button>
    <button class="btn" id="rotateCCWBtn" disabled>Rotate counter-clockwise</button>
  </div>
  <div id="dwtContainer" class="container"></div>

  <script src="https://cdn.jsdelivr.net/npm/dwt/dist/dynamsoft.webtwain.min.js"></script>
  <script>
    (function () {
      var DWTObject = null;
      var dwtReady = false;
      var containerId = 'dwtContainer';
      var statusEl = document.getElementById('status');
      var buttons = ['scanBtn', 'uploadBtn', 'binarizeBtn', 'rotateCWBtn', 'rotateCCWBtn'];

      function setButtonsEnabled(enabled) {
        buttons.forEach(function (id) {
          document.getElementById(id).disabled = !enabled;
        });
      }

      function setStatus(msg) {
        statusEl.textContent = msg;
      }

      function initDWT() {
        Dynamsoft.DWT.AutoLoad = false;
        Dynamsoft.DWT.IfCheckCssFiles = false;
        Dynamsoft.DWT.Containers = [{
          ContainerId: containerId,
          Width: '100%',
          Height: '100%'
        }];
        Dynamsoft.DWT.ProductKey = 'DLS2eyJvcmdhbml6YXRpb25JRCI6IjIwMDAwMSJ9'; //one-day trial
        Dynamsoft.DWT.ResourcesPath = 'https://cdn.jsdelivr.net/npm/dwt/dist';
        Dynamsoft.DWT.ServiceInstallerLocation = 'https://unpkg.com/dwt/dist/dist/';

        Dynamsoft.DWT.RegisterEvent('OnWebTwainReady', function () {
          DWTObject = Dynamsoft.DWT.GetWebTwain(containerId);
          dwtReady = true;
          setButtonsEnabled(true);
          setStatus('Scanner ready.');
        });

        Dynamsoft.DWT.Load();
      }

      function acquireImage() {
        if (!DWTObject) return;
        DWTObject.SelectSourceAsync()
          .then(function () {
            return DWTObject.AcquireImageAsync({
              IfCloseSourceAfterAcquire: true,
              IfShowUI: false,
              PixelType: Dynamsoft.DWT.EnumDWT_PixelType.TWPT_GRAY,
              Resolution: 150
            });
          })
          .catch(function (exp) {
            alert(exp.message);
          });
      }

      function upload() {
        if (!DWTObject || DWTObject.HowManyImagesInBuffer === 0) {
          alert('There is no image in buffer.');
          return;
        }
        var strUrl = 'https://demo.dynamsoft.com/sample-uploads/';
        var imgAry = [DWTObject.CurrentImageIndexInBuffer];
        DWTObject.HTTPUpload(
          strUrl,
          imgAry,
          Dynamsoft.DWT.EnumDWT_ImageType.IT_PNG,
          Dynamsoft.DWT.EnumDWT_UploadDataFormat.Binary,
          'WebTWAINImage.png',
          function () { alert('Upload successful'); },
          function (_errorCode, errorString, sHttpResponse) {
            alert(sHttpResponse.length > 0 ? sHttpResponse : errorString);
          }
        );
      }

      function binarizeImage() {
        if (DWTObject) {
          DWTObject.ConvertToBW(DWTObject.CurrentImageIndexInBuffer);
        }
      }

      function rotateCW() {
        if (DWTObject) {
          DWTObject.RotateRight(DWTObject.CurrentImageIndexInBuffer);
        }
      }

      function rotateCCW() {
        if (DWTObject) {
          DWTObject.RotateLeft(DWTObject.CurrentImageIndexInBuffer);
        }
      }

      // Check if Dynamsoft is already loaded, if not wait for script onload
      function bootstrap() {
        if (window.Dynamsoft && Dynamsoft.DWT) {
          initDWT();
        } else {
          setTimeout(bootstrap, 100);
        }
      }

      document.getElementById('scanBtn').addEventListener('click', acquireImage);
      document.getElementById('uploadBtn').addEventListener('click', upload);
      document.getElementById('binarizeBtn').addEventListener('click', binarizeImage);
      document.getElementById('rotateCWBtn').addEventListener('click', rotateCW);
      document.getElementById('rotateCCWBtn').addEventListener('click', rotateCCW);

      if (document.readyState === 'loading') {
        document.addEventListener('DOMContentLoaded', bootstrap);
      } else {
        bootstrap();
      }
    })();
  </script>
</body>
</html>

Put the file under src\webparts\dynamicWebTwain\assets\dwt-scanner.html.

Use the Document Scanning Page with iframe in Web Part

  1. Add a property to specify the URL of the document scanning page.

    export interface IDynamicWebTwainWebPartProps {
  description: string;
  scannerPageUrl: string;
}

protected getPropertyPaneConfiguration(): IPropertyPaneConfiguration {
  return {
    pages: [
      {
        header: {
          description: strings.PropertyPaneDescription
        },
        groups: [
          {
            groupName: strings.BasicGroupName,
            groupFields: [
              PropertyPaneTextField('description', {
                label: strings.DescriptionFieldLabel
              }),
              PropertyPaneTextField('scannerPageUrl', {
                label: 'Scanner Page URL',
                description: 'URL of the scanner HTML page. Defaults to local dev URL when running locally.'
              })
            ]
          }
        ]
      }
    ]
  };
}

  2. Add a function to resolve the URL for the iframe to use.

    private get _resolvedScannerPageUrl(): string {
  if (this.properties.scannerPageUrl) {
    return this.properties.scannerPageUrl;
  }
  const manifest = this.context.manifest as any;
  const baseUrls: string[] | undefined = manifest?.loaderConfig?.internalModuleBaseUrls;
  if (baseUrls && baseUrls.length > 0) {
    const distUrl = baseUrls[0].replace(/\/+$/, '');
    const libUrl = distUrl.replace(/\/dist$/, '') + '/lib';
    return libUrl + '/webparts/dynamicWebTwain/assets/dwt-scanner.html';
  }
  if (this.context.isServedFromLocalhost) {
    return 'https://localhost:4321/lib/webparts/dynamicWebTwain/assets/dwt-scanner.html';
  }
  return '';
}

  3. Modify render function to use iframe. Here, we need to add allow attributes for local network access.

    public render(): void {
  const scannerUrl = this._resolvedScannerPageUrl;

  if (!scannerUrl) {
    this.domElement.innerHTML = `
      <section class="${styles.dynamicWebTwain}">
        <div class="${styles.placeholder}">
          Please configure the <strong>Scanner Page URL</strong> in the web part property pane.
        </div>
      </section>`;
    return;
  }

  this.domElement.innerHTML = `
    <section class="${styles.dynamicWebTwain} ${!!this.context.sdks.microsoftTeams ? styles.teams : ''}">
      <iframe
        src="${this._escapeHtml(scannerUrl)}"
        class="${styles.iframe}"
        allow="loopback-network *; local-network *; local-network-access *"
        title="Dynamic Web TWAIN Scanner">
      </iframe>
    </section>`;
}

private _escapeHtml(str: string): string {
  return str.replace(/&/g, '&amp;').replace(/"/g, '&quot;').replace(/</g, '&lt;').replace(/>/g, '&gt;');
}

  4. Run heft start and you can debug the web part in your SharePoint environment.

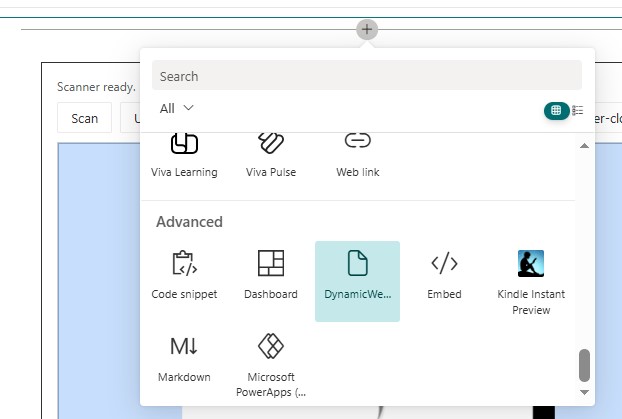

    1. Select the web part to add.

      Web Parts

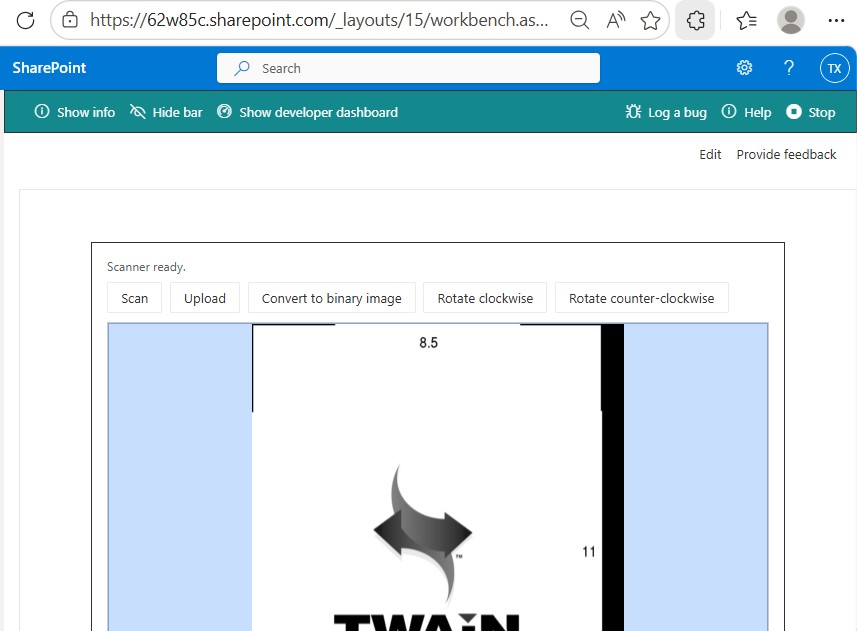

    2. Scanner.

      Demo

All right, we’ve covered the basic parts of using Dynamic Web TWAIN in SharePoint’s Web Part.

Source Code

Get the source code to have a try:

https://github.com/tony-xlh/Dynamic-Web-TWAIN-Sharepoint
