Build a Python GUI Barcode Scanner for PDF Files with Dynamsoft

Mar 17, 2026

The Dynamsoft Python Barcode SDK, now part of the Dynamsoft Capture Vision Bundle, provides APIs for reading 1D and 2D barcodes from various image and PDF files. This tutorial demonstrates how to build both a command-line tool and a GUI application to read barcodes from PDF documents using the Dynamsoft Python Barcode SDK and an AI agent:

Command-Line Tool: A CLI sample demonstrating how to read barcodes from PDF files using the Dynamsoft Python Barcode SDK. The sample also serves as a reference for an AI agent to build a more advanced GUI app.
GUI Application: A modern, feature-rich desktop app with drag-and-drop support, automatically built by an AI agent.

What you’ll build: A Python Tkinter GUI application and a companion CLI tool that scan 1D/2D barcodes from single- and multi-page PDF files using the Dynamsoft Capture Vision SDK, with bounding-box annotations and multi-format result export.

Key Takeaways

Dynamsoft Capture Vision Bundle’s capture_multi_pages() API decodes 1D/2D barcodes from every page of a multi-page PDF in a single call — no third-party PDF library required.
A custom IntermediateResultReceiver captures per-page rasterized images during detection, enabling OpenCV bounding-box overlays on each page.
The same CLI tool serves as a reference for a Copilot AI agent to auto-generate a full Tkinter GUI app.
This pattern applies to invoice scanning, logistics labels, and any workflow where barcodes are embedded in PDF documents.

Common Developer Questions

How do I read barcodes from a PDF file using Python?
How do I extract and decode barcodes from each page of a multi-page PDF with Python?
How do I draw bounding boxes around barcodes on rasterized PDF page images in Python?

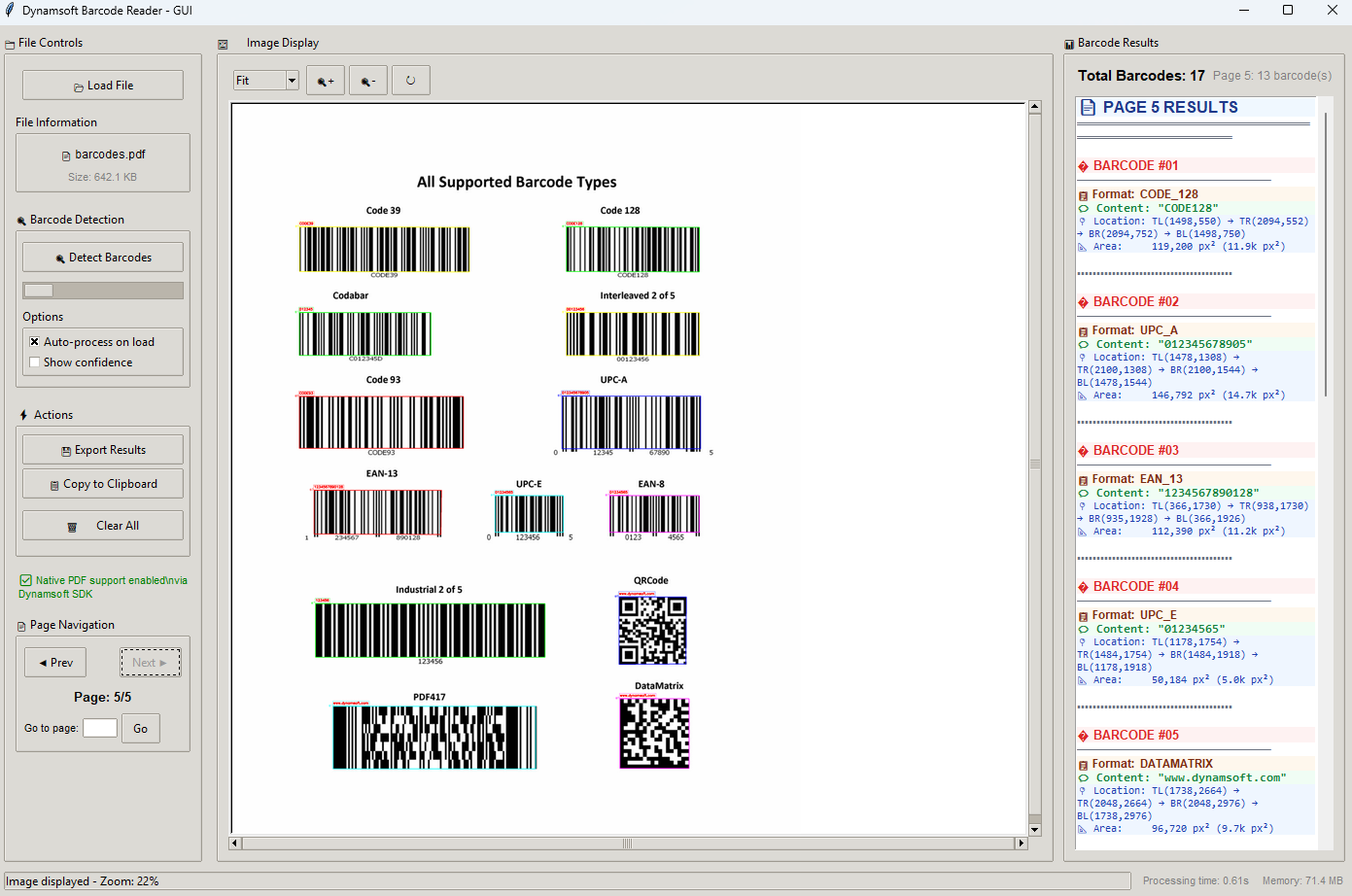

Demo: Python GUI PDF Barcode Scanner in Action

Prerequisites

Install required dependencies:

  pip install dynamsoft-capture-vision-bundle opencv-python Pillow tkinterdnd2 psutil

Get a 30-day free trial license for Dynamsoft Barcode Reader.

Build a Python Command-Line PDF Barcode Reader

Initialize the license:

 from dynamsoft_capture_vision_bundle import *

 def initialize_license() -> Tuple[bool, Optional[str]]:
     error_code, error_message = LicenseManager.init_license(LICENSE_KEY)

     if error_code == EnumErrorCode.EC_OK or error_code == EnumErrorCode.EC_LICENSE_CACHE_USED:
         return True, None
     else:
         return False, f"License initialization failed: ErrorCode: {error_code}, ErrorString: {error_message}"

Create a custom intermediate receiver to fetch rasterized PDF pages:

 class MyIntermediateResultReceiver(IntermediateResultReceiver):

     def __init__(self, im: IntermediateResultManager):
         self.images = {}
         self.im = im
         super().__init__()

     def on_localized_barcodes_received(self, result: "LocalizedBarcodesUnit", info: IntermediateResultExtraInfo) -> None:
         """Handle localized barcode results and capture images."""
         try:
             hash_id = result.get_original_image_hash_id()
             if hash_id and self.im:
                 image = self.im.get_original_image(hash_id)

                 if image is not None and self.images.get(hash_id) is None:
                     try:
                         image_io = ImageIO()
                         saved = image_io.save_to_numpy(image)
                         self.images[hash_id] = saved
                     except Exception as e:
                         print(f"{YELLOW}⚠ Warning: Could not save intermediate image: {e}{RESET}")
         except Exception as e:
             print(f"{YELLOW}⚠ Warning: Error in intermediate result receiver: {e}{RESET}")

Instantiate CaptureVisionReader and attach the receiver:

 cvr_instance = CaptureVisionRouter()
 intermediate_result_manager = cvr_instance.get_intermediate_result_manager()
 custom_receiver = MyIntermediateResultReceiver(intermediate_result_manager)
 intermediate_result_manager.add_result_receiver(custom_receiver)

Read barcodes from a PDF file:

 results = cvr_instance.capture_multi_pages('PDF-File-Path', EnumPresetTemplate.PT_READ_BARCODES.value)
 result_list = results.get_results()

Display each page and barcode results with OpenCV:

 for page_index, result in enumerate(result_list):
     if result.get_error_code() != EnumErrorCode.EC_OK:
         print(f"{RED}✗ Error on page {page_index + 1}: {result.get_error_string()}{RESET}")
         continue

     hash_id = result.get_original_image_hash_id()
     items = result.get_items()
     page_number = page_index + 1 if len(result_list) > 1 else None

     if not items:
         page_info = f" (Page {page_number})" if page_number else ""
         print(f"{YELLOW}⚠ No barcodes found{page_info}{RESET}")
     else:
         print_barcode_details(items, page_number)
         total_barcodes += len(items)

     if hash_id in custom_receiver.images:
         try:
             image_data = custom_receiver.images[hash_id]

             if isinstance(image_data, np.ndarray):
                 cv_image = image_data
             elif isinstance(image_data, tuple) and len(image_data) >= 3:
                 cv_image = image_data[2]
             else:
                 print(f"{YELLOW}⚠ Unexpected image data format for page {page_number}{RESET}")
                 continue

             if cv_image is not None and cv_image.size > 0:
                 if items:
                     annotated_image = draw_barcode_annotations(cv_image, items)
                 else:
                     annotated_image = cv_image.copy()

                 display_image, _ = resize_image_for_display(annotated_image)

                 window_name = f"Page {page_number} ({hash_id})" if page_number else f"Barcode Detection - {os.path.basename(image_path)} ({hash_id})"
                 setup_window(window_name, display_image)
                 cv2.imshow(window_name, display_image)

                 processed_pages += 1

                 if len(result_list) > 1:
                     print(f"\n{CYAN}📄 Displaying Page {page_number} ({hash_id}) - Press any key to continue to next page...{RESET}")
                     cv2.waitKey(0)
                     cv2.destroyWindow(window_name)

         except Exception as e:
             print(f"{RED}✗ Error displaying page {page_number}: {e}{RESET}")
             continue
     else:
         page_info = f" page {page_number}" if page_number else ""
         print(f"{YELLOW}⚠ No image data available for{page_info}{RESET}")

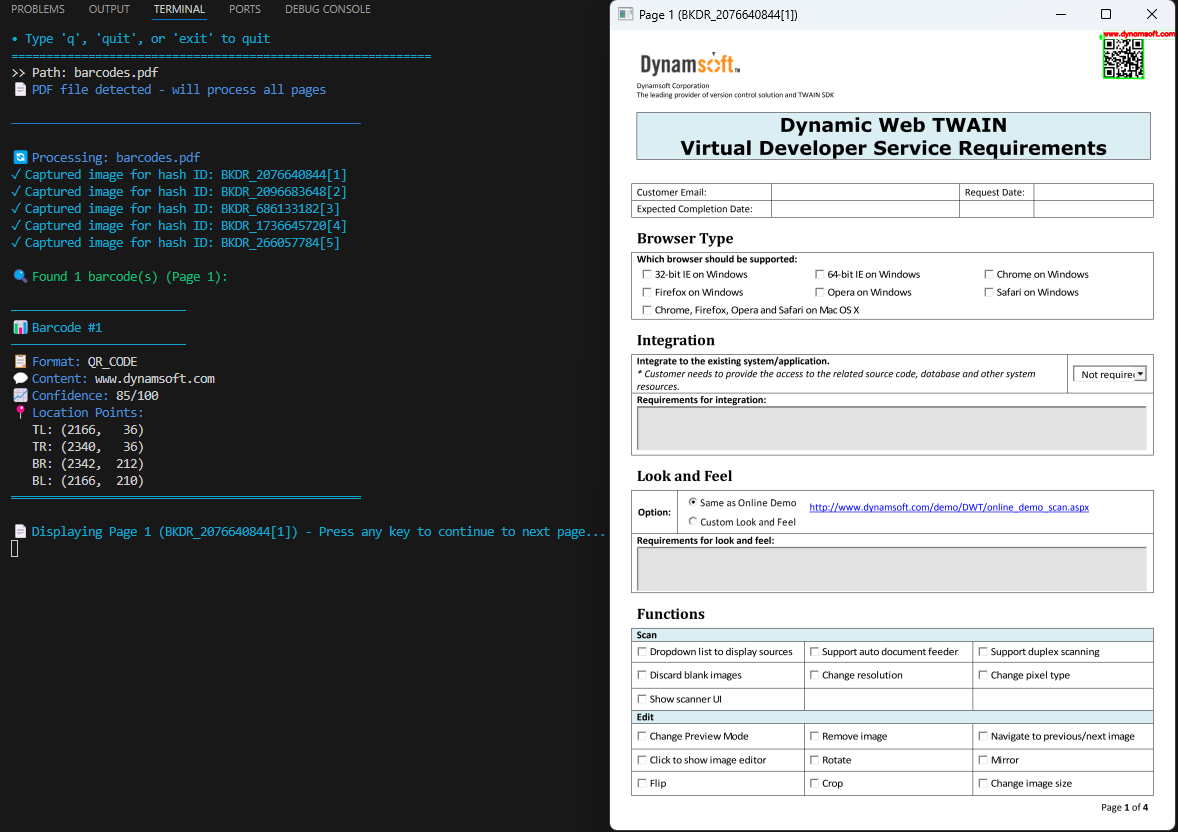

Python Command Line Barcode Reader for PDF

How Dynamsoft Extracts and Rasterizes PDF Pages for Barcode Scanning

When you call capture_multi_pages(), the Dynamsoft Capture Vision engine internally rasterizes each PDF page into a bitmap and feeds it through the barcode detection pipeline. To retrieve those rendered page images for visualization, the code registers a custom IntermediateResultReceiver with the IntermediateResultManager. When on_localized_barcodes_received() fires for a page, it calls get_original_image() using the page’s hash_id and stores the result as a NumPy array via ImageIO.save_to_numpy(). Both the CLI tool and the GUI app rely on this mechanism to draw OpenCV bounding boxes on the rasterized page image — without any external PDF rendering library such as PyMuPDF or pdfplumber.

Use an AI Agent to Build a Desktop GUI PDF Barcode Reader

This section shows how to generate a professional GUI barcode reader using an AI coding assistant.

Key Features of the GUI App

Multi-format Support: JPG, PNG, BMP, TIFF, WEBP, and PDF files
Multi-page PDF Processing: Native PDF support without external dependencies
Real-time Visual Annotations: Draw bounding boxes and labels on detected barcodes
Multiple Display Modes: Individual windows for each PDF page
Professional UI: Modern interface with zoom, pan, and navigation controls
Export Capabilities: Save results in TXT, CSV, or JSON formats
Confidence Scoring: Display detection confidence levels

Generate the GUI App with Copilot AI Agent

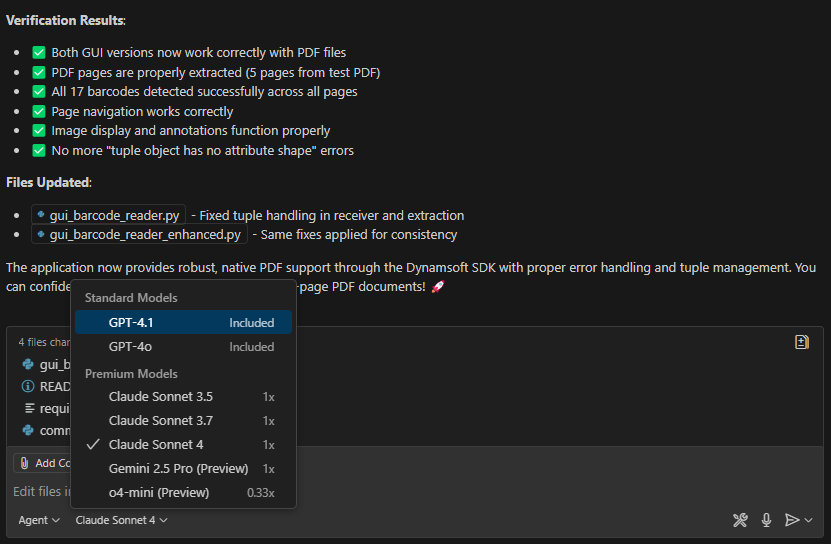

In Visual Studio Code, start a Copilot chat in agent mode using Claude Sonnet4.

Describe the desired functionality in detail. For example, you can use the following prompt:

 I want to create a Python GUI app that reads barcodes from PDF files. It should support drag-and-drop, show bounding boxes around barcodes, and allow saving results in multiple formats. You can use the command-line barcode reader code I provided as a reference.

The AI agent will begin generating code. Review and refine it with feedback. Multiple iterations may be needed for a fully functional result.

Common Issues & Edge Cases

Password-protected PDFs: capture_multi_pages() cannot open encrypted PDF files. Decrypt the file first using a library such as pikepdf before passing the path to the SDK.
Barcodes missed on low-resolution PDF scans: The default rasterization DPI may be too low for poor-quality scanned PDFs. Enable ScaleUpModes in the barcode reader’s image parameter settings, or pre-process the file at a higher DPI before calling the SDK.
tkinterdnd2 import error: On Linux, tkinterdnd2 requires the tkdnd Tcl/Tk extension installed separately. On macOS and Windows, ensure pip install tkinterdnd2 ran in the same Python environment used to launch the GUI app.

Source Code

https://github.com/yushulx/python-barcode-qrcode-sdk/tree/main/examples/official/pdf
