How to Build an Android MRZ Scanner with USB Camera and Dynamsoft Label Recognizer
Mar 19, 2026
In the previous article, we talked about how to scan barcodes using a USB camera on an Android device. In this article, we are going to scan MRZ (machine-readable zone) on passports and ID cards with Dynamsoft Label Recognizer.

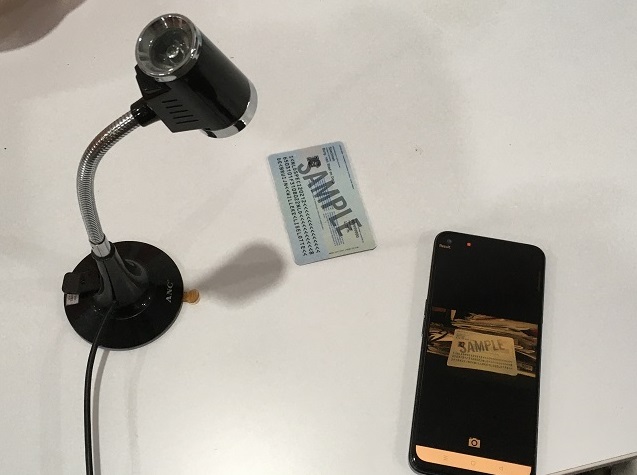

Here is a video of the result:
What you’ll build: A real-time Android MRZ scanner that reads passport and ID card machine-readable zones via a connected USB camera using Dynamsoft Label Recognizer.
Key Takeaways
- Dynamsoft Label Recognizer’s
CaptureVisionRoutercan scan MRZ from bitmap frames captured directly from a USB camera preview on Android. - The UVCCamera library (
libuvccamera.aar) enables USB camera access on Android without root, andUVCCameraHandlersimplifies preview and frame capture. - A
Timerpolling at 100 ms intervals provides continuous MRZ recognition on YUYV camera streams at 640×480 minimum resolution. - On Android 9+, the UVCCamera library requires
targetSdkVersion≤ 27 to function correctly.
Common Developer Questions
- How do I scan a passport MRZ using a USB camera on Android?
- What resolution does an Android USB camera need for reliable MRZ recognition?
- Why does my UVCCamera preview not work on Android 9 or higher?
Prerequisites
- Android Studio installed with a Java project template
- A UVC-compatible USB camera
- Get a 30-day free trial license for Dynamsoft Label Recognizer
Step 1: Create a New Android Project
Open Android Studio to create a new Java project.
Step 2: Add Required Dependencies
-
Add the UVCCamera library.
-
Download the following AARs and put them in the
app/libsfolder. -
In
settings.gradle, add the following lines:dependencyResolutionManagement { repositories { google() mavenCentral() maven { url 'https://raw.github.com/saki4510t/libcommon/master/repository/' } flatDir { dirs 'libs' } } } -
In the app’s
build.gradle, add the following lines:dependencies { implementation fileTree(dir: 'libs', include: ['*.aar','*.jar']) implementation("com.serenegiant:common:1.5.20") { exclude module: 'support-v4' } } -
You may also need to enable Jetifier in
gradle.properties.android.enableJetifier=true
-
-
Add the Dynamsoft SDK.
-
In
settings.gradle, add the following lines:dependencyResolutionManagement { repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS) repositories { maven { url "https://download2.dynamsoft.com/maven/aar" } } } -
In the app’s
build.gradle, add the following lines:dependencies { implementation "com.dynamsoft:dynamsoftcapturevisionbundle:2.6.1002" implementation 'com.dynamsoft:dynamsoftmrz:3.4.20' }
-
Step 3: Open the USB Camera
Let’s do the following to open the connected USB camera.
Add Camera Preview Controls
Add a UVCCameraTextureView for camera preview and an ImageButton to select and open cameras.
XML:
<com.serenegiant.widget.UVCCameraTextureView
android:id="@+id/camera_view"
android:layout_width="407dp"
android:layout_height="720dp"
android:layout_centerInParent="true"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent" />
<ImageButton
android:id="@+id/imageButton"
android:layout_width="50dp"
android:layout_height="50dp"
android:layout_marginBottom="16dp"
android:background="@android:color/transparent"
android:scaleType="fitCenter"
android:src="@android:drawable/ic_menu_camera"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent" />
In MainActivity:
private CameraViewInterface mUVCCameraView;
private ImageButton mCameraButton;
@Override
protected void onCreate(final Bundle savedInstanceState) {
//......
mCameraButton = findViewById(R.id.imageButton);
final View view = findViewById(R.id.camera_view);
mUVCCameraView = (CameraViewInterface)view;
}
Monitor USB Connection Events
-
Initialize a USBMonitor instance.
private USBMonitor mUSBMonitor; @Override protected void onCreate(Bundle savedInstanceState) { //...... mUSBMonitor = new USBMonitor(this, mOnDeviceConnectListener); } private final USBMonitor.OnDeviceConnectListener mOnDeviceConnectListener = new USBMonitor.OnDeviceConnectListener() { @Override public void onAttach(final UsbDevice device) { Toast.makeText(MainActivity.this, "USB_DEVICE_ATTACHED", Toast.LENGTH_SHORT).show(); } @Override public void onConnect(final UsbDevice device, final USBMonitor.UsbControlBlock ctrlBlock, final boolean createNew) { } @Override public void onDisconnect(final UsbDevice device, final USBMonitor.UsbControlBlock ctrlBlock) { } @Override public void onDettach(final UsbDevice device) { Toast.makeText(MainActivity.this, "USB_DEVICE_DETACHED", Toast.LENGTH_SHORT).show(); } @Override public void onCancel(final UsbDevice device) { } }; -
Manage the life cycle.
@Override protected void onStart() { super.onStart(); mUSBMonitor.register(); } @Override protected void onStop() { mUSBMonitor.unregister(); super.onStop(); } @Override public void onDestroy() { if (mUSBMonitor != null) { mUSBMonitor.destroy(); mUSBMonitor = null; } super.onDestroy(); }
Start the Camera Preview
The UVCCameraHandler class is used to handle USB cameras.
-
Initialize the handler.
/** * set true if you want to record movie using MediaSurfaceEncoder * (writing frame data into Surface camera from MediaCodec * by almost same way as USBCameratest2) * set false if you want to record movie using MediaVideoEncoder */ private static final boolean USE_SURFACE_ENCODER = false; /** * preview resolution(width) * if your camera does not support specific resolution and mode, * {@link UVCCamera#setPreviewSize(int, int, int)} throw exception */ private static final int PREVIEW_WIDTH = 640; // 640 /** * preview resolution(height) * if your camera does not support specific resolution and mode, * {@link UVCCamera#setPreviewSize(int, int, int)} throw exception */ private static final int PREVIEW_HEIGHT = 480; //480 /** * preview mode * if your camera does not support specific resolution and mode, * {@link UVCCamera#setPreviewSize(int, int, int)} throw exception * 0:YUYV, other:MJPEG */ private static final int PREVIEW_MODE = 0; // YUV private UVCCameraHandler mCameraHandler; @Override protected void onCreate(Bundle savedInstanceState) { //...... mCameraHandler = UVCCameraHandler.createHandler(this, mUVCCameraView, USE_SURFACE_ENCODER ? 0 : 1, PREVIEW_WIDTH, PREVIEW_HEIGHT, PREVIEW_MODE); } -
Add an
OnClickListenerfor the image button to start a camera selection dialog. The preview will be started after a camera is chosen.protected void onCreate(Bundle savedInstanceState) { //...... mCameraButton.setOnClickListener(mOnClickListener); //...... } private final View.OnClickListener mOnClickListener = new View.OnClickListener() { @Override public void onClick(final View view) { if ((mCameraHandler != null) && !mCameraHandler.isOpened()) { CameraDialog.showDialog(MainActivity.this); } else { mCameraHandler.close(); } } }; private final USBMonitor.OnDeviceConnectListener mOnDeviceConnectListener = new USBMonitor.OnDeviceConnectListener() { @Override public void onConnect(final UsbDevice device, final USBMonitor.UsbControlBlock ctrlBlock, final boolean createNew) { if (mCameraHandler != null) { mCameraHandler.open(ctrlBlock); startPreview(); } } } private void startPreview() { if (mCameraHandler != null) { final SurfaceTexture st = mUVCCameraView.getSurfaceTexture(); mCameraHandler.startPreview(new Surface(st)); } }The activity has to be modified as well to implements the library’s
CameraDialogParent:public class MainActivity extends BaseActivity implements CameraDialog.CameraDialogParentYou may find that the preview is distorted to fill the screen. You can keep its aspect ratio using the following code:
mUVCCameraView.setAspectRatio(PREVIEW_WIDTH / (double)PREVIEW_HEIGHT);
Step 4: Read MRZ from the USB Camera Preview
Now that we can show camera preview, we can use Dynamsoft Label Recognizer to scan MRZ.
Initialize Dynamsoft Label Recognizer
Initialize the SDK with a license key obtained from the Prerequisites section above.
private CaptureVisionRouter mRouter; //used to call Dynamsoft Label Recognizer to recognize MRZ
private CodeParser mParser; //used to parse the recognized MRZ
protected void onCreate(Bundle savedInstanceState) {
//......
if (savedInstanceState == null) {
LicenseManager.initLicense("LICENSE-KEY", this, (isSuccess, error) -> {
if (!isSuccess) {
error.printStackTrace();
}
});
}
mRouter = new CaptureVisionRouter(this);
mParser = new CodeParser(this);
}
Configure MRZ Recognition Settings
We need to update the default settings for MRZ recognition with the following JSON template.
