How to Optimize Parameters for Multiple QR Code Decoding in a Single Image with YOLO

Dynamsoft Barcode Reader SDK allows developers to customize algorithm parameters against different barcode scanning scenarios. There are some pre-configured parameter templates for decoding performance. No matter you pursue ultimate decoding speed, ultimate decoding accuracy, or the tradeoff between speed and accuracy, there is always an appropriate one. Since the parameters are critical, how can you set them correctly? For most barcode scanning scenarios, the default parameters should work very well. This article discusses a complex scenario: decoding multiple QR codes in a single image. We train a YOLO tiny model to determine the barcode type and expected QR code count used for Dynamsoft Barcode Reader SDK. You will see how the two parameters affect the decoding performance.

Installation

  • Dynamsoft Barcode Reader Python

      pip install dbr


  • OpenCV Python

      pip install opencv-python

  • Darknet

      git clone https://github.com/AlexeyAB/darknet.git


How to Get and Use Pre-configured Parameter Templates of Dynamsoft Barcode SDK

  1. Visit Dynamsoft Barcode Reader online demo
  2. Select a mode and then click Advanced Settings.

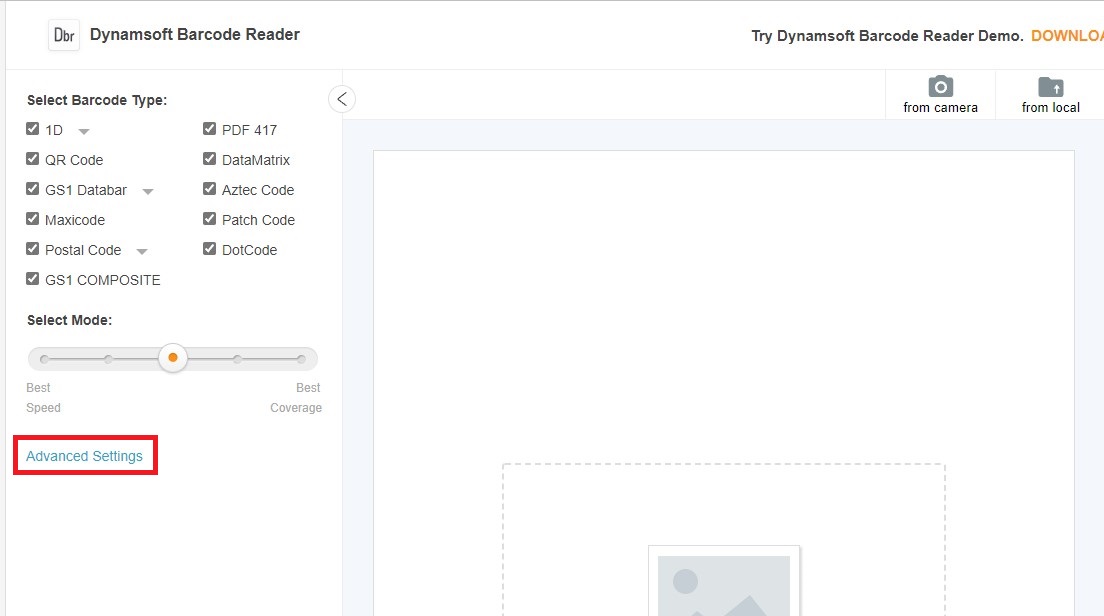

    online barcode reader

  3. Scroll down to the Template section. Change ResultCoordinateType to Pixel and then click the copy button.

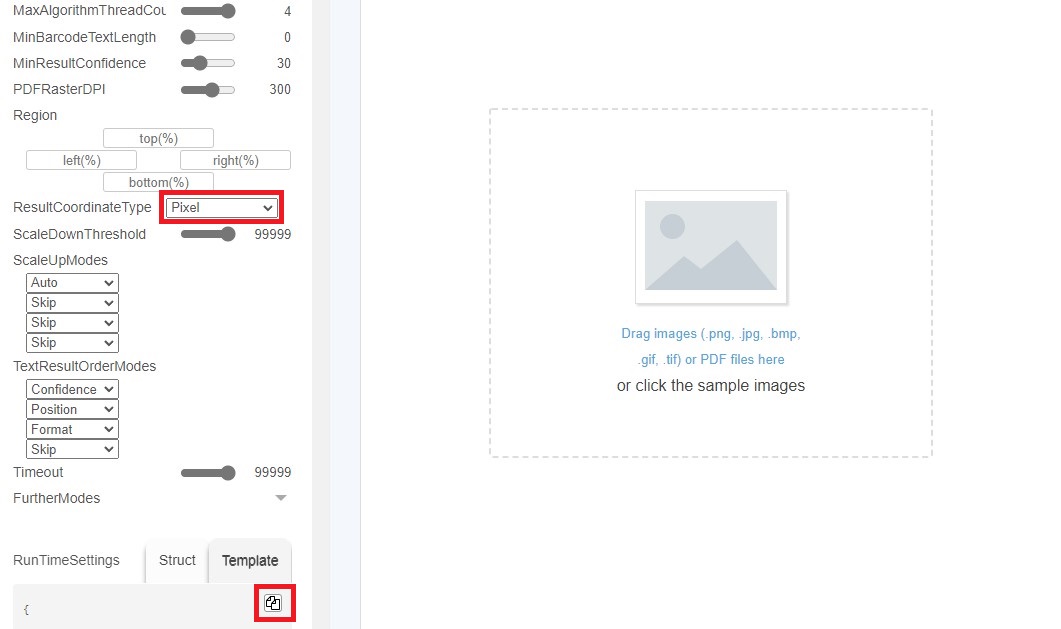

    Dynamsoft Barcode Reader template

  4. Save the template as a JSON file. For comparison, we save all templates from best speed to best coverage, and name them from l1.json to l5.json.

Here is a test image containing multiple QR codes:

multiple qr code

We can write a Python program to compare the QR code decoding performance based on different parameter templates:

import cv2 as cv
import numpy as np
import time
from dbr import *
import os

reader = BarcodeReader()
# Apply for a trial license: https://www.dynamsoft.com/customer/license/trialLicense/?product=dcv&package=cross-platform
license_key = "DLS2eyJoYW5kc2hha2VDb2RlIjoiMjAwMDAxLTE2NDk4Mjk3OTI2MzUiLCJvcmdhbml6YXRpb25JRCI6IjIwMDAwMSIsInNlc3Npb25QYXNzd29yZCI6IndTcGR6Vm05WDJrcEQ5YUoifQ=="
reader.init_license(license_key)

def decode(filename, template_name):
    frame = cv.imread(filename)

    template_path = os.path.dirname(os.path.abspath(__file__)) + os.path.sep + template_name
    settings = reader.reset_runtime_settings()
    error = reader.init_runtime_settings_with_file(template_path, EnumConflictMode.CM_OVERWRITE)

    before = time.time()
    results = reader.decode_buffer(frame)
    after = time.time()

    COLOR_RED = (0,0,255)
    thickness = 2
    if results != None:
        found = len(results)
        for result in results:
            text = result.barcode_text
            points = result.localization_result.localization_points
            data = np.array([[points[0][0], points[0][1]], [points[1][0], points[1][1]], [points[2][0], points[2][1]], [points[3][0], points[3][1]]])
            cv.drawContours(image=frame, contours=[data], contourIdx=-1, color=COLOR_RED, thickness=thickness, lineType=cv.LINE_AA)
            cv.putText(frame, result.barcode_text, points[0], cv.FONT_HERSHEY_SIMPLEX, 0.5, COLOR_RED)

        cv.putText(frame, '%.2f s, Qr found: %d' % (after - before, found), (20, 20), cv.FONT_HERSHEY_SIMPLEX, 0.5, COLOR_RED)
    else:
        cv.putText(frame, '%.2f s, Qr found: %d' % (after - before, 0), (20, 20), cv.FONT_HERSHEY_SIMPLEX, 0.5, COLOR_RED)

    cv.imshow(template_name, frame)

decode("test.jpg", "l1.json")
decode("test.jpg", "l2.json")
decode("test.jpg", "l3.json")
decode("test.jpg", "l4.json")
decode("test.jpg", "l5.json")
cv.waitKey(0)

Performance

Speed and Accuracy l1 l2 l3 l4 l5
Elapsed time 0.07 s 0.13 s 6.23 s 10.63 s 22.83 s
QR count 1 1 4 5 6

L1

dynamsoft barcode reader template 1

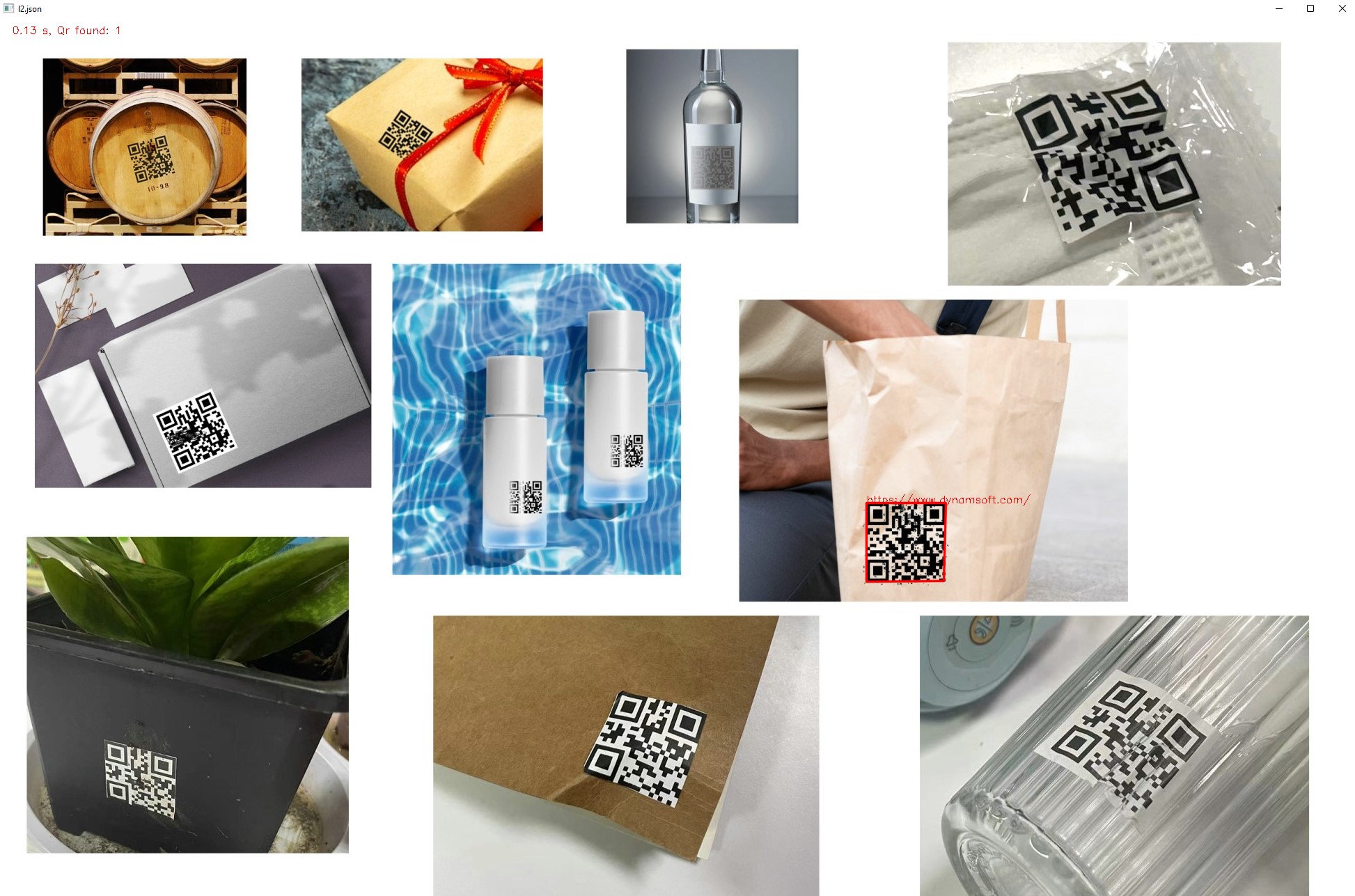

L2

dynamsoft barcode reader template 2

L3

dynamsoft barcode reader template 3

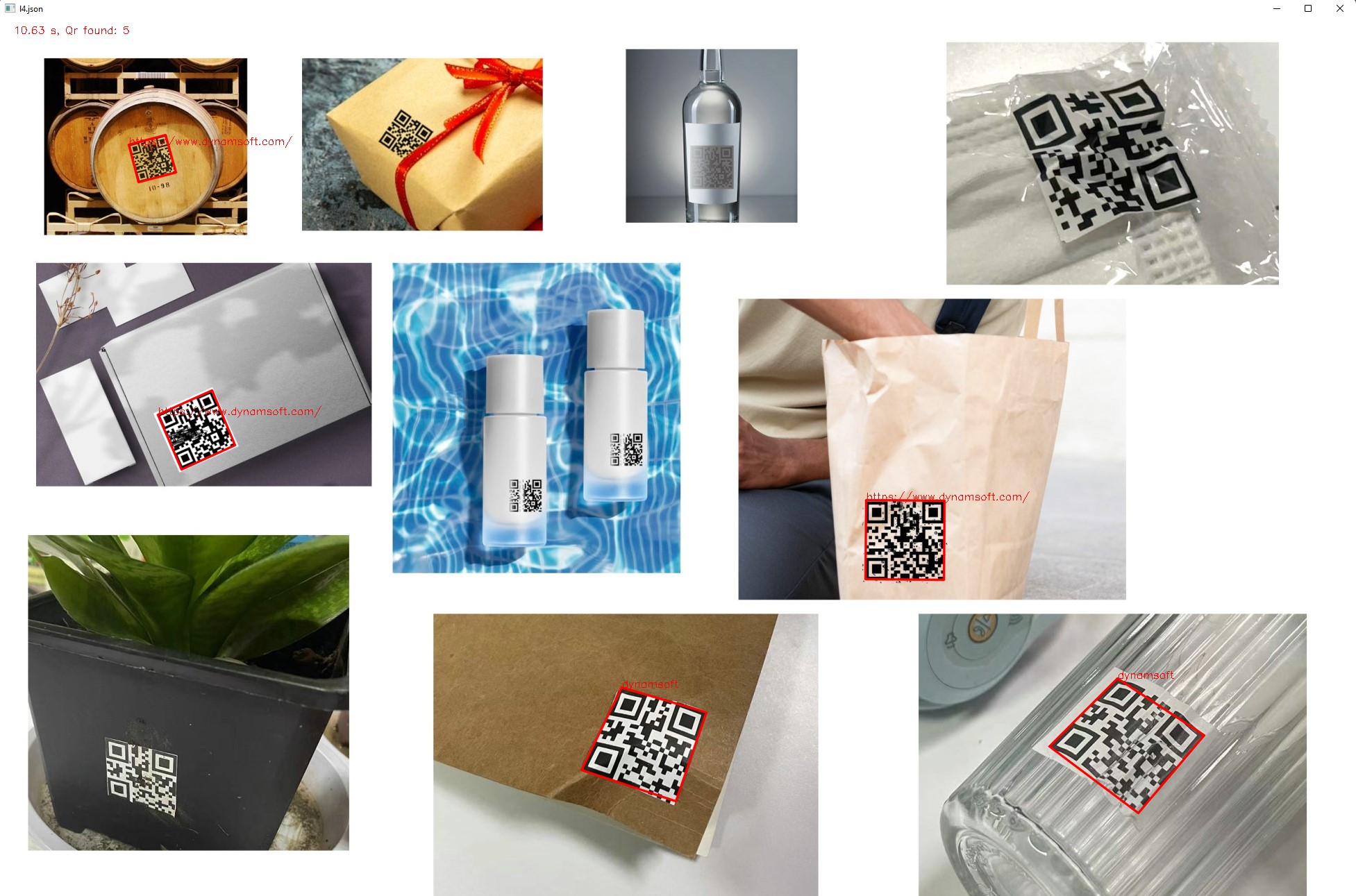

L4

dynamsoft barcode reader template 4

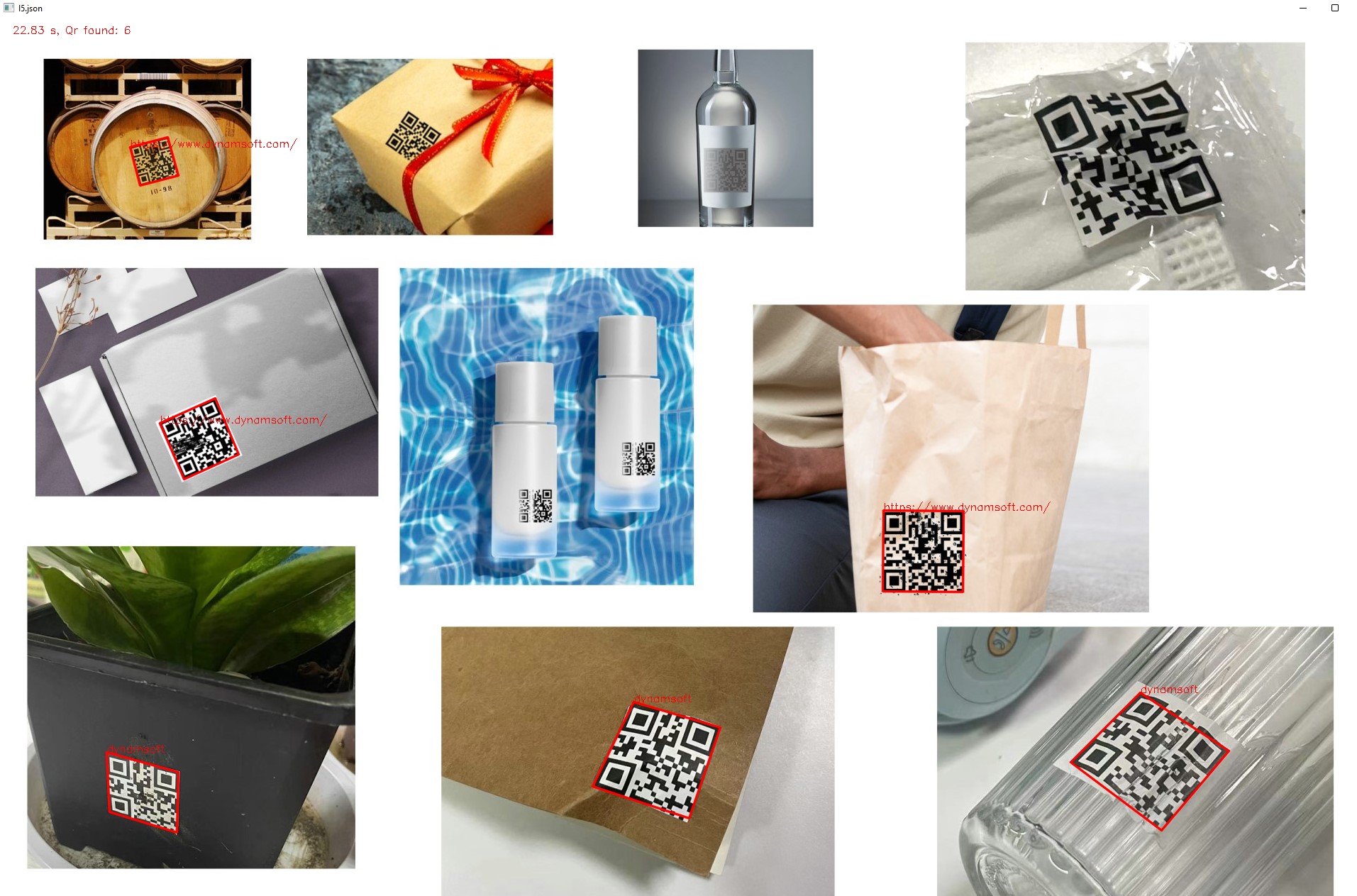

L5

dynamsoft barcode reader template 5

In multiple QR code scenario, we hope to find QR codes as many as possible. Although the l5 template found the most QR codes, the time cost is unbearable. Is it possible to speed up QR decoding if we know how many QR code are there in the image? Let’s verify this hypothesis by using machine learning to do QR code detection.

Training a QR Code Detector with YOLOv4

We use YOLO model to train a QR code detector.

  1. Get the public dataset with QR codes from boofcv.
  2. Annotate the QR images with labelImg.
  3. Download yolov4-tiny.conv.29
  4. Customize configuration file based on darknet/cfg/yolov4-tiny-custom.cfg:

     batch=64              # line 6
     subdivisions=16       # line 7
     width=640             # line 8
     height=640            # line 9

     max_batches = 6000    # line 20

     steps=4800,5400       # line 22

     filters=18            # 212
     classes=1             # 220

     filters=18            # 263
     classes=1             # 269

  5. Create obj.data file:

     QR_CODE

  6. Create obj.names file:

     classes = 1
     train  = data/train.txt
     valid  = data/test.txt
     names = data/obj.names
     backup = backup/

  7. Use the following script to generate the training and validation data:

     import os
     import re
     from shutil import copyfile
     import argparse
     import math
     import random


     def iterate_dir(source, ratio):
         source = source.replace('\\', '/')
         train_dir = 'data/obj/train'
         test_dir = 'data/obj/test'

         if not os.path.exists(train_dir):
             os.makedirs(train_dir)
         if not os.path.exists(test_dir):
             os.makedirs(test_dir)

         images = [f for f in os.listdir(source)
                   if re.search(r'([a-zA-Z0-9\s_\\.\-\(\):])+(?i)(.jpg|.jpeg|.png)$', f)]

         num_images = len(images)
         num_test_images = math.ceil(ratio*num_images)

         image_files = []

         for i in range(num_test_images):
             idx = random.randint(0, len(images)-1)
             filename = images[idx]
             image_files.append("data/obj/test/" + filename)
             copyfile(os.path.join(source, filename),
                     os.path.join(test_dir, filename))
             txt_filename = os.path.splitext(filename)[0]+'.txt'
             copyfile(os.path.join(source, txt_filename),
                     os.path.join(test_dir, txt_filename))

             images.remove(images[idx])

         with open("data/test.txt", "w") as outfile:
             for image in image_files:
                 outfile.write(image)
                 outfile.write("\n")
             outfile.close()

         image_files = []

         for filename in images:
             image_files.append("data/obj/train/" + filename)
             copyfile(os.path.join(source, filename),
                     os.path.join(train_dir, filename))
             txt_filename = os.path.splitext(filename)[0]+'.txt'
             copyfile(os.path.join(source, txt_filename),
                     os.path.join(train_dir, txt_filename))

         with open("data/train.txt", "w") as outfile:
             for image in image_files:
                 outfile.write(image)
                 outfile.write("\n")
             outfile.close()


     def main():
         parser = argparse.ArgumentParser(description="Partition dataset of images into training and testing sets",
                                         formatter_class=argparse.RawTextHelpFormatter)
         parser.add_argument(
             '-i', '--imageDir',
             help='Path to the folder where the image dataset is stored. If not specified, the CWD will be used.',
             type=str,
             default=os.getcwd()
         )
         parser.add_argument(
             '-r', '--ratio',
             help='The ratio of the number of test images over the total number of images. The default is 0.1.',
             default=0.1,
             type=float)
         args = parser.parse_args()
         iterate_dir(args.imageDir, args.ratio)

     if __name__ == '__main__':
         main()

     python partition_dataset.py -i ../images -r 0.1

  8. Train the model:

     darknet detector test data/obj.data yolov4-tiny-custom.cfg backup/yolov4-tiny-custom_last.weights sample/test.png

  9. Validate the model:

     darknet detector test data/obj.data yolov4-tiny-custom.cfg backup/yolov4-tiny-custom_last.weights sample/test.png


In the following code, we use the machine learning model to detect the QR codes in the image firstly. As a QR code is found, we can set the parameters: expected_barcodes_count = 1 and barcode_format_ids = EnumBarcodeFormat.BF_QR_CODE:

import cv2 as cv
import numpy as np
import time
from dbr import *
import os

# Initialize Dynamsoft Barcode Reader
reader = BarcodeReader()
# Apply for a trial license: https://www.dynamsoft.com/customer/license/trialLicense/?product=dcv&package=cross-platform
license_key = "DLS2eyJoYW5kc2hha2VDb2RlIjoiMjAwMDAxLTE2NDk4Mjk3OTI2MzUiLCJvcmdhbml6YXRpb25JRCI6IjIwMDAwMSIsInNlc3Npb25QYXNzd29yZCI6IndTcGR6Vm05WDJrcEQ5YUoifQ=="
reader.init_license(license_key)

# Load YOLOv4-tiny model
class_names = open('obj.names').read().strip().split('\n')
net = cv.dnn.readNetFromDarknet('yolov4-tiny-custom.cfg', 'yolov4-tiny-custom_last.weights')
net.setPreferableBackend(cv.dnn.DNN_BACKEND_OPENCV)

model = cv.dnn_DetectionModel(net)
width = 640
height = 640

CONFIDENCE_THRESHOLD = 0.2
NMS_THRESHOLD = 0.4
COLOR_RED = (0,0,255)
COLOR_BLUE = (255,0,0)

def decode(filename, template_name):
    frame = cv.imread(filename)

    if frame.shape[1] > 1024 or frame.shape[0] > 1024:
        width = 1024
        height = 1024
    model.setInputParams(size=(width, height), scale=1/255, swapRB=True)

    template_path = os.path.dirname(os.path.abspath(__file__)) + os.path.sep + template_name
    settings = reader.reset_runtime_settings()
    error = reader.init_runtime_settings_with_file(template_path, EnumConflictMode.CM_OVERWRITE)

    # YOLO detection
    yolo_start = time.time()
    classes, scores, boxes = model.detect(frame, CONFIDENCE_THRESHOLD, NMS_THRESHOLD)
    yolo_end = time.time()
    print("YOLO detection time: %.2f s" % (yolo_end - yolo_start))

    index = 0
    dbr_found = 0
    total_dbr_time = 0
    for (classid, score, box) in zip(classes, scores, boxes):
        label = "%s : %f" % (class_names[classid], score)
        tmp = frame[box[1]:box[1] + box[3], box[0]: box[0] + box[2]]

        # Set parameters for DBR
        settings = reader.get_runtime_settings()
        settings.expected_barcodes_count = 1
        settings.barcode_format_ids = EnumBarcodeFormat.BF_QR_CODE
        reader.update_runtime_settings(settings)

        before = time.time()
        results = reader.decode_buffer(tmp)
        after = time.time()

        total_dbr_time += after - before

        if results != None:
            found = len(results)
            for result in results:
                text = result.barcode_text
                dbr_found += 1
                points = result.localization_result.localization_points
                data = np.array([[points[0][0], points[0][1]], [points[1][0], points[1][1]], [points[2][0], points[2][1]], [points[3][0], points[3][1]]])
                cv.drawContours(image=tmp, contours=[data], contourIdx=-1, color=(0, 0, 255), thickness=2, lineType=cv.LINE_AA)
                cv.putText(frame, text, (box[0], box[1] + 10), cv.FONT_HERSHEY_SIMPLEX, 0.5, COLOR_RED)
        else:
            found = 0

        index += 1
        cv.rectangle(frame, box, COLOR_BLUE, 2)
        cv.putText(frame, label, (box[0], box[1] - 10), cv.FONT_HERSHEY_SIMPLEX, 0.5, COLOR_BLUE, 2)

    cv.putText(frame, 'DBR+YOLO %.2f s, DBR found: %d, YOLO found: %d' % (yolo_end - yolo_start + total_dbr_time, dbr_found, len(classes)), (0, 15), cv.FONT_HERSHEY_SIMPLEX, 0.5, COLOR_RED)
    cv.imshow(template_name, frame)

decode("test.jpg", "l1.json")
decode("test.jpg", "l2.json")
decode("test.jpg", "l3.json")
decode("test.jpg", "l4.json")
decode("test.jpg", "l5.json")
cv.waitKey(0)

Performance

Speed and Accuracy l1 l2 l3 l4 l5
Elapsed time 0.23 s 0.4 s 2.84 s 3.99 s 7.79 s
QR count 4 4 5 6 6

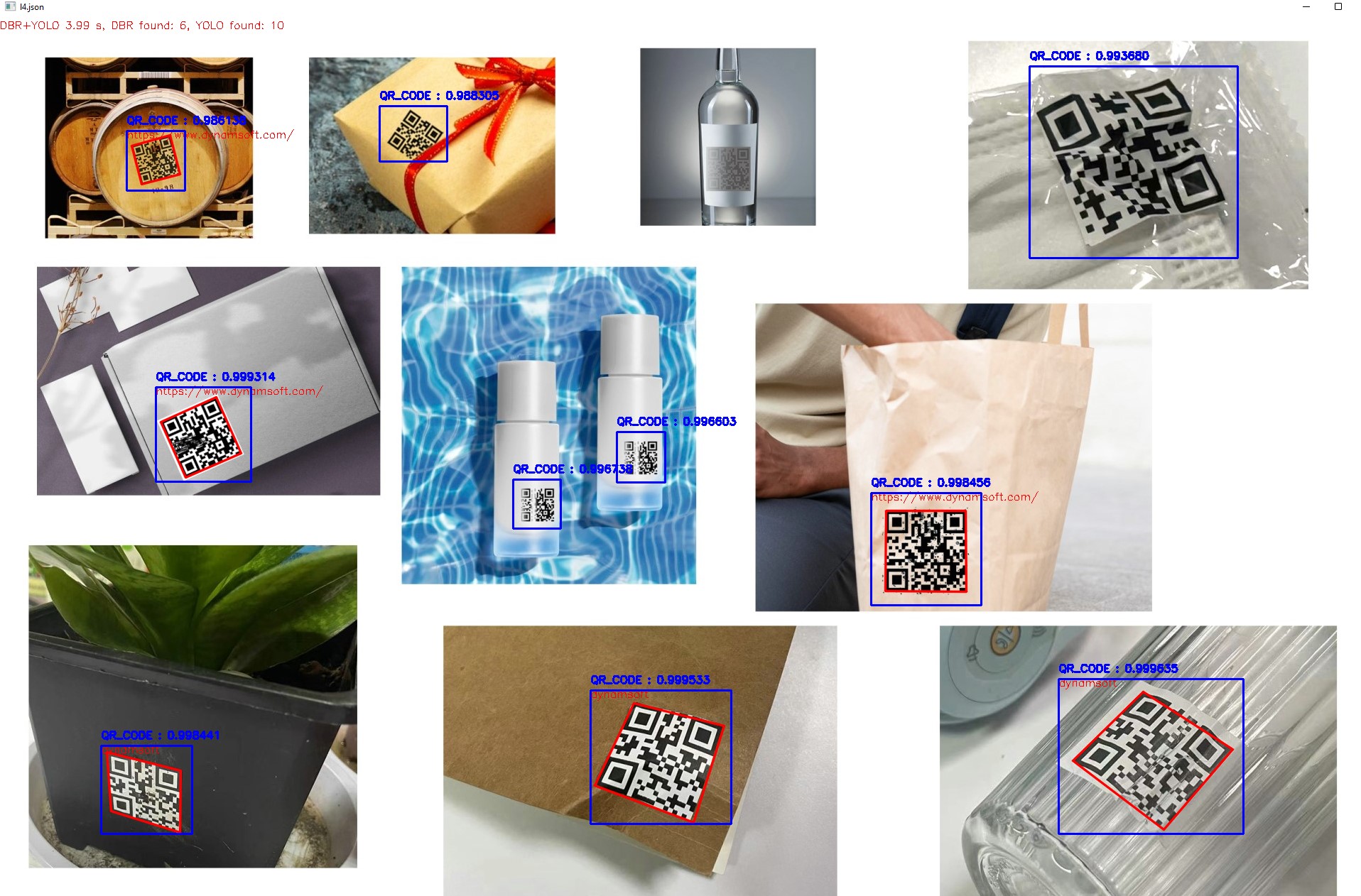

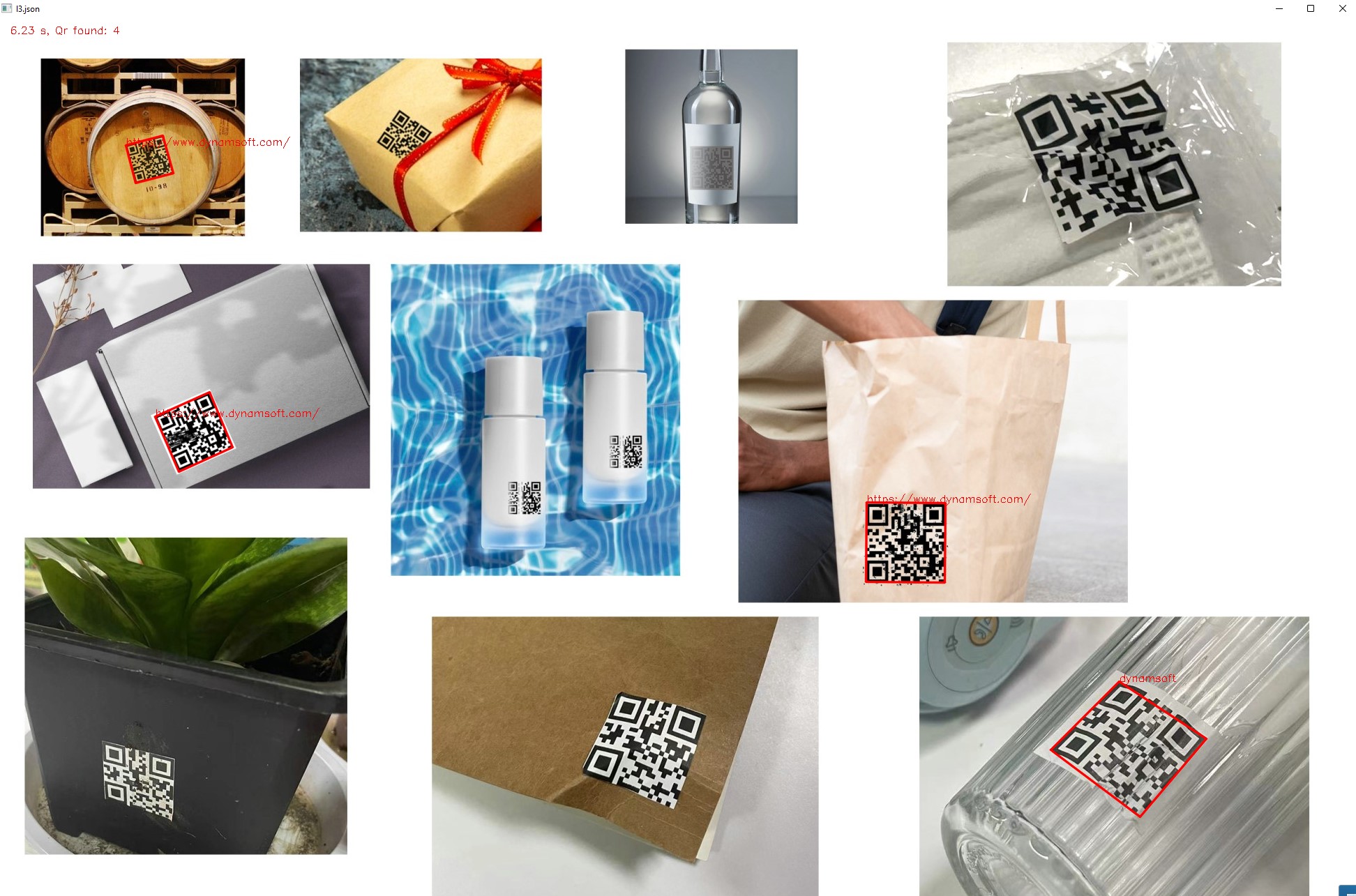

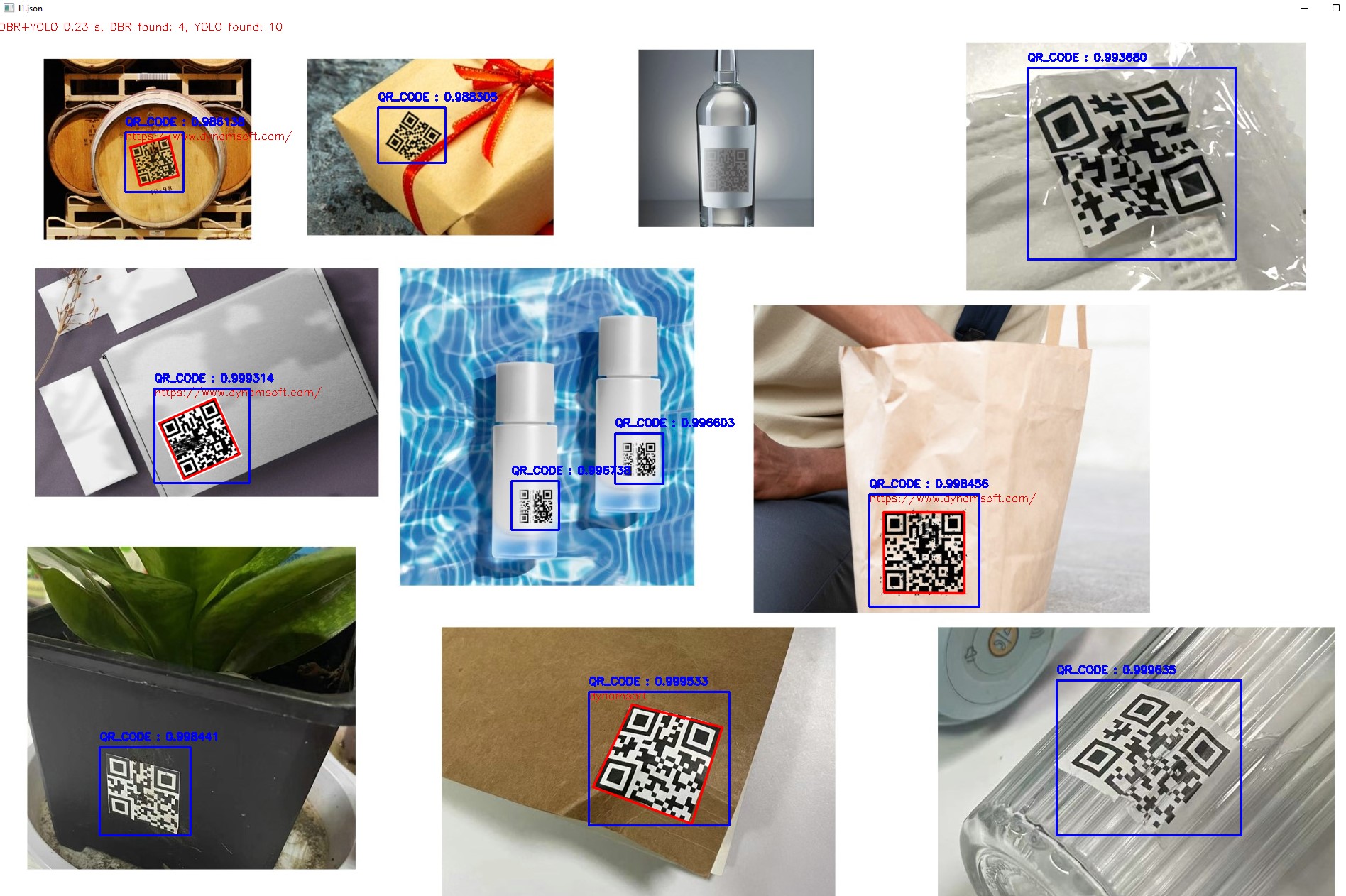

L1 + YOLO

dynamsoft barcode reader template 1

L2 + YOLO

dynamsoft barcode reader template 2

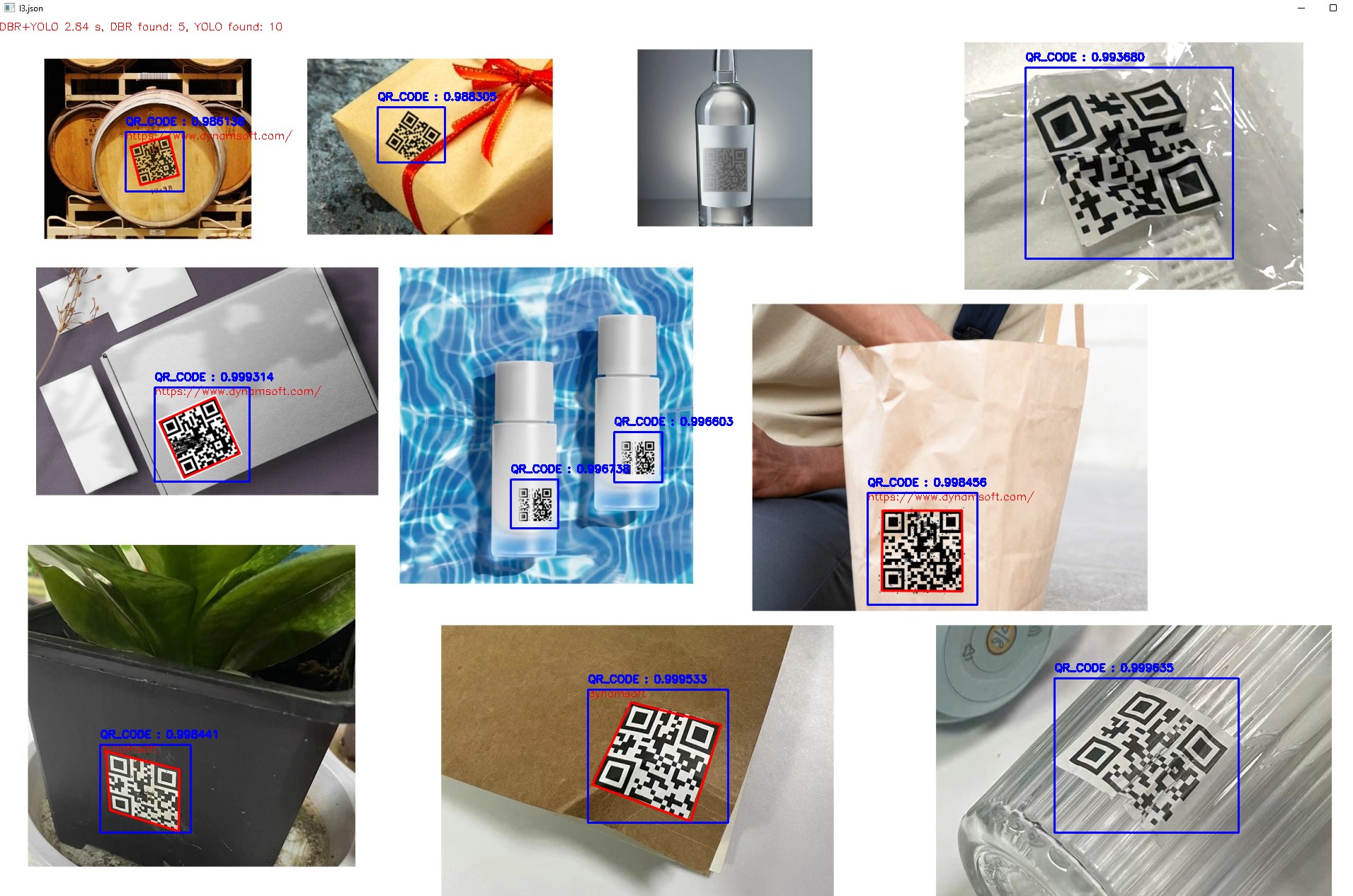

L3 + + YOLO

dynamsoft barcode reader template 3

L4 + YOLO

dynamsoft barcode reader template 4

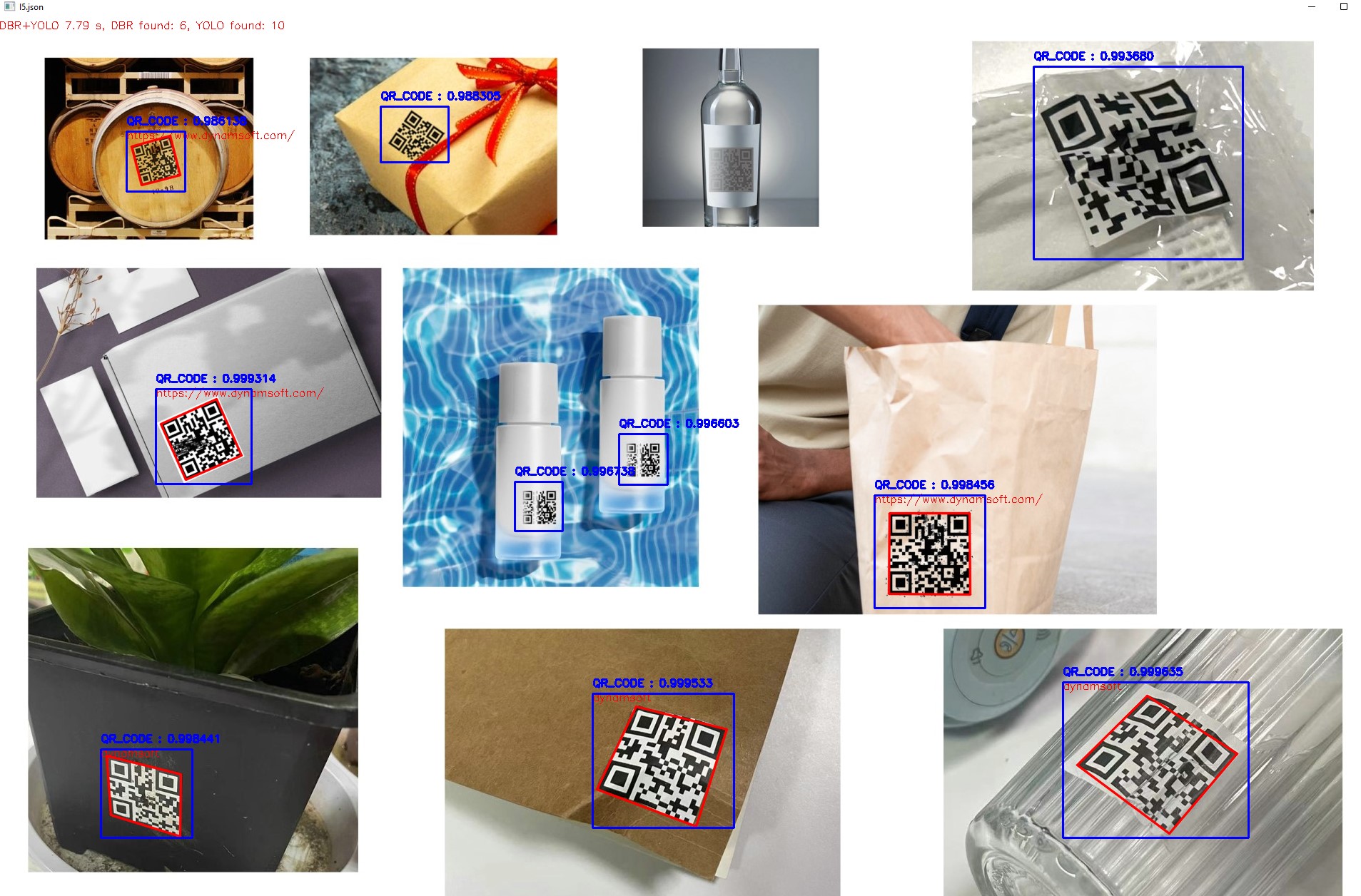

L5 + YOLO

dynamsoft barcode reader template 5

Before using machine learning, to find 6 QR codes in this test image, we need to use l5 template and take about 22.83 seconds. After using YOLO detection, the time cost is reduced to 3.99 seconds.

Benchmark for Boofcv QR Image Set

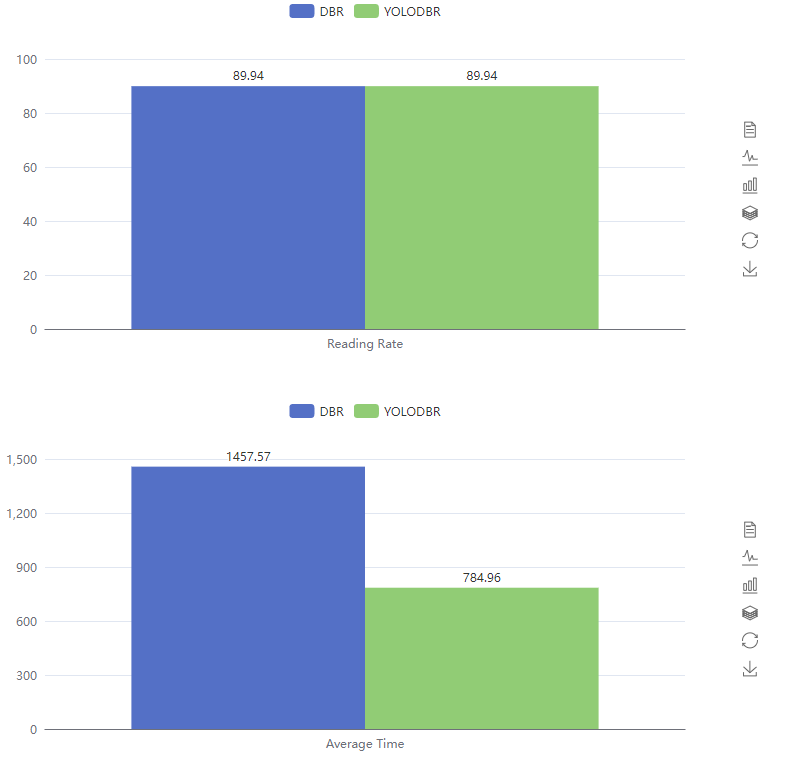

We benchmark the boofcv QR image set with l3 template which is the most balanced one. The decoding speed is dramatically improved.

QR code benchmark

Source Code

https://github.com/yushulx/barcode-qrcode-images/tree/main/darknet/sample/qr_decoding
