ZXing WASM vs. Dynamsoft Barcode Reader: A JavaScript Barcode Benchmark on 7,894 Real Images

This benchmark scores two browser barcode readers — the open-source zxing-wasm package (3.1.2, the ZXing-C++ core compiled to WebAssembly) and Dynamsoft Barcode Reader (dynamsoft-barcode-reader-bundle 11.6.5000) — on 7,894 deduplicated images drawn from BarBeR, a public real-world barcode dataset. Every decode result ships with the project so any reviewer can re-check the numbers, and because the run reuses the exact audited manifest from the C++ and Python articles in this series, the three reads as one controlled experiment: identical input, identical scoring rules, a different language/runtime binding.

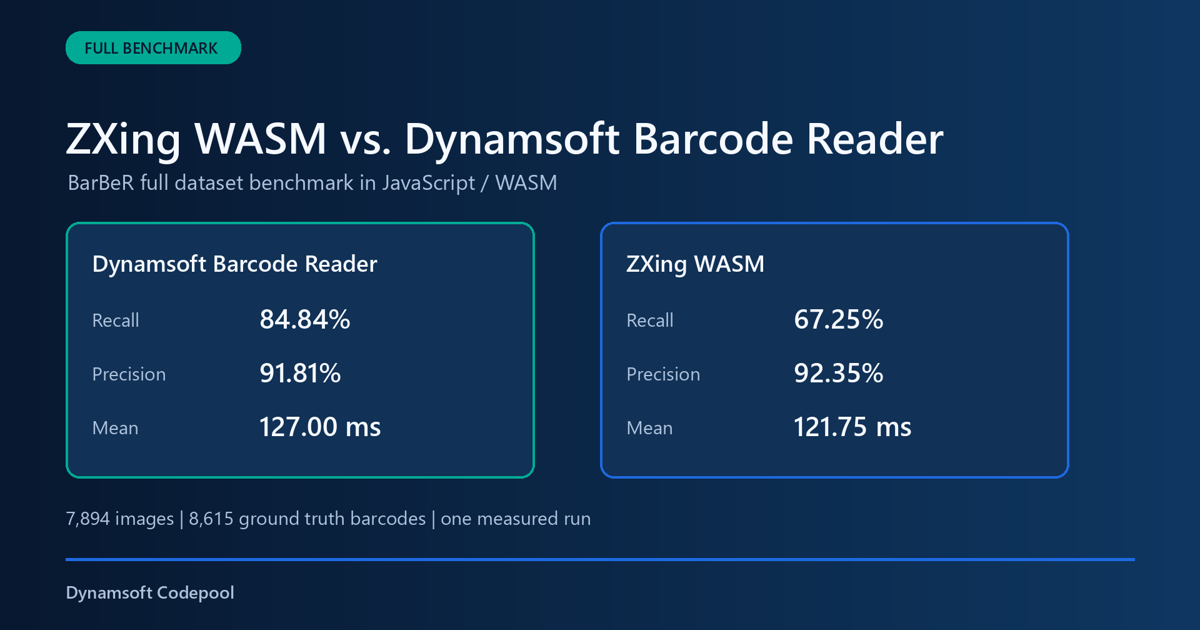

ZXing WASM and Dynamsoft Barcode Reader JavaScript benchmark

What you’ll build: A browser-driven JavaScript benchmark that streams BarBeR images through a Node collector, times zxing-wasm and Dynamsoft’s CaptureVisionRouter on identical pixels, validates the result records, and ships the raw JSONL stream, a combined JSON package, and a self-contained HTML report.

Key Takeaways

  • The scoring manifest covers 7,894 deduplicated images with 8,615 audited ground truth values. Scoring excludes 204 unreliable ^ placeholders, leaving 8,411 scored instances — the same rules used by the C++ and Python runs.
  • Each image is fetched once and decoded into an ImageBitmap, then painted onto a shared canvas; only the decoder call is timed, so the fetch and bitmap-decode stage stays outside the clock.
  • On a single full-dataset run with DBR’s ReadBarcodes_Default template, Dynamsoft Barcode Reader reached 90.81% recall against 70.84% for zxing-wasm, reading 1,680 more of the 8,411 scored ground truth barcodes.
  • Dynamsoft held a slight precision edge (95.97% vs. 94.96%). zxing-wasm kept a faster median decode time (70.20 ms vs. 95.50 ms), so the trade-off is recall and tail latency versus a free, inspectable stack.
  • The run reuses the series manifest, so these numbers can be diffed directly against the C++ and Python runs: all three now use DBR 11.6.5000 and ZXing-C++ 3.1.x.

Common Developer Questions

What is a good zxing-wasm alternative for difficult barcodes?

Dynamsoft Barcode Reader is the stronger alternative in this benchmark when images are damaged, crowded, low-contrast, or mixed-symbology. On the scored BarBeR set it read 7,638 of 8,411 ground truth instances for 90.81% recall, versus 5,958 instances and 70.84% recall for zxing-wasm — a lead of 1,680 barcodes and 19.97 percentage points. The gap is largest exactly where “difficult” lives: on CODE_128 it read 1,056 of 1,120 against zxing-wasm’s 361, and on EAN_13 it read 4,727 of 4,857 against 3,814. zxing-wasm remains a solid free baseline for clean, controlled input.

When should I replace ZXing with a commercial barcode SDK?

Replace ZXing when the cost of a missed scan outweighs the license fee — production workflows where unread barcodes mean manual rework, failed checkouts, or lost parcels. In this run zxing-wasm left 2,067 ground truth barcodes unread (not_found) against Dynamsoft’s 482, and its P95 decode time was 389.70 ms versus 298.40 ms, so difficult images are both less likely to decode and slower when they do. Stay on ZXing when your input is controlled and clean, you need inspectable open source with no licensing, and a ~71% read rate on hard images is acceptable.

How do I migrate from zxing-wasm to Dynamsoft Barcode Reader?

Swap the decode call and keep the rest of your pipeline. Where zxing-wasm takes an ImageData or Blob and returns {format, text} objects, Dynamsoft uses a CaptureVisionRouter that accepts a canvas, image, or ImageData and returns barcode items with formatString and text. The migration section below shows both calls side by side; the format names map almost one-to-one (EAN13 → EAN_13, QRCode → QR_CODE), and the payload text is directly comparable, so existing result-handling code carries over with a small format-normalization step.

Do the JavaScript results match the C++ and Python benchmarks on the same images?

Broadly yes on accuracy, with runtime-driven deltas. All three runs now use DBR 11.6.5000, so the SDK version is no longer a variable: the browser bundle reached 90.81% recall, against 92.81% for C++ and 93.14% for Python. zxing-wasm 3.1.2 scored 70.84%, against 71.70% for ZXing-C++ 3.1.1 in C++ and 71.03% in Python. The roughly two-point shortfall against the native runs comes from the image path (JPEG → ImageBitmap → RGBA canvas), not the engine build; the WASM boundary shows up mostly in decode time.

Full BarBeR Benchmark Video

The recording walks through the shared input path, the per-image timing, and the final accuracy and speed numbers.

Prerequisites

  • Node.js 18 or later (developed on Node 24) for the collector and static/image server
  • A modern browser (Chrome, Edge, or Firefox) to run the WASM decoders
  • The BarBeR dataset images and the audited series manifest
  • zxing-wasm 3.1.2 and dynamsoft-barcode-reader-bundle 11.6.5000, both loaded from pinned CDN builds
  • A valid Dynamsoft license key. Get a 30-day free trial license.

Start the collector/static server, pointing it at your BarBeR images:

node src/server.mjs `
  --images "D:/images/public-barcode-dataset/BarBeR - Dataset/dataset/images" `
  --manifest manifests/benchmark_manifest.jsonl `
  --output results/full `
  --port 8790

Then open http://localhost:8790/, click Initialize SDKs, and click Run benchmark.

Step 1: Reuse the Audited BarBeR Manifest

This project does not re-audit the dataset. It loads the exact benchmark_manifest.jsonl produced by the series audit — 7,894 unique images carrying 8,615 audited barcode instances, of which 8,411 are scored after excluding ^, traced to BarBeR’s VIA annotations after dropping 853 images without reliable payload ground truth and one byte-identical duplicate. Reusing the manifest is what makes the three articles one controlled experiment: the C++, Python, and JavaScript runs all score against the same images, the same ground truth, and the same matching rules.

The server reads the manifest, hashes it, and streams each referenced image to the browser on request. The audit trail (source annotation hashes, exclusion lists, duplicate hits) ships in manifests/barber_source_files.json.

Step 2: Decode Images with Both JavaScript Readers

Each image is fetched once and decoded into an ImageBitmap, then painted onto a shared canvas. That stage is recorded separately as image_load_ns and never enters the decode statistics. Both readers then read the same pixels.

zxing-wasm takes an ImageData built from the canvas:

const imageData = ctx.getImageData(0, 0, canvas.width, canvas.height);
const results = await ZXingWASM.readBarcodes(imageData);
for (const r of results) {
  const text = r.text;          // decoded payload
  const format = r.format;      // e.g. "EAN13", "QRCode", "Code128"
}

Dynamsoft Barcode Reader is reached through the Capture Vision router’s barcode preset, reading the same canvas:

await Dynamsoft.License.LicenseManager.initLicense(licenseKey, true);
await Dynamsoft.Core.CoreModule.loadWasm(["DBR"]);
const cvRouter = await Dynamsoft.CVR.CaptureVisionRouter.createInstance();

const captured = await cvRouter.capture(
  canvas,
  Dynamsoft.CVR.EnumPresetTemplate.PT_READ_BARCODES
);
for (const item of captured.getItems()) {
  const text = item.text;             // decoded payload
  const format = item.formatString;   // e.g. "EAN_13", "QR_CODE", "CODE_128"
}

Only the reader call is timed, recorded as decode_ns. Decoder order is shuffled per (sample, repetition) with a seeded PRNG so neither side gets a systematic warm-up advantage.

Step 3: Run the Benchmark

The browser walks the manifest and POSTs each per-image record to the Node collector, which scores it against the manifest ground truth and appends it to results.jsonl. The append-only stream keeps long runs resumable: the collector tracks which (sample, decoder, repetition) records already exist, so an interrupted pass picks up where it stopped instead of re-decoding.

Each decoder made one timed pass over all 7,894 images, and accuracy is scored against the 8,411 scored ground truth instances after excluding 204 ^ placeholders. Test machine: Windows 11, a 13th-generation Intel Core i5-13400F with 16 logical processors, Node v22.22.2 driving headless Microsoft Edge 156 (Chromium) with Puppeteer, and one benchmark process at a time.

Step 4: Validate Results

Validation covers the record schema, image and ground truth counts, repetition consistency, summary totals, and explicit decoder errors.

node tools/validate_results.mjs `
  --results results/full/results.jsonl `
  --summary results/full/summary.json `
  --expected-images 7894 `
  --expected-ground-truth 8615 `
  --expected-repetitions 1

Five BarBeR images use a JPEG encoding the browser’s createImageBitmap cannot decode; both readers receive the same explicit input_pipeline_error for those images, so the comparison stays fair and those five images are recorded as input_pipeline_error, not as no-reads. This is a browser image-decode limitation, not a decoder limitation — the native C++ and Python runs decoded these files through OpenCV.

Step 5: Inspect Accuracy and Decode Time

Decoder Correct Recall Precision Wrong reads No read Mean decode time Median decode time P95 decode time
Dynamsoft Barcode Reader 11.6.5000 7,638 / 8,411 90.81% 95.97% 90 (1.07%) 683 (8.12%) 121.05 ms 95.50 ms 298.40 ms
zxing-wasm 3.1.2 5,958 / 8,411 70.84% 94.96% 154 (1.83%) 2,299 (27.33%) 116.22 ms 70.20 ms 389.70 ms

Failures are split into wrong reads (a result was returned but did not match the ground truth) and no read (no result for that ground-truth barcode, including unsupported formats), so correct + wrong reads + no read equals the 8,411 scored instances. Extra results returned beyond the ground truth are counted in precision, not in this split.

The headline gap is recall: Dynamsoft Barcode Reader matched 1,680 more ground truth instances than zxing-wasm in this run, a lead of 19.97 percentage points. Dynamsoft also held 1.01 percentage points better precision. zxing-wasm kept a faster median decode time, but its P95 decode time was 91.30 ms slower, so difficult images are both less likely to decode and slower when they do. Treat the numbers as a measured trade-off on this dataset, not a universal ranking for every barcode workload.

Scoring normalizes UPC-A to its zero-prefixed EAN-13 equivalent, strips CODE_39 start/stop asterisks, strips CODE_128 / GS1-128 leading {GS}, {FNC1}, and ASCII GS markers, unescapes HTML entities, drops trailing newlines and a leading \000001 escape, excludes ground truth payload ^, and folds DBR’s CODE39EXTENDED results into CODE_39 whenever the payload matches. The per-format breakdown shows where the recall gap comes from:

Format Dynamsoft correct / eligible zxing-wasm correct / eligible
EAN_13 4,727 / 4,857 3,814 / 4,857
CODE_128 1,056 / 1,120 361 / 1,120
QR_CODE 1,111 / 1,324 1,115 / 1,324
UPC_A 313 / 319 257 / 319
PDF_417 44 / 87 32 / 87
DATA_MATRIX 101 / 110 98 / 110
CODE_39 152 / 198 150 / 198
ITF 55 / 71 58 / 71

Disclosure: Dynamsoft, the developer of Dynamsoft Barcode Reader, built and published this benchmark. BarBeR itself is an independent public dataset whose standardized annotations were produced with help from proprietary Datalogic software. Source hashes, exclusion lists, configurations, raw records, and the generated report all ship with the project so anyone can re-check the comparison.

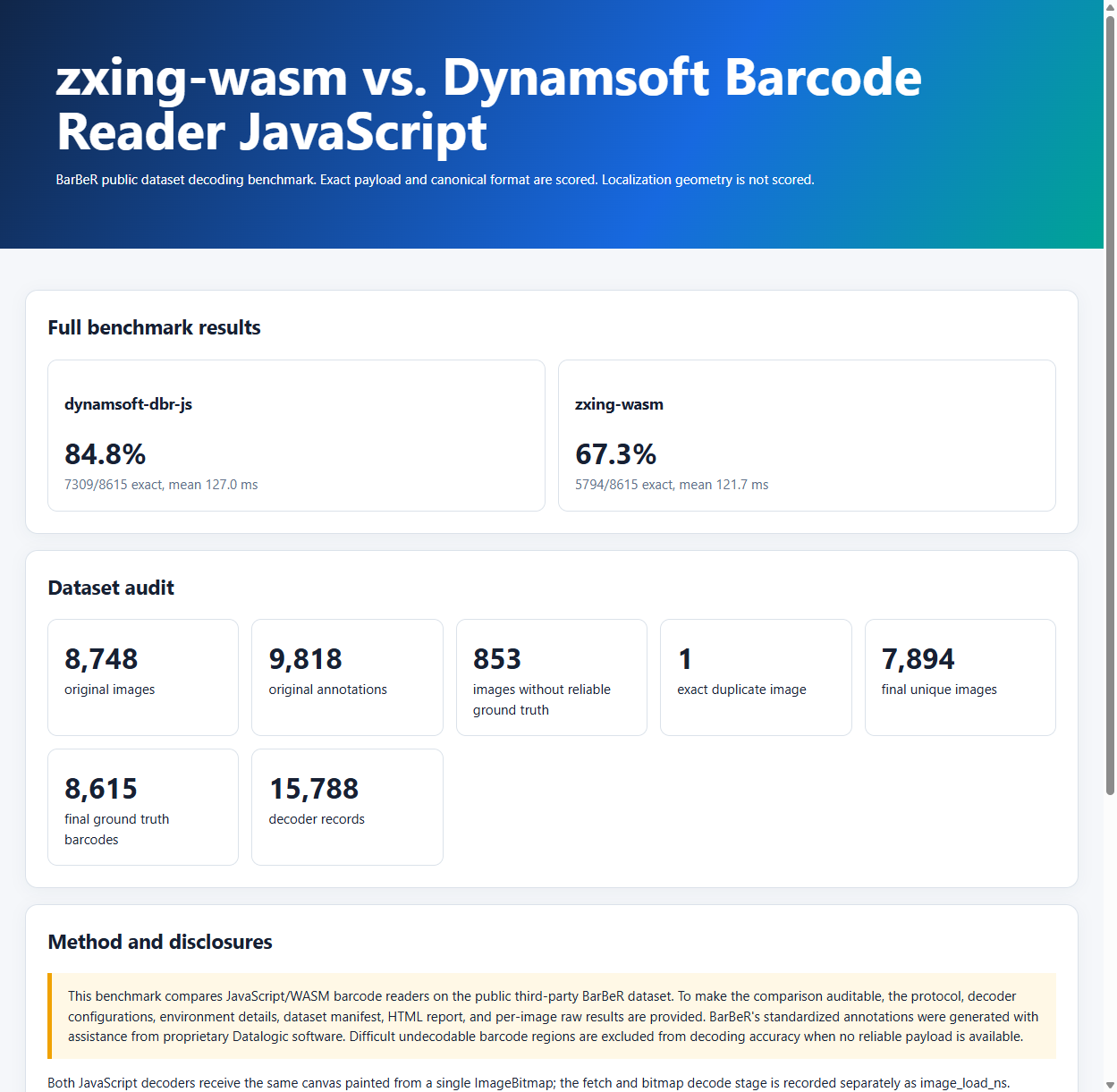

The generated HTML report embeds searchable per-image records, and its download directory carries the full JSONL stream, the combined JSON package, the summary, and the source inventory.

JavaScript BarBeR benchmark report

node tools/generate_html_report.mjs `
  --inventory manifests/barber_source_files.json `
  --environment configs/benchmark_environment.json `
  --results results/full/results.jsonl `
  --results-json results/full/results.json `
  --summary results/full/summary.json `
  --output report/index.html

JavaScript vs. C++ and Python: Same BarBeR Images, Different Runtimes

The C++ and Python articles ran the identical 7,894-image BarBeR manifest. This JavaScript project reuses that manifest — same image paths, same SHA-256 hashes — and all three runs now use DBR 11.6.5000, so the series isolates how much the language/runtime binding and image path move measured results on unchanged input.

Decoder Run Correct Recall Precision Mean decode time
Dynamsoft Barcode Reader C++ 11.6.50.9329 7,806 / 8,411 92.81% 95.85% 57.09 ms
Dynamsoft Barcode Reader Python 11.6.5000 7,834 / 8,411 93.14% 95.96% 63.71 ms
Dynamsoft Barcode Reader JavaScript 11.6.5000 7,638 / 8,411 90.81% 95.97% 121.05 ms
ZXing-C++ C++ 3.1.1 6,031 / 8,411 71.70% 95.79% 69.90 ms
ZXing-C++ Python 3.1.1 5,974 / 8,411 71.03% 94.98% 70.55 ms
zxing-wasm JavaScript 3.1.2 5,958 / 8,411 70.84% 94.96% 116.22 ms

Two patterns stand out. The open-source ZXing core stays in the low 70s for recall across native C++, the Python wheel and WebAssembly (71.70%, 71.03% and 70.84% respectively). On the DBR side the two native bindings land close together and the browser bundle gives up roughly two points to its JPEG → ImageBitmap → RGBA canvas image path — with one SDK release shared by all three runs, that gap is a runtime effect, not an engine-version artifact. Decode times are not directly comparable across runtimes because the browser adds canvas and WASM boundary overhead that the native and OpenCV paths do not have.

Migrating from zxing-wasm to Dynamsoft Barcode Reader

The migration is a decode-call swap, not a pipeline rewrite. Both libraries accept the same browser image primitives and return plain payload text, so your result-handling, UI, and storage code carries over.

Before (zxing-wasm):

const results = await ZXingWASM.readBarcodes(imageData);
for (const r of results) {
  handle(r.format, r.text);
}

After (Dynamsoft Barcode Reader):

await Dynamsoft.License.LicenseManager.initLicense(licenseKey, true);
await Dynamsoft.Core.CoreModule.loadWasm(["DBR"]);
const cvRouter = await Dynamsoft.CVR.CaptureVisionRouter.createInstance();

const captured = await cvRouter.capture(imageData, Dynamsoft.CVR.EnumPresetTemplate.PT_READ_BARCODES);
for (const item of captured.getItems()) {
  handle(item.formatString, item.text);
}

Three practical notes:

  • Format names map almost one-to-one. zxing-wasm returns EAN13, QRCode, Code128, DataMatrix; Dynamsoft returns EAN_13, QR_CODE, CODE_128, DATA_MATRIX. Normalize to a canonical form (uppercase, strip separators) before comparing, exactly as this benchmark’s scorer does.
  • Payload text is directly comparable. UPC-A may surface as its zero-prefixed EAN-13 equivalent on either side, so apply the same leading-zero normalization your application already needs.
  • Initialization is a one-time await. Load the WASM module and create the router once at startup, then reuse the router for every frame or image — the per-call cost after that is just the decode.

Accuracy Metrics

Recall measures how completely a reader covers the barcodes that actually exist; precision measures how trustworthy its answers are when it does report one:

Recall = correct ground truth matches / eligible ground truth instances
Precision = correct predictions / evaluated predictions
Evaluated predictions = correct + wrong_text + wrong_format + extra_result

A not_found or unsupported_format outcome means a known ground truth value went unread, so it pulls recall down without touching precision — the decoder reported nothing for that item. A wrong_text, wrong_format, or extra_result outcome means the decoder reported something matching no ground truth barcode, so it pulls precision down.

Matching Rules

  • Ground truth and predictions are matched one to one as multisets.
  • The key is canonical barcode format plus exact normalized payload.
  • UPC-A and the equivalent zero-prefixed EAN-13 value are treated as equal.
  • CODE_39 start/stop asterisks are stripped before scoring.
  • CODE_128 / GS1-128 leading {GS}, {FNC1}, and ASCII GS markers are stripped before scoring.
  • HTML entities, trailing newlines, and a leading \000001 escape are normalized before scoring.
  • Ground truth payload ^ is treated as an unreliable placeholder and excluded from scoring.
  • DBR CODE39EXTENDED output is treated as CODE_39 when the payload matches.
  • Barcode location is not part of the score.
  • Unsupported formats remain visible in coverage-adjusted metrics.
  • Decoder errors and input pipeline errors are explicit outcomes.

Common Issues & Edge Cases

  • zxing-wasm rejects a canvas element: Version 3.x does not accept a canvas directly. Pass an ImageData (from ctx.getImageData) or a Blob; this benchmark uses ImageData so both readers share the same pixels.
  • DBR fails during initialization: Supply a valid license through LicenseManager.initLicense. Without a key the SDK falls back to a 24-hour public demo license.
  • A BarBeR image will not decode in the browser: A handful of BarBeR JPEGs use an encoding createImageBitmap cannot decode. Both readers record an explicit input_pipeline_error for those images, so the comparison stays fair; the native runs decoded them through OpenCV.
  • A run stops before completion: Reload the page and click Run again. The collector recognizes finished (sample, decoder, repetition) records and resumes past them instead of re-decoding.

When to Choose Dynamsoft Barcode Reader or zxing-wasm

Verdict: For a production web scanner that meets damaged, crowded or mixed-symbology labels, Dynamsoft Barcode Reader is the safer default — 1,680 more correct reads on the same 7,894 images, with roughly a third of zxing-wasm’s unread rate. zxing-wasm is the better choice when the input is controlled, the bundle must stay open source, and a ten-point recall gap is acceptable.

  Best fit Poor fit
Dynamsoft Barcode Reader 11.6.5000 Production capture where a missed code costs a transaction; damaged, blurred or low-contrast labels; frames with several symbols; teams that need templates and support A prototype where the SDK payload is the largest asset on the page; a project that cannot carry a commercial licence
zxing-wasm 3.1.2 Controlled images — screens, clean print, fixed lighting; open-source-only distribution; offline tools where ~71% recall is enough Crowded or damaged real-world captures; workloads where 2,299 unread instances out of 8,411 is a business problem

Tested with: Dynamsoft Barcode Reader JavaScript bundle 11.6.5000 and zxing-wasm 3.1.2, headless Microsoft Edge 156 (Chromium) on Windows 11, Intel Core i5-13400F, Node v22.22.2. Input: the 7,894-image BarBeR manifest, 8,411 scored instances. Benchmark date: 2026-11-03.

Effort and licensing: both readers load from a CDN in the same page, so integration effort is comparable — the difference is the licence. The migration section below is the code that changes.

If your web pipeline cannot afford missed reads, Dynamsoft Barcode Reader is the stronger fit in this benchmark: it returned 1,680 more correct matches on the scored BarBeR set, and that margin matters most on damaged labels, crowded scenes, and mixed-symbology captures — the difficult barcodes where zxing-wasm left 2,067 instances unread. It also brings configurable capture templates, packaged runtime assets, and commercial support, the pieces production deployments tend to need.

If you want an engine you can inspect, patch, and ship without license fees, zxing-wasm remains a solid option. Its 94.96% precision in this run shows its answers are trustworthy when it finds one, its median decode time was faster, and for controlled inputs where a lower read rate is acceptable, the open-source stack may be all you need. Because both readers load from a CDN and run in the same page, the decision comes down to recall tolerance and licensing rather than integration effort.

Conclusion

This project shows that a JavaScript benchmark can carry the same audit trail as the native and Python builds: the shared manifest, resumable JSONL records, combined JSON package, environment snapshot, and generated HTML report let any reviewer reproduce the accuracy and decode-time numbers above. Paired with the C++ and Python runs on the identical manifest, it also isolates how much the SDK release and the browser/WASM runtime move those numbers on unchanged input — and it doubles as a working migration reference for teams moving a web scanner from zxing-wasm to Dynamsoft Barcode Reader.

Reproducibility

The manifest, the raw records and the report are published, so the browser recall and precision above can be recomputed line by line rather than taken on trust.

  • Manifest. The same 7,894-image BarBeR manifest as the C++ and Python companions, matched by path and SHA-256: 8,615 audited ground-truth instances, 8,411 scored after excluding 204 ^ placeholders.
  • Raw records. results.jsonl (one record per image per decoder) plus the combined JSON package, the summary and the source inventory, all in the report’s download directory.
  • Environment. configs/benchmark_environment.json pins the browser build, the WASM bundles and the decoder versions.
  • Source. Complete sample project on GitHub.

Because the manifest is byte-identical to the native runs, a difference between this page and the C++ or Python page is a runtime difference on unchanged pixels — which is exactly what the comparison table above measures.
