Optical Character Recognition (OCR) helps users capture and recognize text information from images. However, basic OCR technology cannot meet the growing requirement for data control, meaning that in some complex scenarios, we may need to extract critical data from a specified region. Dynamsoft has developed some new extraction technologies powered by Dynamsoft Label Recognition SDK to take control of data. Let us show you how we did it.

Start Your Free 30-Day Trial

Auto-Detect

By default, Dynamsoft Label Recognition SDK detects text regions automatically, which means you’ll get all the text in one result. This is efficient when there is only a straight line of text. For these scenarios, Dynamsoft Label Recognition offers automatic region detection mode DLR_RPM_AUTO.

settings.regionPredetectionModes[0] = DLRRegionPredetectionMode::DLR_RPM_AUTO;

Zonal OCR

If one image contains multiple text areas, developers can run a zonal OCR feature for a specified text area using Dynamsoft Label Recognition. In this example, we are going to recognize voucher codes on the back of gift cards.

OCR gift cards

As you can see, the voucher code is fixed in the lower-left corner. Dynamsoft Label Recognition offers a flexible API to help you specify a single region to avoid capturing unwanted text. This article will show you how to use referenceRegion and textArea in RuntimeSettings to control OCR results.

    char error[512];

    DLRRuntimeSettings settings;
    dlr.GetRuntimeSettings(&settings);

    settings.referenceRegion= { { {0,0}, {20,0}, {20,100}, {0,100}}, 1 };
    settings.textArea = { { {0,80}, {20,80}, {20,100}, {0,100} } };
    dlr.UpdateRuntimeSettings(&settings, error, 512);

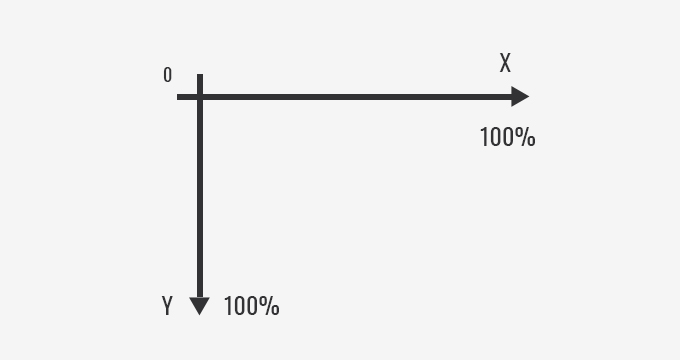

This function is based on a percentage axis. {x1,y1}, {x2,y2}, {x3,y3}, {x4,y4} are four points, usually input clockwise from the upper-left corner to the lower-left corner. X and Y take a value from 0 to 100, which means it is located at X% of x-coordinate and Y% of y-coordinate.

OCR percentage axis

In this case, {0,0}, {20,0}, {20,100}, {0,100} are four points used to ensure the reference region. Thus, we indicate the specific region below.

OCR specific region

No matter how the image is scaled, this percentage area will not change. These automated batch processing capabilities help developers reduce manual work. For example, you can use a template to scan a large number of forms. It is possible to recognize only one image and save the reference region and text area as a JSON file template. Then you can use this template for other documents in subsequent workflows to save time.

Get the Source Code on Windows & Linux

Working with a Barcode

So, how do you determine the exact percentage to achieve region control? It becomes much easier when texts are around barcodes. If there is a small barcode on a large image, we recommend using the RelativeBarcodeRegions argument in pre-detection mode to speed up the localization process and recognition accuracy.

With the help of Dynamsoft Barcode Reader SDK, developers can quickly decode barcodes and store the result. Dynamsoft Label Recognition provides two APIs to work with barcode results:

RecognizeBasedOnDBRResultsByBuffer and RecognizeBasedOnDBRResultsByFile.

After getting the results, you can also compare the barcode result to the OCR result.

CLabelRecognition* recognizer = new CLabelRecognition();
recognizer->InitLicense("t0260NwAAAHV***************");
//Generate imageData from somewhere else
int errorCode = recognizer->RecognizeBasedOnDBRResultsByBuffer(imageData, "");
int errorCode = recognizer->RecognizeBasedOnDBRResultsByFile("C:\\Program Files (x86)\\Dynamsoft\\{Version number}\\Images\\Sample.png", "");
delete recognizer;

Read Texts with a Specific Background Color

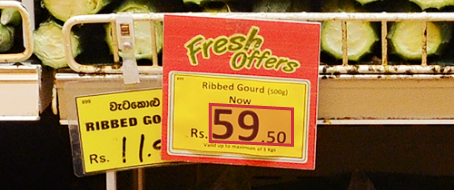

In our daily lives, there are a large number of colorful labels with rich text information. An everyday use case example would be a price tag where the text is on a yellow background. Preprocessing the background area can save time for recognition.

Read Texts with a Specific Background Color

Suppose you want to specify a set of the foreground and background colors used for region detection. In that case, we recommend using the ForeAndBackgroundColours argument to define the foreground and background colors.

In Summary

Dynamsoft Label Recognition is a text recognition SDK and a data control tool. Developers can fully take control of the data and improve recognition accuracy. Learn more details about defining multiple reference regions and text areas.

Take the Next Step

Want to get more out of your images? Please check out our Online Documentation, sign up for a Free 30-day Trial, or speak to one of our Technical Support Members.
