Build an Angular Barcode and QR Code Scanner Component with Dynamsoft Capture Vision

Mar 31, 2026

Dynamsoft Capture Vision SDK consists of Dynamsoft Barcode Reader, Dynamsoft Label Recognizer, Dynamsoft Camera Enhancer, Dynamsoft Document Normalizer, and Dynamsoft Code Parser. In this article, we will demonstrate how to build Angular barcode and QR code scanner apps from scratch using the Dynamsoft Capture Vision SDK.

What you’ll build: A complete Angular application that reads barcodes and QR codes from image files and live camera streams using the Dynamsoft Capture Vision JavaScript SDK.

Key Takeaways

Dynamsoft Capture Vision SDK enables Angular apps to decode 1D/2D barcodes and QR codes from both static images and real-time camera feeds.
The SDK’s WebAssembly engine runs entirely in the browser — no server-side processing is required.
CaptureVisionRouter is the single entry point for image decoding; pair it with CameraEnhancer for live video scanning.
The project can be deployed as a static site on GitHub Pages using a simple GitHub Actions workflow.

Common Developer Questions

How do I build an Angular QR code and barcode scanner component?
How do I scan barcodes from a webcam in an Angular application?
How do I configure Dynamsoft Capture Vision SDK with Angular CLI?

This article is Part 2 in a 5-Part Series.

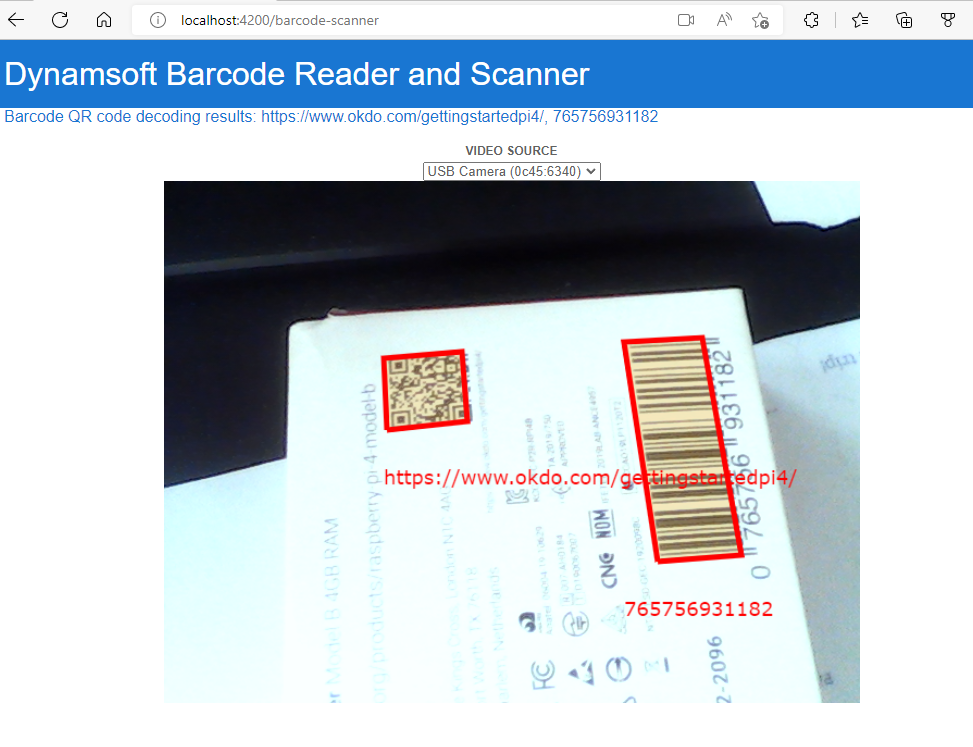

Angular Barcode and QR Code Scanner in Action

Try the Online Demo

Try the Demo

Prerequisites

Node.js
Install Angular CLI for Angular project development:
```
 npm install -g @angular/cli
 ng --version
```
Get a 30-day free trial license for Dynamsoft Capture Vision.

Step 1: Scaffold the Angular Barcode Scanner Project

Create a New Angular Project

First, create a new Angular project named angular-barcode-qr-code-scanner using the Angular CLI:

ng new angular-barcode-qr-code-scanner

Install the Dynamsoft SDK Packages

Next, install the necessary Dynamsoft packages via npm:

npm i dynamsoft-capture-vision-bundle dynamsoft-capture-vision-data

dynamsoft-capture-vision-bundle: The package contains the core library of Dynamsoft Capture Vision.
dynamsoft-capture-vision-data: The package provides model files for Dynamsoft Capture Vision.

Configure Angular to Load Third-Party WASM Libraries

To make the third-party JavaScript libraries work in Angular, follow these steps:

Open the angular.json file and add the following configuration under the build section:

 "build":
 {
   "builder": "@angular-devkit/build-angular:browser",
   "options": {
     ...
     "assets": [
       "src/favicon.ico",
       "src/assets",
           {
             "glob": "**/*",
             "input": "./node_modules/dynamsoft-capture-vision-bundle/dist",
             "output": "assets/dynamsoft-capture-vision-bundle"
           },
           {
             "glob": "**/*",
             "input": "./node_modules/dynamsoft-capture-vision-data",
             "output": "assets/dynamsoft-capture-vision-data"
           },
     ...
     ],
   },
   ...
 },

In your TypeScript code, set the resource output paths as follows:

 import { CoreModule, LicenseManager } from 'dynamsoft-capture-vision-bundle';

 CoreModule.engineResourcePaths = {
   dcvBundle: getFullUrl('assets/dynamsoft-capture-vision-bundle/'),
   dcvData: getFullUrl('assets/dynamsoft-capture-vision-data/'),
 };

Step 2: Set Up License Key Activation and Status Management

In this project, we will provide an input element for users to set a valid license key. Once the license key passes validation, the status is shared globally among different components: barcode reader and barcode scanner.

Generate a component and a shared service:

 ng generate component product-list
 ng generate service shared

Update the shared service to store the boolean value in the shared.service.ts file:

 import { Injectable } from '@angular/core';

 @Injectable({
   providedIn: 'root'
 })
 export class SharedService {
   private showDiv: boolean = false;

   getShowDiv(): boolean {
     return this.showDiv;
   }

   setShowDiv(value: boolean): void {
     this.showDiv = value;
   }

   toggleShowDiv(): void {
     this.showDiv = !this.showDiv;
   }
 }


Update the component to use the shared service in the product-list.component.ts file:

 import { Component } from '@angular/core';

 import { products } from '../products';

 import { CoreModule, LicenseManager } from 'dynamsoft-capture-vision-bundle';

 import { SharedService } from '../shared.service';

 @Component({
   selector: 'app-product-list',
   templateUrl: './product-list.component.html',
   styleUrls: ['./product-list.component.css'],
 })
 export class ProductListComponent {
   products = products;
   inputText: string = '';
   processedText: string = '';
   placeholderText: string = 'LICENSE-KEY';

   constructor(private sharedService: SharedService) { }

   async activate(): Promise<void> {
     this.processedText = this.inputText.toUpperCase();
     // Configure the paths where the .wasm files and other necessary resources for modules are located.
     CoreModule.engineResourcePaths = {
       dcvBundle: getFullUrl('assets/dynamsoft-capture-vision-bundle/'),
       dcvData: getFullUrl('assets/dynamsoft-capture-vision-data/'),
     };

     try {
       // Visit https://www.dynamsoft.com/customer/license/trialLicense/?product=dcv&package=cross-platform
       let licenseKey: string = this.inputText === '' ? this.placeholderText : this.inputText;
       await LicenseManager.initLicense(licenseKey, { executeNow: true });
       CoreModule.loadWasm(['DBR']);

       this.toggleDivVisibility();
     } catch (error) {
       alert(error);
     }

   }

   toggleDivVisibility(): void {
     this.sharedService.toggleShowDiv();
   }

   get showDiv(): boolean {
     return this.sharedService.getShowDiv();
   }
 }


Explanation:

The activate method is triggered when the user clicks the Activate button. It initializes the Dynamsoft JavaScript Barcode SDK with the license key.
The license key stored in the placeholder text is a one-day trial license key publicly available for all users.
The showDiv property is used to toggle the visibility of barcode reader and scanner components after the license key is validated.

Update the component template in the product-list.component.html file:

 <div>
   <div>
     Get a License key from <a href="https://www.dynamsoft.com/customer/license/trialLicense/?product=dcv&package=cross-platform" target="_blank">here</a>
   </div>
   <input type="text" [(ngModel)]="inputText" [placeholder]="placeholderText">
   <button (click)="activate()">Activate SDK</button>
 </div>

 <div *ngIf="showDiv">
   <h2>Examples</h2>
   <div *ngFor="let product of products">
     <h3>
       <div *ngIf="product.id === 'reader'; else elseBlock">
         <a [title]="product.name + ' details'" [routerLink]="['/barcode-reader']">>

         </a>
       </div>
       <ng-template #elseBlock><a [title]="product.name + ' details'" [routerLink]="['/barcode-scanner']">>

         </a></ng-template>
     </h3>

     <p *ngIf="product.description">Description: </p>
   </div>
 </div>

Explanation:

The input element is used to set the license key.
The button element is used to trigger the activate method.
The *ngIf directive is used to toggle the visibility of the barcode reader and scanner components.

Step 3: Decode Barcodes from Image Files

Create a barcode-reader component via Angular CLI:
```
 ng generate component barcode-reader
```
Construct the web page layout in the barcode-reader.component.html file:
```
 <input type="file" id="file" accept="image/*" (change)="onChange($event)" />
 <div>
   <a id="result"></a>
 </div>

 <div id="imageview">
   <img id="image" />
   <canvas id="overlay"></canvas>
 </div>
```
Explanation
- The input element is used to select an image file.
- The a element is used to display barcode and QR code results.
- The img element is used to display the selected image.
- The canvas element is used to draw barcode and QR code results.

Add TypeScript code to the barcode-reader.component.ts file.

 import { Component, OnInit } from '@angular/core';
 import { OverlayManager } from '../overlay';
 import { CapturedResult, CaptureVisionRouter, BarcodeResultItem, EnumCapturedResultItemType } from 'dynamsoft-capture-vision-bundle';

 @Component({
   selector: 'app-barcode-reader',
   templateUrl: './barcode-reader.component.html',
   styleUrls: ['./barcode-reader.component.css'],
 })
 export class BarcodeReaderComponent implements OnInit {
   isLoaded = false;
   overlay: HTMLCanvasElement | undefined;
   context: CanvasRenderingContext2D | undefined;
   overlayManager: OverlayManager;
   cvr: CaptureVisionRouter | undefined;

   constructor() {
     this.overlayManager = new OverlayManager();
   }

   ngOnInit(): void {
     this.overlayManager.initOverlay(document.getElementById('overlay') as HTMLCanvasElement);
     (async () => {
       this.cvr = await CaptureVisionRouter.createInstance();
       this.isLoaded = true;
     })();
   }

   onChange(event: Event) {
     const element = event.currentTarget as HTMLInputElement;
     let fileList: FileList | null = element.files;
     if (fileList) {
       let file = fileList.item(0) as any;
       if (file) {
         let fr = new FileReader();
         fr.onload = (event: any) => {
           let image = document.getElementById('image') as HTMLImageElement;
           if (image) {
             image.src = event.target.result;
             const img = new Image();

             img.onload = (event: any) => {
               this.overlayManager.updateOverlay(img.width, img.height);
               if (this.cvr) {

                 this.cvr.capture(file, 'ReadBarcodes_Balance').then((result: CapturedResult) => {
                   console.log(result);
                   let txts: any = [];
                   let elem = document.getElementById('result');
                   try {
                     let localization;
                     let items = result.items
                     if (items.length > 0) {
                       for (var i = 0; i < items.length; ++i) {

                         if (items[i].type !== EnumCapturedResultItemType.CRIT_BARCODE) {
                           continue; // check if captured result item is a barcode
                         }

                         let item = items[i] as BarcodeResultItem;

                         txts.push(item.text);
                         localization = item.location;
                         console.log(localization);
                         this.overlayManager.drawOverlay(
                           localization,
                           item.text
                         );
                       }

                       if (elem) {
                         elem.innerHTML = txts.join(', ');
                       }
                     } else {
                       if (elem) {
                         elem.innerHTML = txts.join(', ');
                       }
                     }
                   } catch (e) {
                     alert(e);
                   }
                 });
               }
             };
             img.src = event.target.result;
           }
         };
         fr.readAsDataURL(file);
       }
     }
   }
 }


Explanation

The ngOnInit method initializes the overlay and CaptureVisionRouter object.
The onChange method is triggered when the user selects an image file. It reads the barcode and QR code results from the image file.

Angular barcode and QR code reader

Step 4: Scan Barcodes from a Live Camera Stream

Create a barcode-scanner component via Angular CLI:
```
 ng generate component barcode-scanner
```

Construct the web page layout in the barcode-scanner.component.html file:

 <div class="select">
   <label for="videoSource">Video source: </label>
   <select id="videoSource" (change)="openCamera()"></select>
 </div>

 <div id="videoview">
   <div class="dce-video-container" id="videoContainer"></div>
   <canvas id="overlay"></canvas>
 </div>

Explanation

The select element is used to list the available video sources.
The div element with the videoContainer id is used to display the video stream.
The canvas element with the overlay id is used to draw barcode and QR code results.

Add TypeScript code to the barcode-scanner.component.ts file:

 import { Component, OnInit } from '@angular/core';
 import { OverlayManager } from '../overlay';
 import { BarcodeResultItem, CameraEnhancer, CameraView, CapturedResult, CaptureVisionRouter, EnumCapturedResultItemType, MultiFrameResultCrossFilter, Resolution } from 'dynamsoft-capture-vision-bundle';

 const componentDestroyedErrorMsg = 'VideoCapture Component Destroyed';

 @Component({
   selector: 'app-barcode-scanner',
   templateUrl: './barcode-scanner.component.html',
   styleUrls: ['./barcode-scanner.component.css'],
 })
 export class BarcodeScannerComponent implements OnInit {
   isLoaded = false;
   overlay: HTMLCanvasElement | undefined;
   context: CanvasRenderingContext2D | undefined;
   cameraInfo: any = {};
   videoSelect: HTMLSelectElement | undefined;
   overlayManager: OverlayManager;
   cvr?: CaptureVisionRouter;
   cameraEnhancer?: CameraEnhancer;
   isDestroyed = false;

   constructor() {
     this.overlayManager = new OverlayManager();
   }

   ngOnInit(): void {
     this.videoSelect = document.querySelector('select#videoSource') as HTMLSelectElement;
     this.overlayManager.initOverlay(document.getElementById('overlay') as HTMLCanvasElement);
     (async () => {
       await this.initBarcodeScanner();
     })();
   }

   ngOnDestroy(): void {
     this.isDestroyed = true;
     try {
       this.cvr?.dispose();
       this.cameraEnhancer?.dispose();
     } catch (_) { }
   }

   updateResolution(): void {
     if (this.cameraEnhancer && this.overlayManager) {
       let resolution: Resolution = this.cameraEnhancer.getResolution();
       this.overlayManager.updateOverlay(resolution.width, resolution.height);
     }
   }

   async initBarcodeScanner(): Promise<void> {
     const cameraView: CameraView = await CameraView.createInstance();

     this.cameraEnhancer = await CameraEnhancer.createInstance(cameraView);

     this.isLoaded = true;
     let uiElement = document.getElementById('videoContainer');
     if (uiElement) {
       uiElement.append(cameraView.getUIElement());

       cameraView.getUIElement().shadowRoot?.querySelector('.dce-sel-camera')?.setAttribute('style', 'display: none');
       cameraView.getUIElement().shadowRoot?.querySelector('.dce-sel-resolution')?.setAttribute('style', 'display: none');

       let cameras = await this.cameraEnhancer.getAllCameras();
       this.listCameras(cameras);


       this.cvr = await CaptureVisionRouter.createInstance();
       if (this.isDestroyed) {
         throw Error(componentDestroyedErrorMsg);
       }
       this.cvr.setInput(this.cameraEnhancer);

       // Define a callback for results.
       this.cvr.addResultReceiver({
         onCapturedResultReceived: (result: CapturedResult) => {
           this.overlayManager.clearOverlay();
           let txts: any = [];
           let resultElement = document.getElementById('result');
           try {
             let localization;
             let items = result.items
             if (items.length > 0) {
               for (var i = 0; i < items.length; ++i) {

                 if (items[i].type !== EnumCapturedResultItemType.CRIT_BARCODE) {
                   continue; // check if captured result item is a barcode
                 }

                 let item = items[i] as BarcodeResultItem;

                 txts.push(item.text);
                 localization = item.location;
                 console.log(localization);
                 this.overlayManager.drawOverlay(
                   localization,
                   item.text
                 );
               }

               if (resultElement) {
                 resultElement.innerHTML = txts.join(', ');
               }
             } else {

               if (resultElement) {
                 resultElement.innerHTML = txts.join(', ');
               }
             }

           } catch (e) {
             alert(e);
           }
         },
       });

       this.cvr.addResultReceiver({
         onDecodedBarcodesReceived: (result) => {
           if (!result.barcodeResultItems.length) return;

           console.log(result);
         },
       });

       this.cameraEnhancer.on('played', () => {
         this.updateResolution();
       });
       await this.openCamera();
       if (this.isDestroyed) {
         throw Error(componentDestroyedErrorMsg);
       }
       await this.cvr.startCapturing('ReadSingleBarcode');
       if (this.isDestroyed) {
         throw Error(componentDestroyedErrorMsg);
       }
     }
   }

   async openCamera(): Promise<void> {
     this.overlayManager.clearOverlay();
     if (this.videoSelect) {
       let deviceId = this.videoSelect.value;
       if (this.cameraEnhancer) {
         await this.cameraEnhancer.selectCamera(deviceId);
         await this.cameraEnhancer.open();
       }
     }

   }

   listCameras(deviceInfos: any): void {
     for (var i = 0; i < deviceInfos.length; ++i) {
       var deviceInfo = deviceInfos[i];
       var option = document.createElement('option');
       option.value = deviceInfo.deviceId;
       option.text = deviceInfo.label;
       this.cameraInfo[deviceInfo.deviceId] = deviceInfo;
       if (this.videoSelect) this.videoSelect.appendChild(option);
     }
   }
 }


Explanation:

The ngOnInit method initializes the overlay, CameraView, CaptureVisionRouter and CameraEnhancer objects.
The updateResolution method updates the overlay size according to the camera resolution.
The openCamera opens the selected camera source.
The listCameras method lists the available camera sources.
The ngOnDestroy method destroys the CaptureVisionRouter and CameraEnhancer objects when the component is destroyed.

Run the Angular project:
```
 ng serve --ssl
```

Step 5: Deploy to GitHub Pages

Deploying your Angular project to GitHub Pages can be automated using GitHub Actions. Follow these steps to set up the deployment process:

Create a GitHub Actions workflow file to automate the build and deployment process. This workflow uses the Angular Deploy gh-pages Actions:

 name: Build and Deploy
 on:
   push:
     branches:
       - main
 jobs:
   build:

     runs-on: ubuntu-latest

     steps:
     - uses: actions/checkout@v2
     - name: All things angular
       uses: AhsanAyaz/angular-deploy-gh-pages-actions@v1.3.2
       with:
         github_access_token: $
         build_configuration: production
         base_href: /angular-barcode-qr-code-scanner/
         deploy_branch: gh-pages
         angular_dist_build_folder: dist/angular-barcode-qr-code-scanner


Note: Replace angular-barcode-qr-code-scanner with your actual project name.

After setting up the workflow file, enable GitHub Pages for your repository:
1. Go to Your GitHub repository > Settings > Pages.
2. Select the gh-pages branch as the source for GitHub Pages.
3. Save the changes to launch the GitHub page.

FAQ

What if ng serve fails with a PowerShell execution policy error on Windows?

If you see the error:

ng : File C:\Users\Admin\AppData\Roaming\npm\ng.ps1 cannot be loaded because running scripts is disabled on this system
. For more information, see about_Execution_Policies at https:/go.microsoft.com/fwlink/?LinkID=135170.

Temporarily bypass the execution policy for the current PowerShell session:

Set-ExecutionPolicy -Scope Process -ExecutionPolicy Bypass

Common Issues and Edge Cases

Camera access requires HTTPS: Browsers block getUserMedia() on non-HTTPS origins. Use ng serve --ssl during development, or access via localhost. Deploying to GitHub Pages provides HTTPS automatically.
WASM files fail to load due to incorrect asset paths: If the barcode engine silently fails to initialize, verify that the assets block in angular.json correctly maps the dynamsoft-capture-vision-bundle and dynamsoft-capture-vision-data directories. Check the browser DevTools Network tab for 404 errors on .wasm files.
Component destroyed before async initialization completes: If you navigate away from the scanner component while the camera is still opening, the CaptureVisionRouter and CameraEnhancer instances may leak. The code guards against this with isDestroyed checks, but always call dispose() in ngOnDestroy.

Source Code

https://github.com/yushulx/angular-barcode-mrz-document-scanner
