C++ Windows Webcam Barcode Scanner Tutorial: Windows Media Foundation API and Dynamsoft SDK

In the previous article, we developed a LiteCam library for camera access on Linux. To extend its functionality to Windows, we will leverage the Media Foundation API. This article explores how to use Media Foundation to access the camera on Windows, integrate it with the LiteCam library, and reuse the existing barcode scanning example code to build a camera-based barcode scanner for Windows.

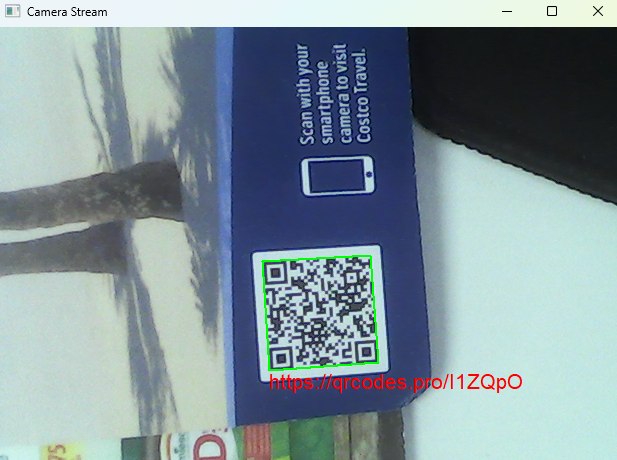

What you’ll build: A native C++ Windows application that opens a webcam stream via Windows Media Foundation, converts YUY2 frames to RGB, and decodes barcodes in real time using the Dynamsoft Barcode Reader SDK v11.

Key Takeaways

  • Windows Media Foundation provides a lightweight, OpenCV-free path to webcam access in C++ desktop applications on Windows 10+.
  • The LiteCam library wraps Media Foundation (Windows) and V4L2 (Linux) behind a unified API, letting you reuse the same barcode scanning logic across platforms.
  • YUY2-to-RGB channel order differs between Windows (BGR) and Linux (RGB), requiring a conditional swap in ConvertYUY2ToRGB.
  • Dynamsoft Barcode Reader SDK v11 decodes 20+ barcode types from a raw RGB frame with a single API call — no image preprocessing required.

Common Developer Questions

  • How do I access a webcam in C++ on Windows without using OpenCV?
  • How do I build a real-time barcode scanner in C++ using Windows Media Foundation?
  • What is the correct YUY2-to-RGB channel conversion for Windows versus Linux in C++?

Prerequisites

  • Windows 10 or later with a connected webcam
  • Visual Studio 2019+ or MinGW-w64, CMake 3.10+
  • Dynamsoft Barcode Reader C++ SDK v11 — Get a 30-day free trial license to activate it

This article is Part 2 in a 4-Part Series.

Windows Camera Demo Video

Step 1: Implement Camera Capture Using Windows Media Foundation

Update Camera.h to Support Both Windows and Linux

To support both Windows and Linux, the Camera.h header file requires the following updates:

  • Include platform-specific headers:

      #ifdef _WIN32
  #include <windows.h>
  #include <mfapi.h>
  #include <mfidl.h>
  #include <mfobjects.h>
  #include <mfreadwrite.h>
  #include <wrl/client.h>
  #include <dshow.h>

  #elif __linux__
  #include <linux/videodev2.h>
  #include <fcntl.h>
  #include <unistd.h>
  #include <sys/ioctl.h>
  #include <sys/mman.h>

  struct Buffer
  {
      void *start;
      size_t length;
  };

  #endif

  • Define the CAMERA_API macro for platform-specific export visibility:

      #ifdef _WIN32
  #ifdef CAMERA_EXPORTS
  #define CAMERA_API __declspec(dllexport)
  #else
  #define CAMERA_API __declspec(dllimport)
  #endif
  #elif defined(__linux__) || defined(__APPLE__)
  #define CAMERA_API __attribute__((visibility("default")))
  #else
  #define CAMERA_API
  #endif

  • Modify the MediaTypeInfo and CaptureDeviceInfo structures to use appropriate string types:


  struct CAMERA_API MediaTypeInfo
  {
      uint32_t width;
      uint32_t height;
  #ifdef _WIN32
      wchar_t subtypeName[512];
  #else
      char subtypeName[512];
  #endif
  };

  struct CAMERA_API CaptureDeviceInfo
  {

  #ifdef _WIN32
      wchar_t friendlyName[512];
  #else
      char friendlyName[512];
  #endif
  };

  • Adjust pixel conversion logic in the ConvertYUY2ToRGB function:

      void ConvertYUY2ToRGB(const unsigned char *yuy2Data, unsigned char *rgbData, int width, int height)
  {
      int rgbIndex = 0;
      for (int i = 0; i < width * height * 2; i += 4)
      {
          unsigned char y1 = yuy2Data[i];
          unsigned char u = yuy2Data[i + 1];
          unsigned char y2 = yuy2Data[i + 2];
          unsigned char v = yuy2Data[i + 3];

  #ifdef _WIN32
          rgbData[rgbIndex++] = clamp(y1 + 1.772 * (u - 128), 0.0, 255.0);
          rgbData[rgbIndex++] = clamp(y1 - 0.344136 * (u - 128) - 0.714136 * (v - 128), 0.0, 255.0);
          rgbData[rgbIndex++] = clamp(y1 + 1.402 * (v - 128), 0.0, 255.0);

          rgbData[rgbIndex++] = clamp(y2 + 1.772 * (u - 128), 0.0, 255.0);
          rgbData[rgbIndex++] = clamp(y2 - 0.344136 * (u - 128) - 0.714136 * (v - 128), 0.0, 255.0);
          rgbData[rgbIndex++] = clamp(y2 + 1.402 * (v - 128), 0.0, 255.0);
  #else
          rgbData[rgbIndex++] = clamp(y1 + 1.402 * (v - 128), 0.0, 255.0);
          rgbData[rgbIndex++] = clamp(y1 - 0.344136 * (u - 128) - 0.714136 * (v - 128), 0.0, 255.0);
          rgbData[rgbIndex++] = clamp(y1 + 1.772 * (u - 128), 0.0, 255.0);

          rgbData[rgbIndex++] = clamp(y2 + 1.402 * (v - 128), 0.0, 255.0);
          rgbData[rgbIndex++] = clamp(y2 - 0.344136 * (u - 128) - 0.714136 * (v - 128), 0.0, 255.0);
          rgbData[rgbIndex++] = clamp(y2 + 1.772 * (u - 128), 0.0, 255.0);
  #endif
      }
  }

    The pixel order for red and blue channels is swapped between Windows and Linux.

  • Define the Camera class with platform-specific members and methods:

      class CAMERA_API Camera
  {
  public:
  #ifdef _WIN32
      Camera();
      ~Camera();
  #elif __linux__
      Camera() : fd(-1), frameWidth(640), frameHeight(480), buffers(nullptr), bufferCount(0) {}
      ~Camera() { Release(); }
  #endif

  private:
  #ifdef _WIN32
      void *reader;

      bool initialized;
      void InitializeMediaFoundation();
      void ShutdownMediaFoundation();
  #endif

  #ifdef __linux__
      int fd;
      Buffer *buffers;
      unsigned int bufferCount;

      bool InitDevice();
      void UninitDevice();
      bool StartCapture();
      void StopCapture();
  #endif

  };

Enumerate Available Cameras

Use the Media Foundation API to enumerate available cameras:

std::vector<CaptureDeviceInfo> ListCaptureDevices()
{
    HRESULT hr = S_OK;
    ComPtr<IMFAttributes> attributes;
    std::vector<CaptureDeviceInfo> devicesInfo;

    hr = MFCreateAttributes(&attributes, 1);
    if (FAILED(hr))
    {
        std::cerr << "Failed to create attributes." << std::endl;
        return devicesInfo;
    }

    hr = attributes->SetGUID(MF_DEVSOURCE_ATTRIBUTE_SOURCE_TYPE, MF_DEVSOURCE_ATTRIBUTE_SOURCE_TYPE_VIDCAP_GUID);
    if (FAILED(hr))
    {
        std::cerr << "Failed to set video capture device attribute." << std::endl;
        return devicesInfo;
    }

    UINT32 count = 0;
    IMFActivate **devices = nullptr;

    hr = MFEnumDeviceSources(attributes.Get(), &devices, &count);
    if (FAILED(hr) || count == 0)
    {
        std::cerr << "No video capture devices found." << std::endl;
        return devicesInfo;
    }

    for (UINT32 i = 0; i < count; ++i)
    {
        WCHAR *friendlyName = nullptr;
        UINT32 nameLength = 0;

        hr = devices[i]->GetAllocatedString(MF_DEVSOURCE_ATTRIBUTE_FRIENDLY_NAME, &friendlyName, &nameLength);
        if (SUCCEEDED(hr))
        {
            CaptureDeviceInfo info = {};
            wcsncpy(info.friendlyName, friendlyName, nameLength);
            devicesInfo.push_back(info);
            CoTaskMemFree(friendlyName);
        }
        devices[i]->Release();
    }

    CoTaskMemFree(devices);
    return devicesInfo;
}

Explanation

  • Create an IMFAttributes object to specify the video capture device.
  • Enumerate video capture devices using MFEnumDeviceSources.
  • Retrieve the friendly name of each device using GetAllocatedString.

Open and Activate a Camera Stream

  1. Activate a specified camera by index:

    ComPtr<IMFMediaSource> mediaSource;
hr = devices[cameraIndex]->ActivateObject(IID_PPV_ARGS(&mediaSource));
for (UINT32 i = 0; i < count; i++)
    devices[i]->Release();
CoTaskMemFree(devices);

if (FAILED(hr))
    return false;

ComPtr<IMFSourceReader> mfReader;
hr = MFCreateSourceReaderFromMediaSource(mediaSource.Get(), nullptr, &mfReader);
if (FAILED(hr))
    return false;

    The IMFSourceReader object is used to read video data from the camera.

  2. Configure video width, height, and pixel format. For example, YUY2 format with a frame size of 640x480:

     ComPtr<IMFMediaType> mediaType;
 hr = MFCreateMediaType(&mediaType);
 if (FAILED(hr))
     return false;

 hr = mediaType->SetGUID(MF_MT_MAJOR_TYPE, MFMediaType_Video);
 hr = mediaType->SetGUID(MF_MT_SUBTYPE, MFVideoFormat_YUY2);
 hr = MFSetAttributeSize(mediaType.Get(), MF_MT_FRAME_SIZE, frameWidth, frameHeight);

 if (SUCCEEDED(hr))
 {
     hr = mfReader->SetCurrentMediaType(MF_SOURCE_READER_FIRST_VIDEO_STREAM, nullptr, mediaType.Get());

     if (SUCCEEDED(hr))
     {
         reader = reinterpret_cast<void *>(mfReader.Detach());
         return true;
     }
 }

    After setting the media type, the IMFSourceReader object is stored in the reader member variable.

Capture and Convert Camera Frames to RGB

  1. Read a sample from the camera:

     HRESULT hr;
 DWORD streamIndex, flags;
 LONGLONG timestamp;
 ComPtr<IMFSample> sample;
 FrameData frame;

 frame.width = frameWidth;
 frame.height = frameHeight;
 frame.rgbData = nullptr;

 IMFSourceReader *mfReader = reinterpret_cast<IMFSourceReader *>(reader);
 hr = mfReader->ReadSample(
     MF_SOURCE_READER_FIRST_VIDEO_STREAM,
     0,
     &streamIndex,
     &flags,
     &timestamp,
     &sample);

 if (FAILED(hr))
 {
     std::cerr << "Failed to read sample." << std::endl;
     return frame;
 }

  2. Get the raw data from the sample and convert it to RGB888 format:

     if (sample)
 {
     ComPtr<IMFMediaBuffer> buffer;
     hr = sample->ConvertToContiguousBuffer(&buffer);
     if (FAILED(hr))
     {
         std::cerr << "Failed to convert sample to contiguous buffer." << std::endl;
         return frame;
     }

     BYTE *rawData = nullptr;
     DWORD maxLength = 0, currentLength = 0;
     hr = buffer->Lock(&rawData, &maxLength, &currentLength);
     if (SUCCEEDED(hr))
     {
         frame.size = frameWidth * frameHeight * 3;
         frame.rgbData = new unsigned char[frame.size];
         if (!frame.rgbData)
         {
             std::cerr << "Failed to allocate memory for RGB data." << std::endl;
             return frame;
         }

         ConvertYUY2ToRGB(rawData, frame.rgbData, frameWidth, frameHeight);

         buffer->Unlock();
     }
 }

Release Camera and Media Foundation Resources

Release the IMFSourceReader object and Media Foundation resources:

if (reader)
{
    ComPtr<IMFSourceReader> mfReader(static_cast<IMFSourceReader *>(reader));
    reader = nullptr;
}

if (initialized)
{
    MFShutdown();
    initialized = false;
}

Step 2: Build the Camera Preview Window for Windows

Update CameraPreview.h for Cross-Platform Display Support

To support cross-platform compatibility, the CameraPreview.h header file was updated as follows:

  • Define the CAMERA_API macro for Windows and Linux.

      #ifdef _WIN32
  #include <windows.h>
  #elif __linux__
  #include <X11/Xlib.h>
  #include <X11/Xutil.h>
  #elif __APPLE__
  #include <Cocoa/Cocoa.h>
  #endif

  #ifdef _WIN32
  #ifdef CAMERA_EXPORTS
  #define CAMERA_API __declspec(dllexport)
  #else
  #define CAMERA_API __declspec(dllimport)
  #endif
  #elif defined(__linux__) || defined(__APPLE__)
  #define CAMERA_API __attribute__((visibility("default")))
  #else
  #define CAMERA_API
  #endif

  • Add platform-specific window and rendering components:

      class CAMERA_API CameraWindow
  {

  private:

  #ifdef _WIN32
      static LRESULT CALLBACK WindowProc(HWND hwnd, UINT uMsg, WPARAM wParam, LPARAM lParam);

      HWND hwnd;
      HDC hdc;
      WNDCLASS wc;
      HINSTANCE hInstance;
  #elif __linux__
      Display *display;
      Window window;
      GC gc;
      Atom wmDeleteMessage;
  #endif
  };

Initialize and Destroy the Window

The constructor initializes the window class and event callback. The destructor cleans up resources:

CameraWindow::CameraWindow(int w, int h, const std::string &t)
    : width(w), height(h), title(t), hwnd(nullptr), hdc(nullptr)
{

    hInstance = GetModuleHandle(nullptr);

    wc = {};
    wc.lpfnWndProc = WindowProc;
    wc.hInstance = hInstance;
    wc.lpszClassName = "CameraWindowClass";
}

CameraWindow::~CameraWindow()
{
    if (hdc)
    {
        ReleaseDC(hwnd, hdc);
    }
    if (hwnd)
    {
        DestroyWindow(hwnd);
    }
    UnregisterClass("CameraWindowClass", hInstance);
}

LRESULT CALLBACK CameraWindow::WindowProc(HWND hwnd, UINT uMsg, WPARAM wParam, LPARAM lParam)
{
    switch (uMsg)
    {
    case WM_DESTROY:
        PostQuitMessage(0);
        return 0;
    }
    return DefWindowProc(hwnd, uMsg, wParam, lParam);
}

Create and Register the Win32 Window

Invoke CreateWindowEx to create a window and GetDC to get the device context:

bool CameraWindow::Create()
{
    if (!RegisterClass(&wc))
    {
        std::cerr << "Failed to register window class." << std::endl;
        return false;
    }

    hwnd = CreateWindowEx(
        0, "CameraWindowClass", title.c_str(), WS_OVERLAPPEDWINDOW,
        CW_USEDEFAULT, CW_USEDEFAULT, width, height,
        nullptr, nullptr, hInstance, nullptr);

    if (!hwnd)
    {
        std::cerr << "Failed to create window." << std::endl;
        return false;
    }

    hdc = GetDC(hwnd);
    return true;
}

Show the Window

Call ShowWindow to display the window:

void CameraWindow::Show()
{
    ShowWindow(hwnd, SW_SHOW);
}

Handle Keyboard Input for Exit

Capture keyboard input to exit the application:

bool CameraWindow::WaitKey(char key)
{
    MSG msg = {};
    while (PeekMessage(&msg, nullptr, 0, 0, PM_REMOVE))
    {
        TranslateMessage(&msg);
        DispatchMessage(&msg);

        if (msg.message == WM_QUIT)
        {
            return false;
        }

        if (msg.message == WM_KEYDOWN)
        {
            char keyPressed = static_cast<char>(msg.wParam);

            if (key != '\0' && (keyPressed == key || keyPressed == std::toupper(key)))
            {
                return false;
            }
        }
    }
    return true;
}

Render Camera Frames with StretchDIBits

Use StretchDIBits function to render the camera frame.

void CameraWindow::ShowFrame(const unsigned char *rgbData, int frameWidth, int frameHeight)
{
    if (!hdc || !rgbData)
        return;

    BITMAPINFO bmpInfo = {};
    bmpInfo.bmiHeader.biSize = sizeof(BITMAPINFOHEADER);
    bmpInfo.bmiHeader.biWidth = frameWidth;
    bmpInfo.bmiHeader.biHeight = -frameHeight;
    bmpInfo.bmiHeader.biPlanes = 1;
    bmpInfo.bmiHeader.biBitCount = 24;
    bmpInfo.bmiHeader.biCompression = BI_RGB;

    StretchDIBits(
        hdc,
        0, 0, frameWidth, frameHeight,
        0, 0, frameWidth, frameHeight,
        rgbData,
        &bmpInfo,
        DIB_RGB_COLORS,
        SRCCOPY
    );
}

Draw Text Overlays with GDI

Draw text on the window using the TextOut function.

void CameraWindow::DrawText(const std::string &text, int x, int y, int fontSize, const Color &color)
{
    if (!hdc)
        return;

    SetTextColor(hdc, RGB(color.r, color.g, color.b));
    SetBkMode(hdc, TRANSPARENT);

    HFONT hFont = CreateFont(
        fontSize,
        0,
        0,
        0,
        FW_NORMAL,
        FALSE,
        FALSE,
        FALSE,
        DEFAULT_CHARSET,
        OUT_DEFAULT_PRECIS,
        CLIP_DEFAULT_PRECIS,
        DEFAULT_QUALITY,
        DEFAULT_PITCH | FF_DONTCARE,
        "Arial");

    if (!hFont)
        return;

    HGDIOBJ oldFont = SelectObject(hdc, hFont);

    TextOut(hdc, x, y, text.c_str(), static_cast<int>(text.length()));

    SelectObject(hdc, oldFont);
    DeleteObject(hFont);
}

Draw Barcode Contour Overlays

Draw contours on the window using the MoveToEx and LineTo functions.

void CameraWindow::DrawContour(const std::vector<std::pair<int, int>> &points)
{
    if (!hdc || points.size() < 4)
        return;

    HPEN hPen = CreatePen(PS_SOLID, 2, RGB(0, 255, 0));
    HGDIOBJ oldPen = SelectObject(hdc, hPen);

    MoveToEx(hdc, points[0].first, points[0].second, nullptr);
    for (size_t i = 1; i < points.size(); ++i)
    {
        LineTo(hdc, points[i].first, points[i].second);
    }
    LineTo(hdc, points[0].first, points[0].second);

    SelectObject(hdc, oldPen);
    DeleteObject(hPen);
}

Step 3: Assemble and Build the Windows Barcode Scanner

To build the barcode scanner, no changes are needed for the barcode scanning logic. Follow these steps:

  1. Prepare the camera library and Dynamsoft C++ Barcode SDK for Windows.

  2. Update the CMakeLists.txt file to include the Windows-specific configuration.

     cmake_minimum_required(VERSION 3.10)
 project(BarcodeScanner)

 if(WIN32)

     if(CMAKE_BUILD_TYPE STREQUAL "Release")
         link_directories(${CMAKE_CURRENT_SOURCE_DIR}/../../dist/lib/windows/release ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/win/lib)
     else()
         link_directories(${CMAKE_CURRENT_SOURCE_DIR}/../../dist/lib/windows/debug ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/win/lib)
     endif()

     set(DBR_LIBS "DynamsoftCorex64" "DynamsoftLicensex64" "DynamsoftCaptureVisionRouterx64" "DynamsoftUtilityx64")
 elseif(UNIX)
     SET(CMAKE_CXX_FLAGS "-std=c++11 -O3 -Wl,-rpath=$ORIGIN")
     SET(CMAKE_INSTALL_RPATH "$ORIGIN")
     link_directories(${CMAKE_CURRENT_SOURCE_DIR}/../../dist/lib/linux ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/linux)
     set(DBR_LIBS "DynamsoftCore" "DynamsoftLicense" "DynamsoftCaptureVisionRouter" "DynamsoftUtility" pthread)
 endif()

 # Create the executable
 add_executable(BarcodeScanner main.cpp)
 target_include_directories(BarcodeScanner PUBLIC ${CMAKE_CURRENT_SOURCE_DIR}/../../dist/include ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/include)
 target_link_libraries(BarcodeScanner litecam ${DBR_LIBS})

 if(WIN32)
     if(CMAKE_BUILD_TYPE STREQUAL "Release")
         add_custom_command(TARGET BarcodeScanner POST_BUILD
         COMMAND ${CMAKE_COMMAND} -E copy_directory
         ${CMAKE_CURRENT_SOURCE_DIR}/../../dist/lib/windows/release
         $<TARGET_FILE_DIR:BarcodeScanner>)
     else()
         add_custom_command(TARGET BarcodeScanner POST_BUILD
         COMMAND ${CMAKE_COMMAND} -E copy_directory
         ${CMAKE_CURRENT_SOURCE_DIR}/../../dist/lib/windows/debug
         $<TARGET_FILE_DIR:BarcodeScanner>)
     endif()

     add_custom_command(TARGET BarcodeScanner POST_BUILD
     COMMAND ${CMAKE_COMMAND} -E copy_directory
     ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/win/bin/
     $<TARGET_FILE_DIR:BarcodeScanner>)
 elseif(UNIX)
     add_custom_command(TARGET BarcodeScanner POST_BUILD
     COMMAND ${CMAKE_COMMAND} -E copy_directory
     ${CMAKE_CURRENT_SOURCE_DIR}/../../../examples/10.x/sdk/platforms/linux/
     $<TARGET_FILE_DIR:BarcodeScanner>)
 endif()

  3. Build the application using CMake.

     mkdir build
 cd build
 cmake ..
 cmake --build .

    Windows Barcode Scanner

Common Issues & Edge Cases

  • MFCreateSourceReaderFromMediaSource returns MF_E_INVALIDMEDIATYPE: The requested YUY2/640×480 combination may not be supported by your webcam. Use IMFSourceReader::GetNativeMediaType to enumerate supported media types and select a valid resolution and subtype before calling SetCurrentMediaType.
  • Black or corrupted first frame: Media Foundation buffers several frames on stream start. Discard the first 1–2 ReadSample results before displaying or passing frames to the barcode decoder.
  • RegisterClass fails with error 0x80070582 (class already registered): This happens when the process restarts without unregistering the window class. Call GetClassInfo before RegisterClass and skip registration if the class already exists, or ensure UnregisterClass is called in the destructor.

Source Code

https://github.com/yushulx/cmake-cpp-barcode-qrcode-mrz/tree/main/litecam
