Image Processing 101 Chapter 1.3: Color Space Conversion

Image Processing 101 Chapter 1.3: Color Space Conversion

In the last post, we discussed a few common color models, specifically RGB, HSV, and YUV. A color model is an abstract mathematical model that describes how colors can be represented as a set of numbers. In this post, we will look at how to convert them to grayscale. Grayscale is a range of gray shades from white to black, as used in a monochrome display or printout. Grayscale images are most commonly used in image processing because smaller data enables developers to do more complex operations in a shorter time.

1. Color to Grayscale Conversion

1.1 RGB to Grayscale

There are a number of commonly used methods to convert an RGB image to a grayscale image, such as average method and weighted method.

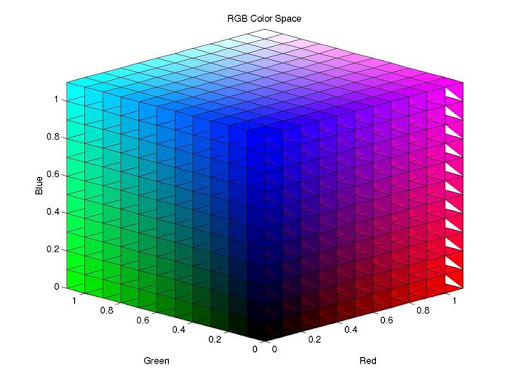

RGB color space

Average Method

The Average method takes the average value of R, G, and B as the grayscale value.

Grayscale = (R + G + B ) / 3

A minor note: Theoretically, the formula is 100% correct. But when writing code, you may encounter uint8 overflow error — the sum of R, G, and B is greater than 255. To avoid the exception, R, G, and B should be calculated, respectively.

Grayscale = R / 3 + G / 3 + B / 3

The average method is simple but doesn’t work as well as expected. The reason is that human eyeballs react differently to RGB. Eyes are most sensitive to green light, less sensitive to red light, and the least sensitive to blue light. Therefore, the three colors should have different weights in the distribution. That brings us to the weighted method.

The Weighted Method

The weighted method, also called the luminosity method, weighs red, green, and blue according to their wavelengths. The improved formula is as follows:

Grayscale = 0.299R + 0.587G + 0.114B

grayscale-weighted

1.2 YUV to Grayscale

YUV is a color encoding system used for analog television. The YUV color model represents the human perception of color more closely than the standard RGB model used in computer graphics hardware and is more size-efficient.

RGB to YUV Conversion

Y = 0.299R + 0.587G + 0.114B
U'= (B-Y)*0.565
V'= (R-Y)*0.713

The Grayscale Value

The formula for converting RGB to Y is the same as the formula for converting RGB to grayscale. Therefore:

Grayscale = Y

1.3 HSV to Grayscale

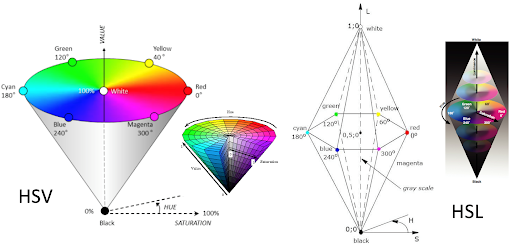

HSV (hue, saturation, value)  and HSL (hue, saturation, lightness or luminance) are transformations of a Cartesian RGB color space.

HSV to Grayscale

To convert HSV to grayscale, we first need to convert HSV to RGB and then convert the RGB triple to a grayscale value.

HSV to RGB conversion

When 0 ≤ H < 360, 0 ≤ S ≤ 1 and 0 ≤ V ≤ 1:
  C = V × S
  X = C × (1 - |(H / 60°) mod 2 - 1|)
  m = V - C
  (R,G,B) = ((R‘+m)×255, (G‘+m)×255, (B‘+m)×255)

The Grayscale Value

Grayscale = 0.299R + 0.587G + 0.114B

1.4 An example of RGB to grayscale using the weighted method

Here is an example of the grayscale conversion method used in a barcode scanner. As we can see in this image, the DataMatrix code on a Thai government lottery has red lines crossed over.

thai-government-lottery

The barcode scanner first converts the color image to grayscale and then binary. Using the average method, we get a grayscale image like this one:

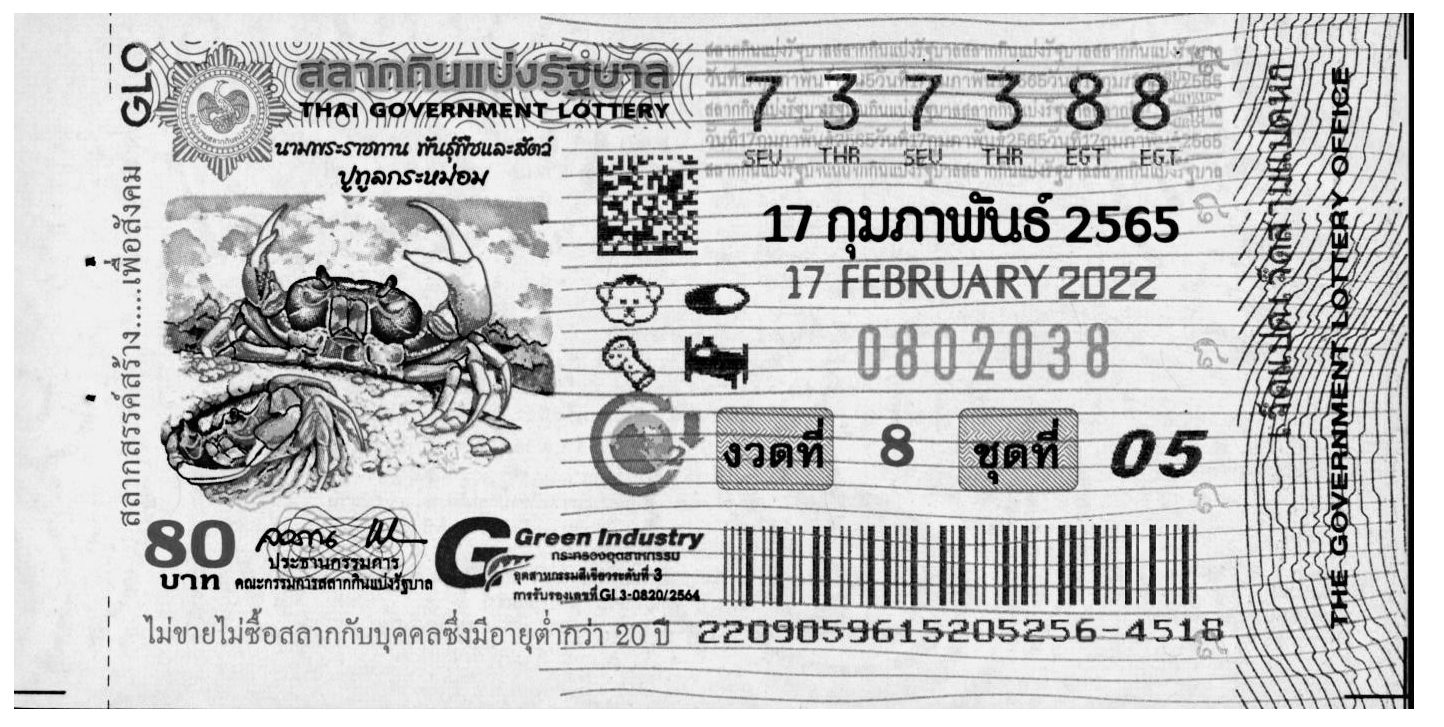

thai-government-lottery-average-gray

To further split the foreground (the DataMatrix code) from the white background with the red lines, let’s give a larger weight to the red channel.

Grayscale = 1*Red + 0*Green + 0*Blue

Here is the result. The red lines are lighter compared with the result from the average method, i.e., closer to white.

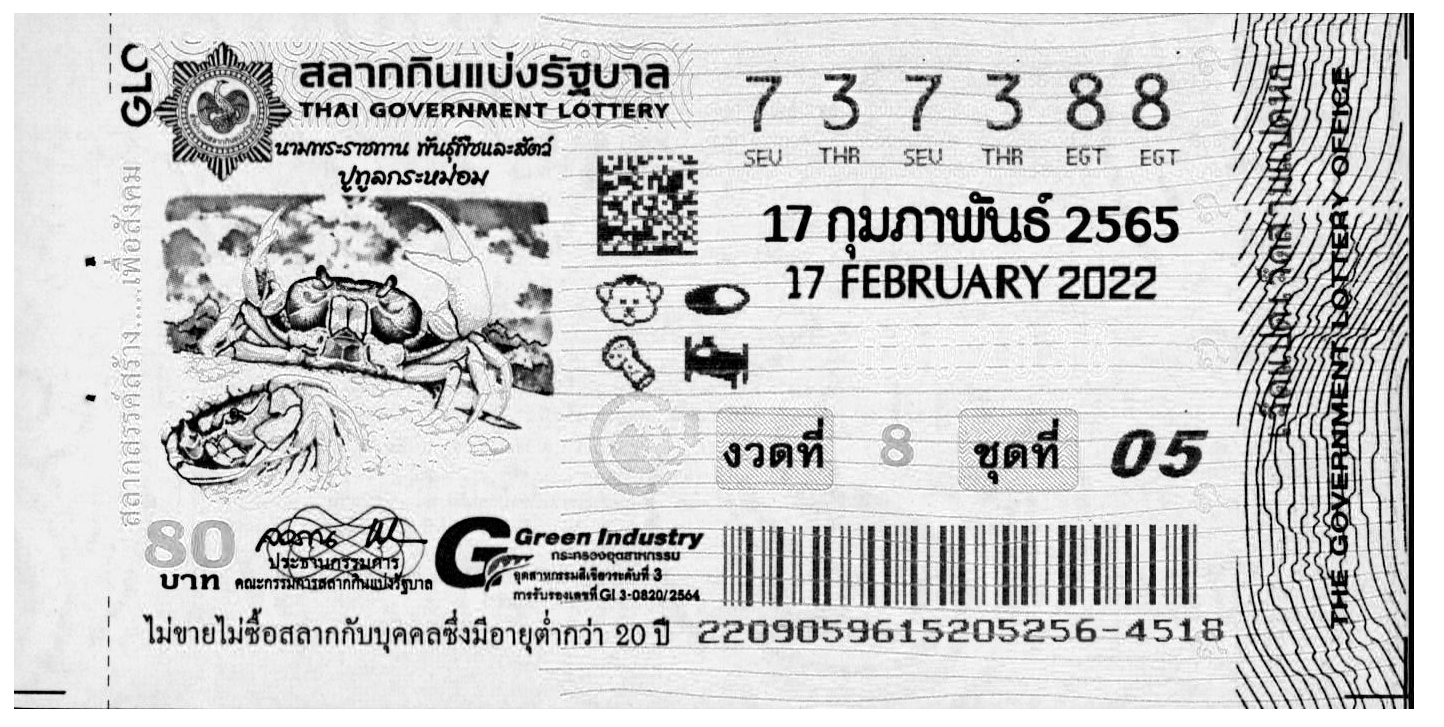

thai-government-lottery-weighted-gray

Source code used for testing

import cv2

RGB_image = cv2.imread("thai-government-lottery.png")
blue = RGB_image[:,:,0]
green = RGB_image[:,:,1]
red = RGB_image[:,:,2]
Average_Gray = blue/3+green/3+red/3
Weighted_Gray = (0 * blue) + (0* green) + (1 * red)

2. Binarization: Grayscale to black/white Conversion

Binarization converts a grayscale image to a black/white image. This transformation is useful in detecting blobs and further reduces the computational complexity. The critical task is to find a suitable threshold. There are two main methods:

  • Local thresholding — calculates the threshold pixel by pixel
  • Global thresholding — calculates the threshold once for all pixels

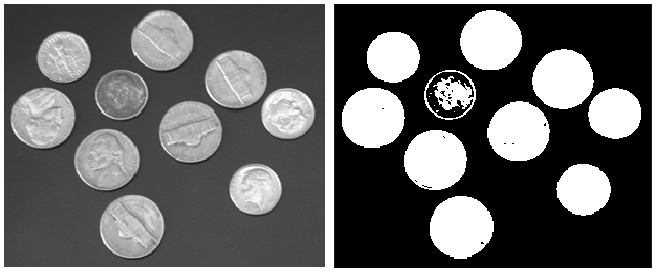

The images below show an example of before and after binarization.

gray image to black/white

2.1 Local Thresholding Method

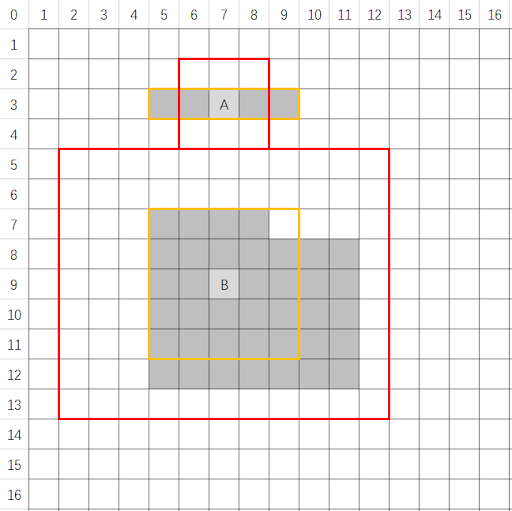

With the local thresholding method, a threshold is calculated at each pixel, which depends on some local statistics such as mean, range, and the variance of the pixel neighborhood. The image is divided into several sub-blocks, and the distribution of gray-value in each block was analyzed.

Local Thresholding Method

2.2 Global Thresholding Method

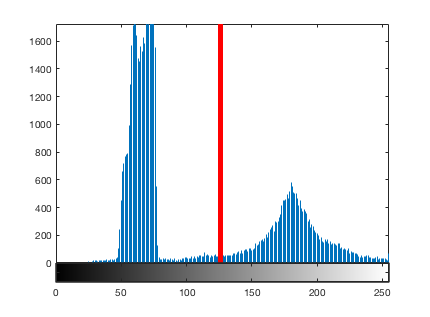

The global thresholding method takes advantage of the image histogram. The image histogram is a statistical graph with grayscale value on the x-axis and the number of pixels for each grayscale on the y-axis.

Global Thresholding Method

Image histogram can be used to automatically determine the value of the threshold to be used for converting a grayscale image to a binary image. The basic idea is to find a point between the peak of the foreground pixel values and the peak of the background pixel values. If the intensity level of a pixel is smaller than the threshold, the pixel is set to black (grayscale = 0). Otherwise, it is set to white (grayscale = 255). The threshold serves as a dividing line.

To learn more about imaging fundamentals, read the first article in the Image Processing 101 Series: What is an Image, Color Models.
