How to Scan Thousands of Document Pages Without Browser Crashes or Data Loss

Imagine this scenario: An operator at an insurance firm has just spent 20 minutes scanning a 500-page claim file. Suddenly, the browser freezes and crashes due to memory exhaustion. All that work is lost instantly. For developers building web-based document management systems, this is a nightmare. Browsers like Chrome and Edge have strict memory limits for tabs. When you try to hold hundreds of high-resolution images in memory (RAM), the browser tab will inevitably crash.

Dynamic Web TWAIN solves this problem elegantly with its Caching and Local Disk Storage features, enabling you to build applications that can handle thousands of pages in a single session with zero data loss.

This article is Part 3 in a 3-Part Series.

Demo Video: Local Disk Storage for Document Scanning

Prerequisites

The Problem: Browser Memory Limits

Web browsers are not designed to be heavy-duty image processing engines.

  • RAM Constraints: A standard browser tab has a memory ceiling (often around 2GB-4GB).
  • High-Res Images: A single A4 color scan at 300 DPI can be 25MB uncompressed. Scanning 100 pages can easily consume gigabytes of RAM.
  • The Result: As the user scans more pages, the application becomes sluggish and eventually crashes, wiping out all unsaved progress.

The Solution: Local Disk Caching and Storage

Dynamic Web TWAIN bypasses these browser limitations by intelligently offloading scanned data to the local hard drive instead of keeping everything in the browser’s volatile memory.

Understanding Caching vs. Local Storage

Dynamic Web TWAIN provides two complementary disk-based features:

Automatic Caching (No Code Required):

  • Handled automatically by Dynamic Web TWAIN
  • As you scan images, they’re transparently cached to disk without any developer intervention
  • Prevents memory overflow and browser crashes
  • Works out-of-the-box with zero configuration

Local Storage (Developer-Controlled via API):

  • Requires explicit API calls (covered in this guide)
  • Enables persistent storage across browser sessions
  • Provides data recovery and resume functionality for any interruption
  • Allows users to close the tab/browser and return later without data loss

Both features use the same encryption technology, but serve different purposes. This tutorial focuses on implementing Local Storage APIs to enable the persistent session and recovery capabilities.

Key Benefits

1. Unlimited Scanning Volume (Automatic)

By offloading image data to the local disk, your application is no longer bound by browser RAM limits. Users can scan 1,000, 2,000, or even 5,000 pages in a single batch. The only limit is the user’s hard drive space.

This benefit is automatic—no code needed beyond basic SDK initialization.

2. Session Recovery (Requires Local Storage API)

This is a game-changer for high-volume workflows. When you implement Local Storage, scanned images persist across sessions, protecting work in multiple scenarios:

  • Intentional tab/browser close (taking a break, end of workday)
  • Browser crash or freeze
  • Power outage or system restart
  • Accidental tab close

When the user returns and reopens the application, Dynamic Web TWAIN detects the existing session and automatically restores all previously scanned images. Work continues seamlessly from where they left off.

This requires implementing the Local Storage API (covered in the implementation section below).

3. Enterprise-Grade Security (Automatic)

For industries like banking and healthcare, writing data to disk raises security concerns. Dynamic Web TWAIN addresses this with built-in encryption for both automatic caching and local storage:

Encryption Architecture:

  • Each DWTObject generates its own random encryption key during initialization
  • Data undergoes compression and double encryption using AES-256-GCM and AES-128-GCM algorithms
  • Encryption follows DWT’s custom security rules before data is written to disk
  • The disk-based files (both cache and storage) can only be read by Dynamic Web TWAIN
  • Each DWTObject can only access its own data—isolation between different DWTObject instances is enforced
  • The encryption key exists only in memory and is destroyed when the DWTObject is released
  • Once the key is lost, the encrypted files become permanently unreadable
  • All files are automatically deleted when each DWTObject is destroyed

This ensures that sensitive documents remain secure and compliant (GDPR, HIPAA) even while stored temporarily on the client machine.

Step-by-Step Implementation Guide

Now let’s implement the Local Storage API to enable persistent sessions and data recovery.

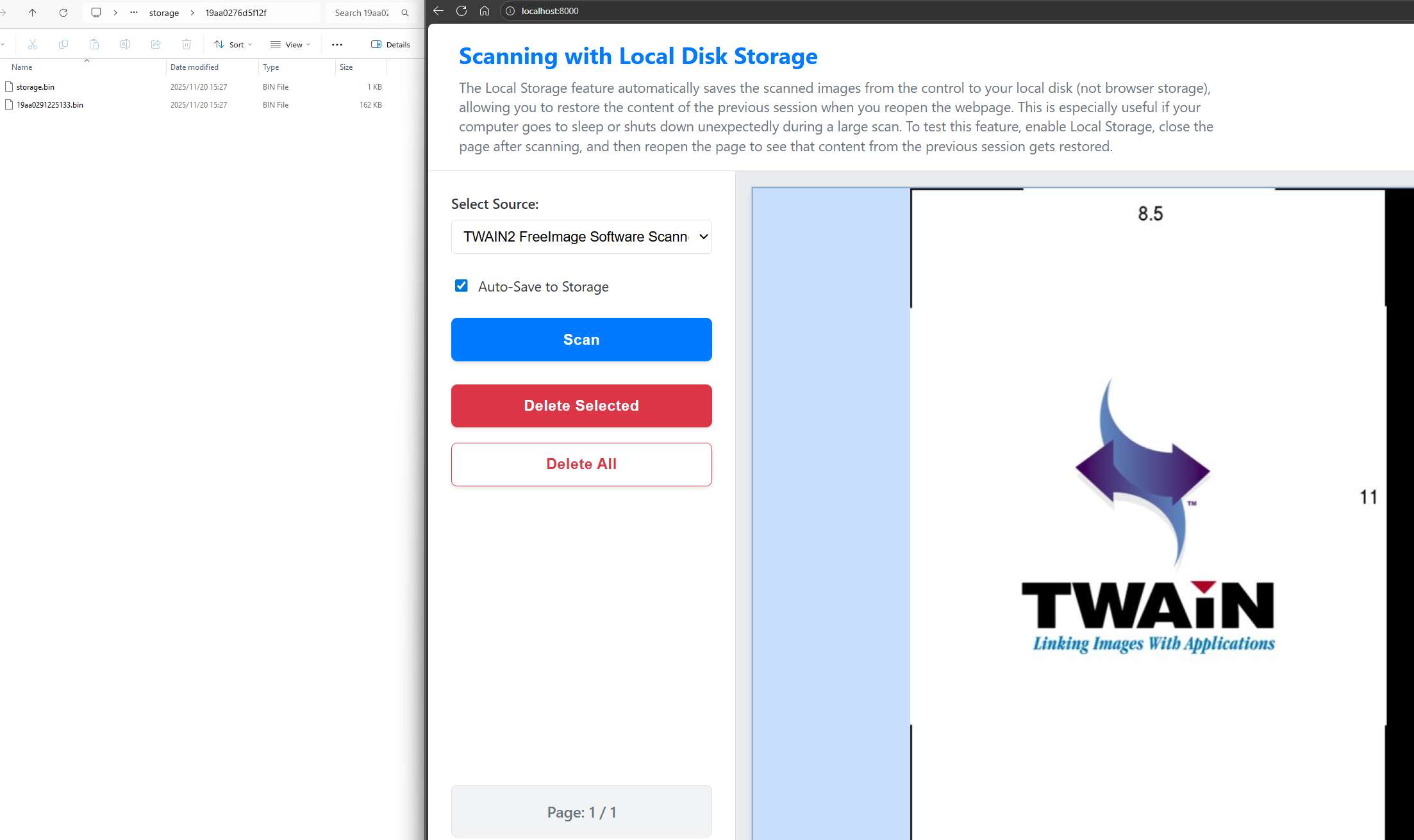

Web TWAIN local disk storage

Step 1: Initialize the SDK

First, include the Dynamic Web TWAIN library and configure the basic settings:

<script src="https://cdn.jsdelivr.net/npm/dwt@latest/dist/dynamsoft.webtwain.min.js"></script>
<script>
    Dynamsoft.DWT.ProductKey = "YOUR_LICENSE_KEY";
    Dynamsoft.DWT.ResourcesPath = 'https://cdn.jsdelivr.net/npm/dwt@latest/dist';
    Dynamsoft.DWT.Containers = [{
        ContainerId: 'dwtcontrolContainer',
        Width: '100%',
        Height: '100%'
    }];
    Dynamsoft.DWT.AutoLoad = true;
</script>

Step 2: Track Storage State

Define variables to track the local storage UID and preference:

var localStoreUid;
var storeName = 'DynamicWebTWAIN_LocalStorage';
var storeName_EnableAutoSaveStorage = 'DynamicWebTWAIN_EnableAutoSaveStorage';

The localStoreUid is a unique identifier for the storage session. We use browser’s localStorage (the standard key-value store) to persist this UID between page reloads.

Step 3: Initialize Storage Preference

On page load, check if the user had Local Storage enabled previously:

(function() {
    var checked = localStorage[storeName_EnableAutoSaveStorage];
    if (checked === "false") {
        localStoreUid = '';
        delete localStorage[storeName];
    } else {
        // Default to enabled
        localStoreUid = localStorage[storeName];
        localStorage[storeName_EnableAutoSaveStorage] = "true";
    }
})();

Step 4: Restore Previous Session

When the SDK is ready, check if a previous session exists and restore it:

var DWTObject;
Dynamsoft.DWT.RegisterEvent("OnWebTwainReady", function() {
    DWTObject = Dynamsoft.DWT.GetWebTwain('dwtcontrolContainer');

    if (DWTObject && isStorageEnabled()) {
        restoreStorage(); // Restore images from disk

        // Auto-save on any buffer change
        DWTObject.RegisterEvent('OnBufferChanged', Dynamsoft_OnBufferChanged);
    }
});

Step 5: Implement Save/Restore Logic

Here’s the core logic that handles both saving and restoring:

async function _saveOrRestoreStorage(bSave) {
    if (!isStorageEnabled()) return;

    try {
        // Check if storage already exists
        var ifExist = false;
        if (localStoreUid) {
            ifExist = await DWTObject.localStorageExist(localStoreUid);
        }

        if (ifExist && localStoreUid) {
            // Update or load from existing storage
            if (bSave) {
                await DWTObject.saveToLocalStorage({ uid: localStoreUid });
            } else {
                await DWTObject.loadFromLocalStorage({ uid: localStoreUid });
            }
        } else {
            // Create new storage
            localStoreUid = await DWTObject.createLocalStorage();
            localStorage[storeName] = localStoreUid; // Persist UID
            await DWTObject.saveToLocalStorage({ uid: localStoreUid });
        }
    } catch (ex) {
        console.error('Storage operation failed:', ex);
    }
}

async function saveStorage() {
    return _saveOrRestoreStorage(true);
}

async function restoreStorage() {
    return _saveOrRestoreStorage(false);
}

Key Points:

  • DWTObject.createLocalStorage() creates an encrypted storage area on disk and returns a unique ID.
  • DWTObject.saveToLocalStorage({ uid }) writes the current image buffer to disk.
  • DWTObject.loadFromLocalStorage({ uid }) reads the images back into the buffer.
  • The UID is stored in browser’s localStorage so we can reference the same disk storage after page reload.

Step 6: Auto-Save on Buffer Changes

Automatically save whenever images are added or removed:

function Dynamsoft_OnBufferChanged(p1) {
    if (isStorageEnabled() && p1) {
        // Skip internal operations
        if (p1.action === 'shift' || p1.action === 'filter') return;

        saveStorage(); // Persist to disk
    }
}

The OnBufferChanged event fires whenever the image buffer is modified (scan, delete, etc.). We hook into this to keep the disk storage in sync.

Step 7: Cleanup on Disable

When the user disables Local Storage, clean up the disk storage:

function removeStorage() {
    DWTObject.UnregisterEvent('OnBufferChanged', Dynamsoft_OnBufferChanged);

    if (localStoreUid) {
        var _localStoreUid = localStoreUid;
        localStoreUid = '';
        delete localStorage[storeName];

        DWTObject.localStorageExist(_localStoreUid).then(function(ifExist) {
            if (ifExist) {
                DWTObject.removeLocalStorage({ uid: _localStoreUid });
            }
        });
    }
}

Where are the Files Stored?

The encrypted image files are stored in the Dynamic Web TWAIN service directory on the user’s machine:

Windows:

C:\Program Files (x86)\Dynamsoft\Dynamic Web TWAIN Service {versionnumber}\storage

macOS:

/Users/{username}/Applications/Dynamsoft/Dynamic Web TWAIN Service {versionnumber}/storage

Linux:

/opt/dynamsoft/Dynamic Web TWAIN Service {versionnumber}/storage

Source Code

https://github.com/yushulx/web-twain-document-scan-management/tree/main/examples/local_storage
